Crosswater Union WRAS Approved 2 Outlet Concealed Thermostatic Bath Shower Valve with Wheels & Shower Handset - Matt Black

No reviews yet - Write one

RRP £1,294.00 save 25%

£969.99

Estimated delivery 3-7 working days Help?

Too long to wait? View similar products with next day shipping

FREE standard delivery*. Read full delivery info

Klarna
Pay 3 interest-free instalments of £323.33 with Klarna Learn more about Klarna
Clearpay
Pay 4 interest-free instalments of £242.50 with Clearpay Learn more about Clearpay

What's great about it?

  • Matt Black finish
  • WRAS approved two outlet valve with wheel controls
  • Includes matching shower handset with easy clean nozzles & hose
  • Thermostatic temperature control keeps the temperature just where you set it
  • Pre-set maximum temperature to prevent scalding
  • Minimum 0.2 bar water pressure required
  • 15 year guarantee from Crosswater

Read full product description

Recommended extras

We've hand-picked these items because they are a great choice alongside the Crosswater Union WRAS Approved 2 Outlet Concealed Thermostatic Bath Shower Valve with Wheels & Shower Handset - Matt Black

Crosswater Union 2 Outlet Concealed Thermostatic Bath Shower Valve with Wheels & Shower Handset - Matt Black


Features:
• Striking matt black finish
• WRAS approved concealed shower valve - click here to read about the WRAS scheme and why it matters
• Includes matching shower handset with easy clean nozzles and shower hose
• Thermostatic control keeps the temperature where you set it, even if the pressure fluctuates
• Pre-set maximum temperature of 42°C to prevent accidental scalding
• 2 outlet valve - ideal for use with a Crosswater Union 250mm Fixed Shower Head & matching shower arm or a Crosswater Union matt black bath spout
• The left wheel controls which outlet the water is going to and the right wheel controls the temperature
• Landscape orientation only
• Minimum 1 bar water pressure required
• 15 year guarantee from Crosswater (subject to online registration - please click here)

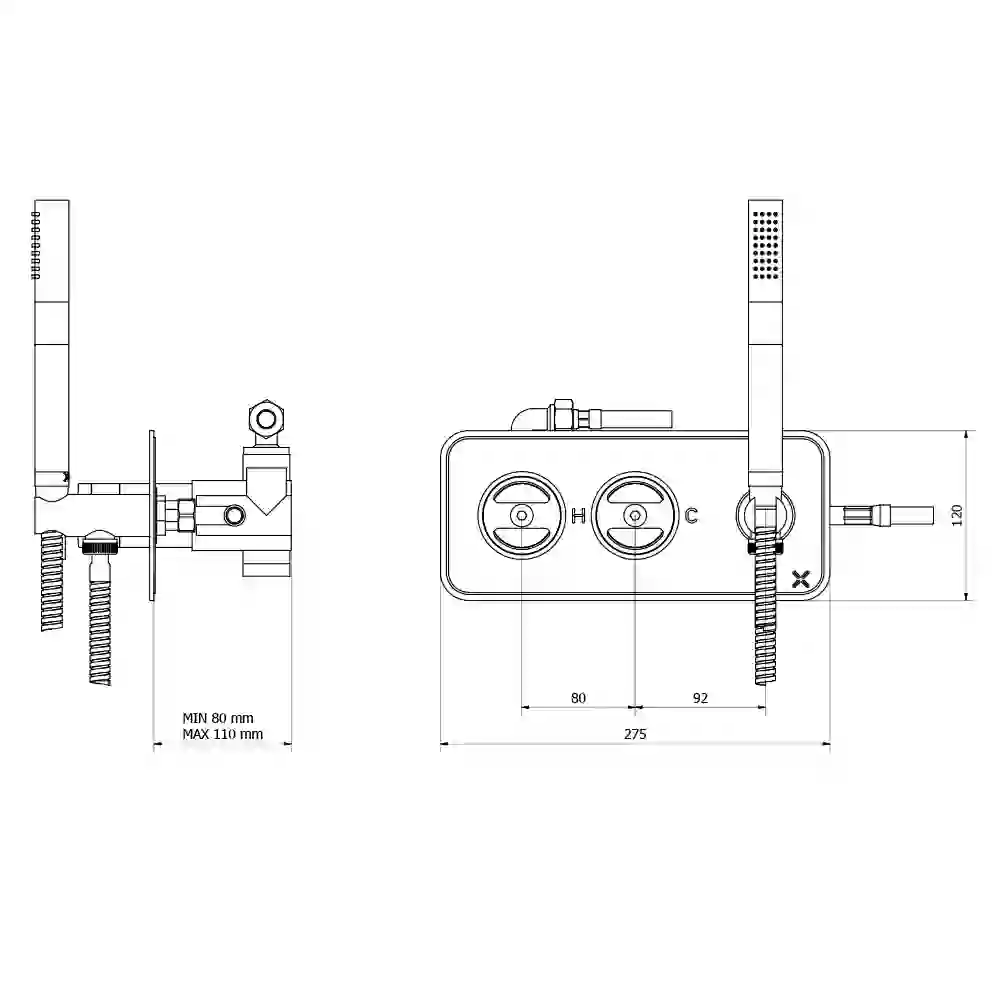

Backplate Dimensions:
• Height: 120mm
• Width: 275mm

WRAS Approved
Product Code UB1701LBPM-WLBP1501R+
Type Concealed Shower Valves, Concealed Bath Valves, Concealed Shower Sets & Valves
Global Trade Item Number 5055833687503
Width (mm) 275
Height (mm) 120
Brand Crosswater
Brand Range Crosswater Union
Number of OutletsMore information 2 Outlets
Shape Rectangular
Mounting Type Wall Mounted
Popular Features WRAS Approved, Ceramic Disc Technology
Finish Matt Black
Promotions New
Style Modern
Minimum Water PressureMore information 1
GuaranteeMore information 15 Years
Orientation Landscape
Handle Type Wheel, Dual Control
Temperature Control Thermostatic
Flow Rate at 0.2 Bar (l/min) 8.1
Flow Rate at 0.5 Bar (l/min) 11.9
Flow Rate at 1 Bar (l/min) 14.4
Flow Rate at 2 Bar (l/min) 22.5
Flow Rate at 3 Bar (l/min) 28

This indicates how many water outlets you can pair with your shower valves. Choosing valves with more outlets will give you flexibility over the number of products you can add to your shower.

Each outlet from your shower valve will divert water to the section of your shower that needs it, so each extra outlet allows you to add another product. For example: with 1 outlet you could have just a fixed shower head. 2 outlets will allow you to have a fixed shower head and shower handset. 3 will allow both of these with the addition of a body jet.

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.

Guarantee

Please note that these guarantees are provided by the manufacturer, and will be subject to individual terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.
