Vado Phase Concealed Manual Shower Valve - 1 Outlet

No reviews yet - Write one

Loading delivery estimate...

Klarna
Pay 3 interest-free instalments of £64.33 with Klarna Learn more about Klarna
Clearpay
Pay 4 interest-free instalments of £48.25 with Clearpay Learn more about Clearpay

What's great about it?

  • Stylish concealed manual shower valve
  • Designed to control 1 outlet
  • Single lever design to control the temperature and water flow
  • Chrome plated finish
  • 15 year guarantee

Full details

The Drench difference

3D Design Service

We've helped thousands of customers create their dream space. More

Free consultations

Book a chat with our bathroom experts. More

Rated 'Excellent'

Delighting customers for 10+ years. See reviews

90 days to change your mind

+ optional specialist collection service. See policy

Free delivery over £500

Standard delivery to most of UK, plus discounted next day rates too. See policy

The Phase concealed shower valve has been stylishly designed to operate one of your water outlets. Pair with your luxury fixed shower head, shower handset or bath filler, and control the water flow and temperature with the single lever.

Using ceramic disc technology makes the lever incredibly smooth and easy to use, giving you more precise control. Vado also offers a 15 year guarantee against product defects for your peace of mind.

Features:
  • Manual concealed shower valve to control 1 outlet
  • Chrome finish
  • Ceramic disc cartridge technology
  • 1.5 bar minimum water pressure required for bath
  • 0.2 bar minimum water pressure required for shower usage
  • 15 year guarantee

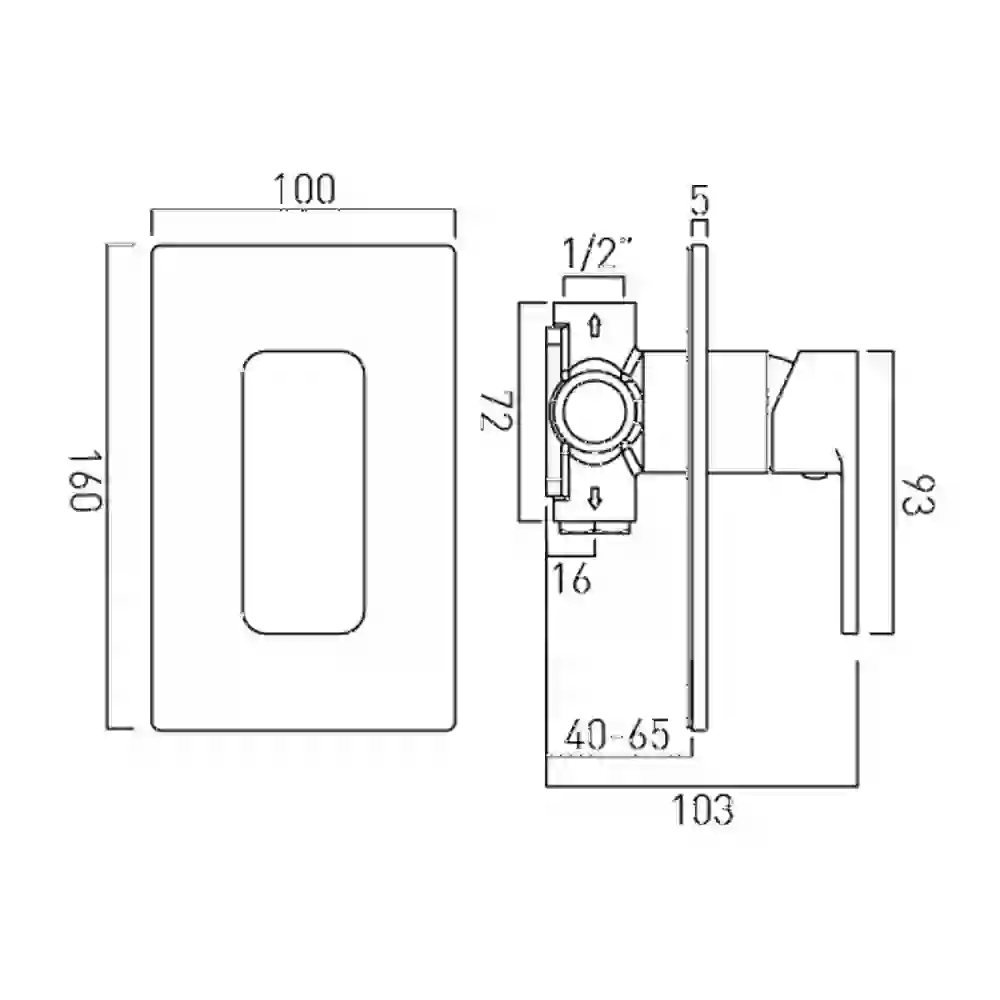

Dimensions:
  • Width: 100mm
  • Height: 160mm
  • Total depth 103mm
  • Min-max wall mount 49-70mm
  • Optimum installation depth 60mm
  • x2 Female inlets
  • x1 Female outlets

Product Overview
Product Code PHA-145A-C/P
Type Concealed Shower Valves
Brand Vado
Brand Range Vado Phase
GuaranteeMore information 15 Years

Guarantee

Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.

Features
Number of OutletsMore information 1 Outlet
Material Brass
Temperature Control Manual

This indicates how many water outlets you can pair with your shower valves. Choosing valves with more outlets will give you flexibility over the number of products you can add to your shower.

Each outlet from your shower valve will divert water to the section of your shower that needs it, so each extra outlet allows you to add another product. For example: with 1 outlet you could have just a fixed shower head. 2 outlets will allow you to have a fixed shower head and shower handset. 3 will allow both of these with the addition of a body jet.

Style
Shape Square
Mounting Type Wall Mounted
Finish Texture Polished
Finish Chrome
Style Modern
Orientation Portrait
Handle Type Lever, Single Control
Dimensions
Width (mm) 100
Height (mm) 160
Depth (mm) 103
Flow Rate
Minimum Water PressureMore information 0.2

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
