Features:
- Pairs with standalone douche handsets so you can safely turn off the water between uses
- Versatile design also works as a shut-off valve for exposed toilet feeds or wall-hung basins
- Lever handle is easy to grip, with 90° rotations turning the water supply fully on or off
- Ceramic disc technology keeps the handle turning smoothly and stops dripping
- Built-in filter prevents blockages to keep your handset or toilet feed running smoothly
- Includes a 60mm circular wall cover plate to neatly conceal the wall cutout
- Brass construction naturally resists rust and corrosion for lasting bathroom durability
- PVD coating offers superior tarnish and scratch resistance to maintain its appearance
- Low-maintenance surface easily wipes clean with a soft, damp cloth to preserve its sheen
- Choice of finishes to coordinate with decor or match the wider Vado Individual range
- Equipped with a standard 1/2" threaded inlet for wall pipework and a 1/2" outlet for hoses
- Includes a 15 year manufacturer’s guarantee, subject to simple online registration
 Installation Instructions
|
|---|
| Product Code | individual-angle-valve-pv |
|---|---|
| Type | On/Off Valves |
| Brand | Vado |
| Brand Range | Vado Individual |
| Guarantee |
15 Years |
| Global Trade Item Number | Select an option first |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Cartridge Type |
Ceramic Disc |
|---|---|
| Number of Outlets |
1 Outlet |
| Material | Brass |
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.
Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.
Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
This indicates how many water outlets you can pair with your shower valves. Choosing valves with more outlets will give you flexibility over the number of products you can add to your shower.
Each outlet from your shower valve will divert water to the section of your shower that needs it, so each extra outlet allows you to add another product. For example: with 1 outlet you could have just a fixed shower head. 2 outlets will allow you to have a fixed shower head and shower handset. 3 will allow both of these with the addition of a body jet.
| Shape | Round |
|---|---|
| Mounting Type | Wall Mounted |
| Style | Modern |
| Handle Type | Lever, Single Control |
| Finish Texture | Select an option first |
| Finish | Select an option first |

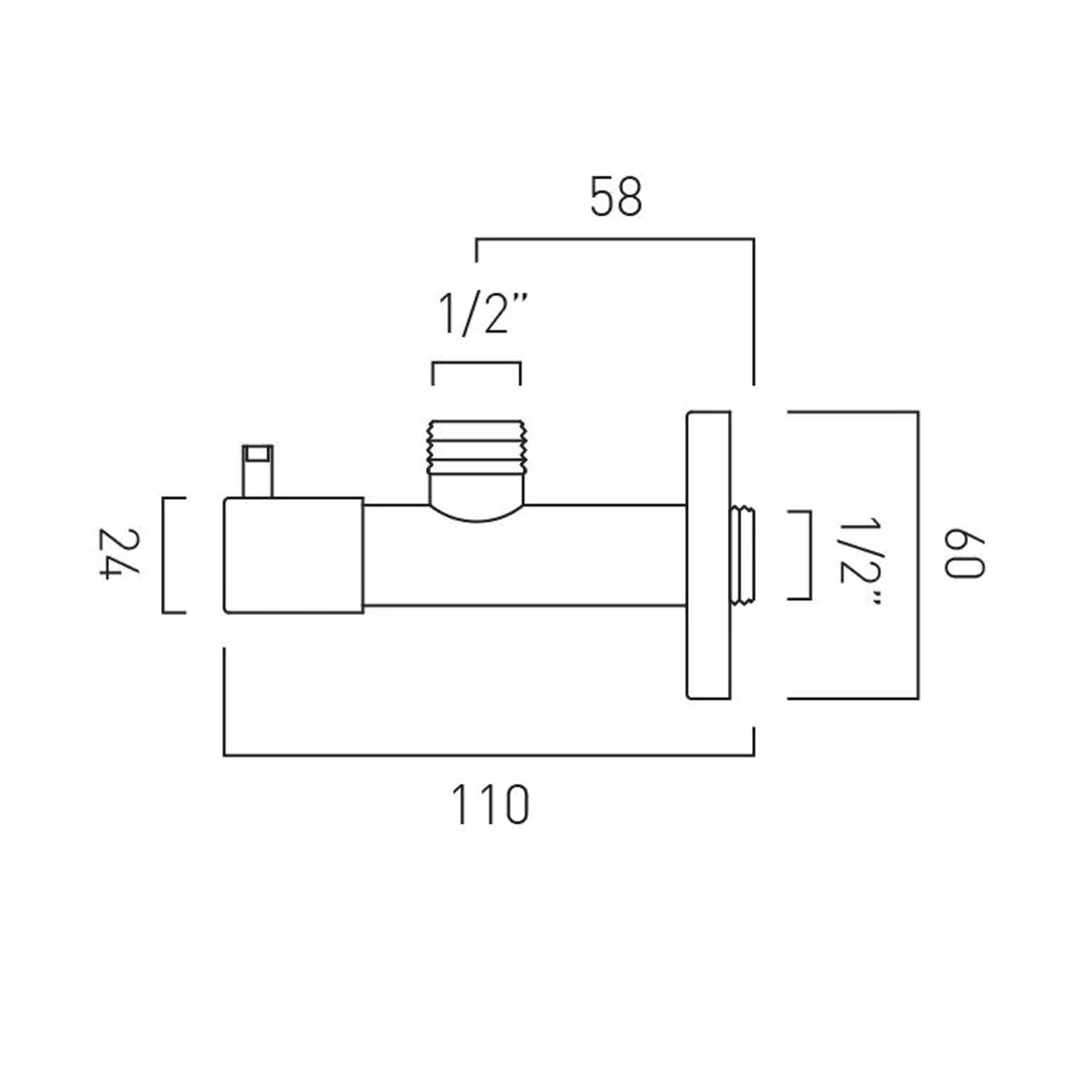

| Width (mm) | 60 |
|---|---|
| Height (mm) | 60 |
| Depth (mm) | 110 |
| Minimum Water Pressure |
0.2 |
|---|
Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.
- With a combi boiler you can usually expect between 1 and 2 bar
- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs
- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar
You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
