Ideal Standard Ceraplan Basin Pillar Taps

No reviews yet - Write one

RRP £178 save 42%

£103.99 was £129.99

Loading delivery estimate...

Klarna
Pay 3 interest-free instalments of £34.66 with Klarna Learn more about Klarna
Clearpay
Pay 4 interest-free instalments of £26.00 with Clearpay Learn more about Clearpay

What's great about it?

  • High quality chrome plated brass finish for a modern design
  • Suitable for low-pressure water systems
  • Features ceramic disc technology to help prevent water dripping
  • 5 year manufacturer's guarantee

Read full product description

Offer

Recommended extras

We've hand-picked these items because they are a great choice alongside the Ideal Standard Ceraplan Basin Pillar Taps

Features:
  • Made from brass with a chrome plated finish to add a modern touch to your bathroom
  • Suitable for low-pressure water systems allowing you to utilize and maximise the potential of your water configuration
  • WRAS approved - this product is certified in compliance with the Water Regulations Advisory Scheme. To find out more information of the WRAS approval scheme, please see our blog post here
  • Features ceramic disc technology to help prevent dripping and makes operation of the tap much easier. Ceramic discs are reliable and built to last a lifetime
  • 5 year manufacturer's guarantee

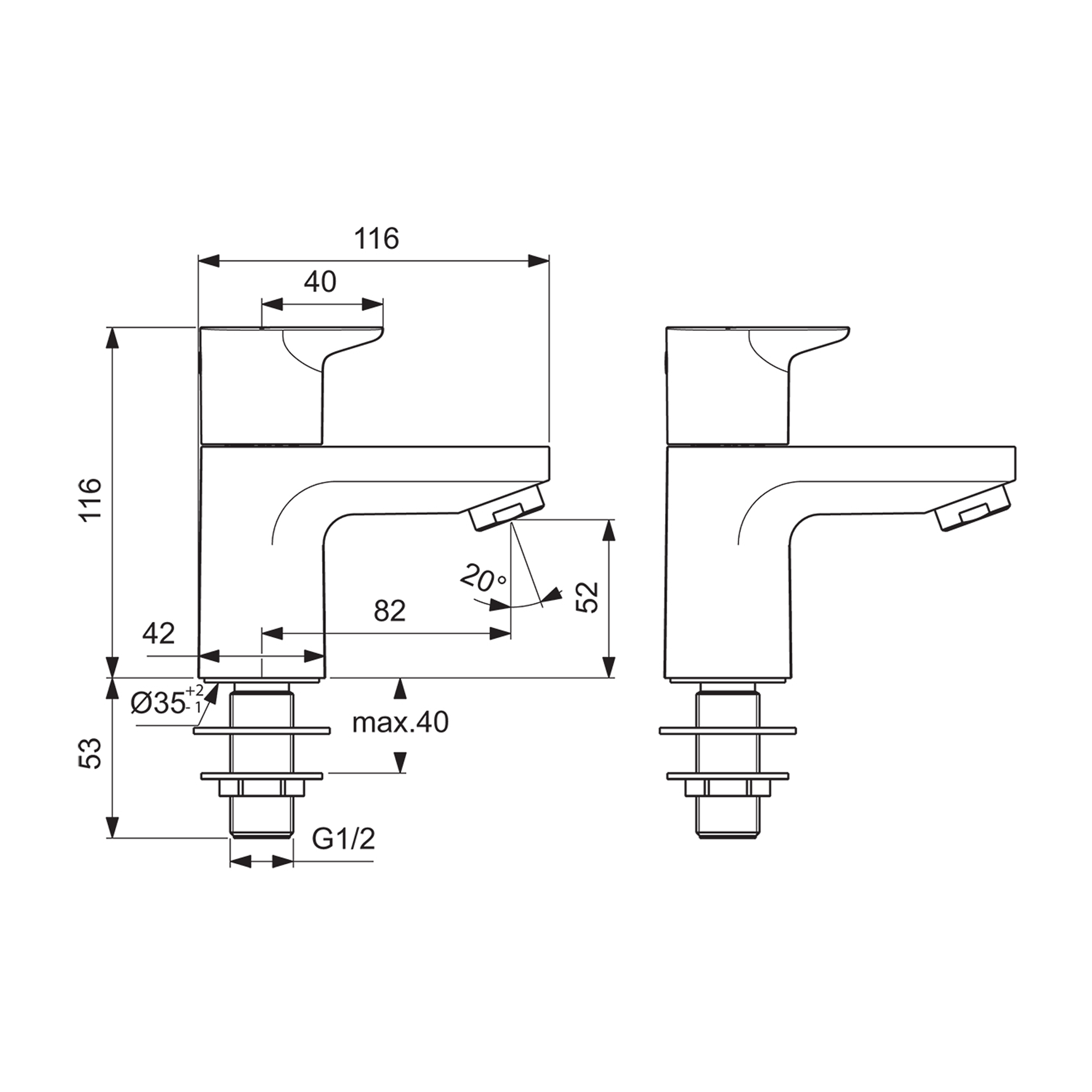

Dimensions:
  • Height: 116mm
  • Width: 42mm
  • Depth: 116mm
  • Projection: 82mm

Downloads
PDF Product PDF
Product Overview
Product Code BD247AA
Global Trade Item Number 3800861103882
Type Basin Pillar Taps
Brand Ideal Standard
Brand Range Ideal Standard Ceraplan
GuaranteeMore information 5 Years

Guarantee

Please note that these guarantees are provided by the manufacturer, and will be subject to individual terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.

Features
Cartridge TypeMore information Ceramic Disc
AeratorMore information No
Popular Features WRAS Approved
Material Brass
Temperature Control Manual

Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.

Tap aerators are simple but beautifully-engineered devices that save water and money without a perceived loss of pressure. These small attachments are inserted inside the end of the spout and provide a regulated, smoothed and aerated flow of water by separating a single flow into many tiny streams. These streams mix with air as they flow from the tap, meaning less water is needed to achieve the same 'feel' and performance as non-aerated taps.

They can also be purchased separately and retrofitted to most taps, or they can usually be uninstalled if not wanted. They're a great benefit on high pressure systems where the full flow of water is unnecessary, cutting your water bills and helping to reduce wastage. On lower-pressure systems they can help to improve the performance of a tap by adding air to the limited flow of water available. All-in-all, they're pretty awesome.

Style
Shape Square, Curved
Mounting Type Deck Mounted
Finish Texture Polished
Finish Polished Chrome, Chrome
Style Modern
Tap Holes 2 Holes
Handle Type Dual Control, Lever, Square
Spout TypeMore information Fixed Spout, Straight Spout

Tap spouts are available in a variety of different styles which have an effect on both the look and function of your tap. Different spout types will have different heights and projections, so it’s important to choose one which will complement your basin or bath.

Dimensions
Width (mm) 42
Height (mm) 116
Depth (mm) 116
Projection (mm) 82
Flow Rate
Flow Rate at 0.1 Bar (l/min) 6
Flow Rate at 0.2 Bar (l/min) 9
Flow Rate at 0.5 Bar (l/min) 14.5
Flow Rate at 1 Bar (l/min) 20.6
Flow Rate at 1.5 Bar (l/min) 24.5
Flow Rate at 2 Bar (l/min) 29.3
Flow Rate at 3 Bar (l/min) 36
Flow Rate at 4 Bar (l/min) 41.5
Flow Rate at 5 Bar (l/min) 46
Minimum Water PressureMore information 0.1

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
