Hudson Reed Revolution Industrial 3 Outlet Push Button Concealed Thermostatic Shower Valve

No reviews yet - Write one

RRP £593.00 save 56%


Estimated delivery 3-7 working days Help?

Too long to wait? View similar products with next day shipping

Delivery from £3.99. Spend £500+ for free delivery*. Read full delivery info

Pay 3 interest-free instalments of £86.66 with Klarna Learn more about Klarna
Pay 4 interest-free instalments of £65.00 with Clearpay Learn more about Clearpay

What's great about it?

  • 3 outlet shower valve
  • Chrome finish and brass construction
  • Minimum water pressure 1 bar
  • Made in the UK
  • 20 year manufacturers guarantee

Read full product description

Recommended extras

We've hand-picked these items because they are a great choice alongside the Hudson Reed Revolution Industrial 3 Outlet Push Button Concealed Thermostatic Shower Valve

Hudson Reed Revolution Industrial 3 Outlet Push Button Concealed Thermostatic Shower Valve

• 3 Outlet shower valve
• Chrome finish
• Push button control - instant stop/start
• Accurate flow control
• Full thermostatic protection, prevents scalding water in the event of hot or cold water being shut off
• Strong flow rates, please see specification
• Ceramic disc (1/4 turn), highly resistant to calcium build up
• Wheel control
• High quality brass trim
• Portrait mounted
• Minimum water pressure of 3 bar
• Made in the UK
• 20 year manufacturer's guarantee

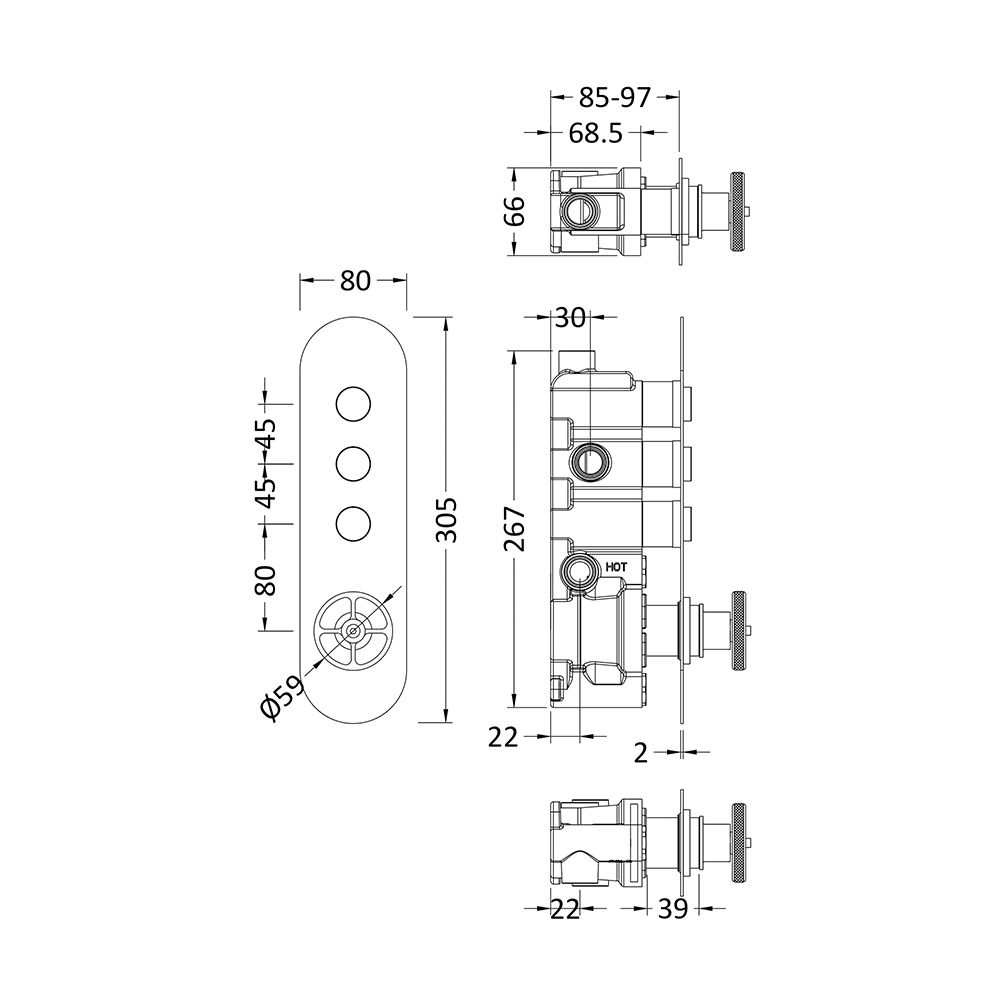

Height: 305mm
Width: 80mm
Depth: 135mm
Product Code CPB4312
Type Concealed Shower Valves
Global Trade Item Number 5056211855187
Width (mm) 80
Height (mm) 305
Depth (mm) 135
Brand Hudson Reed
Brand Range Hudson Reed Revolution
Number of OutletsMore information 3 Outlets
Shape Curved
Mounting Type Wall Mounted
Material Brass
Cartridge TypeMore information Ceramic Disc
Finish Chrome
Style Modern
Minimum Water PressureMore information 3
GuaranteeMore information 20 Years
Orientation Portrait
Handle Type Round
Temperature Control Thermostatic
Flow Rate at 3 Bar (l/min) 28

This indicates how many water outlets you can pair with your shower valves. Choosing valves with more outlets will give you flexibility over the number of products you can add to your shower.

Each outlet from your shower valve will divert water to the section of your shower that needs it, so each extra outlet allows you to add another product. For example: with 1 outlet you could have just a fixed shower head. 2 outlets will allow you to have a fixed shower head and shower handset. 3 will allow both of these with the addition of a body jet.

Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.


Please note that these guarantees are provided by the manufacturer, and will be subject to individual terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.
