£279.99
Recommended extras
We've hand-picked these items because they are a great choice alongside the Hudson Reed Ignite Square Two Outlet Push Button Concealed Shower Valve
Features:
Dimensions:
- Concealed thermostatic two outlet shower valve with beautiful geometric styling
- Made in the UK
- Easy to use push button controls - instant stop/start activation at the push of a button
- Separate temperature control dial so you can activate your shower at your preferred temperature
- Each button turns on/off a different outlet - with the 2 buttons you can have both outlets on at the same time for a warming and relaxing shower experience
- Thermostatic safety valve maintains the water temperature and prevents accidental scalding
- Stain and rust resistant
- Ideal for use with an overhead shower and a slide rail kit or luxurious body jets - sold separately
- Made from brass with a polished Chrome finish
- Minimum required water pressure: 2 bar (required to operate 2 outlets at the same time)
- Shower outlets sold separately
- 20 year manufacturers guarantee

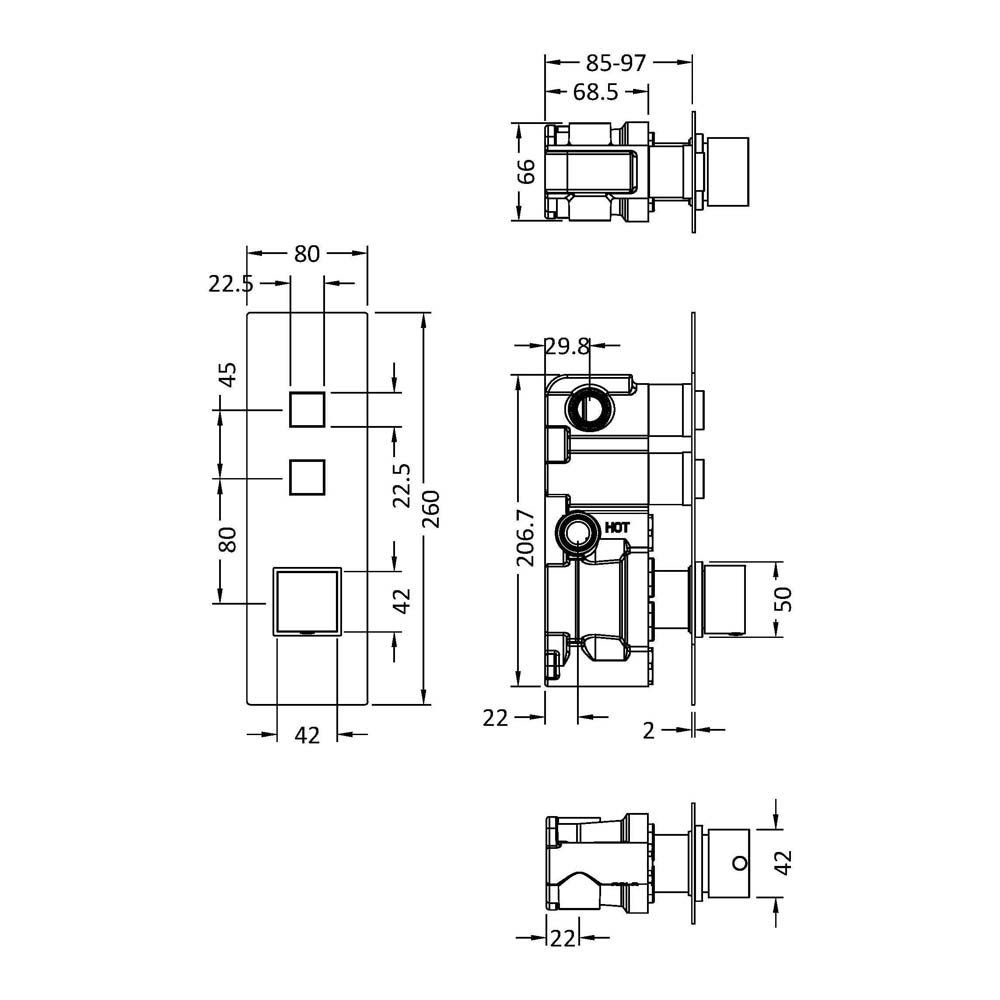

Dimensions:
- Height: 261mm
- Depth: 135mm
- Width: 80mm
- Pipe size: 15mm (1/2" BSP)
| Product Code | CPB3311 |
|---|---|
| Global Trade Item Number | 5056211804260 |
| Type | Concealed Shower Valves |
| Brand | Hudson Reed |
| Brand Range | Hudson Reed Ignite |
| GuaranteeMore information | 20 Years |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Number of OutletsMore information | 2 Outlets |
|---|---|
| Material | Brass |
| Temperature Control | Thermostatic |
This indicates how many water outlets you can pair with your shower valves. Choosing valves with more outlets will give you flexibility over the number of products you can add to your shower.
Each outlet from your shower valve will divert water to the section of your shower that needs it, so each extra outlet allows you to add another product. For example: with 1 outlet you could have just a fixed shower head. 2 outlets will allow you to have a fixed shower head and shower handset. 3 will allow both of these with the addition of a body jet.
| Shape | Square |
|---|---|
| Mounting Type | Wall Mounted |
| Finish Texture | Polished |
| Finish | Chrome |
| Style | Modern |
| Orientation | Portrait |
| Handle Type | Square, Push Button, Single Control |
| Width (mm) | 80 |
|---|---|
| Height (mm) | 260 |
| Depth (mm) | 135 |
| Flow Rate at 2 Bar (l/min) | 19.7 |
|---|---|
| Flow Rate at 3 Bar (l/min) | 24.9 |
| Minimum Water PressureMore information | 2 |
Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.
- With a combi boiler you can usually expect between 1 and 2 bar
- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs
- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar
You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
