Features:
- Aluminium construction delivering rapid heat-up times and efficient, responsive everyday heating performance
- Oval panel ladder design blends soft sculpted curves with structured vertical lines for a refined, contemporary aesthetic
- Vertical form enhances wall space while maintaining a light, open bathroom feel
- Lightweight aluminium construction for easier installation and improved handling during fitting
- Engineered to deliver consistent ambient warmth across the rail for everyday comfort
- Ideal for modern bathrooms where design detail and functional performance are equally important
- Available in textured white and textured anthracite finishes for a refined contemporary look
- Use our BTU Calculator to select the correct size and heat output for your space
- Dual fuel compatible for flexible use with an element and T-piece (available separately in our recommended extras)
- For a more considered installation finish, co-ordinating dual fuel kits are also available as a convenient bundle
- Tested to BS EN 442 (ΔT70) standards for certified performance, safety and quality
- Tested up to 10 bar for reliable system operation
- Maximum working temperature of 95°C for stable heat delivery
- Standard ½" connections for UK system compatibility

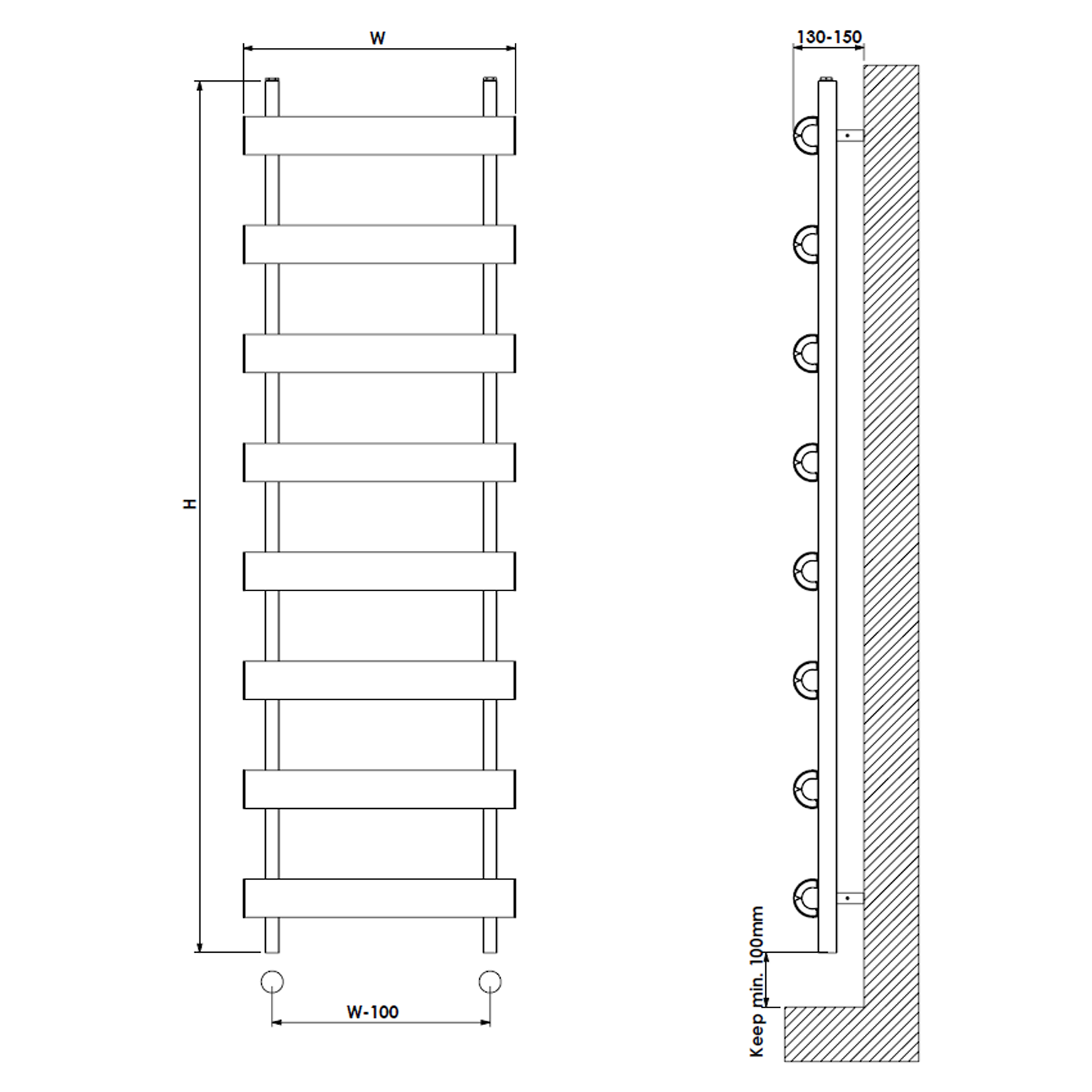

- Pipe centres of 400mm for accurate installation alignment
- Wall to centre tapping of 70mm for precise fitting
- Wall to face measurement of 130mm for balanced installation depth
- Supplied with wall brackets and fixings for straightforward installation
- Backed by a 5 year manufacturer’s guarantee
 Installation Instructions
|
|---|
| Product Code | carisa-moon-ver-heated-towel-rad |
|---|---|
| Type | Designer Heated Towel Rails, Dual Fuel Heated Towel Rails, Flat Towel Rails, Heated Towel Rails, Ladder Towel Rails |
| Brand | Carisa |
| Brand Range | Carisa Moon |
| GuaranteeMore information | 5 Years |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Popular Features | Dual Fuel Compatible |
|---|---|
| Material | Aluminium |
| Number of Sections | Select an option first |
| Number of Tubes | Select an option first |
| Number of Gaps | Select an option first |
| Shape | Oval, Rectangular, Straight |
|---|---|
| Mounting Type | Wall Mounted |
| Style | Modern |
| Orientation | Vertical |
| RAL Code | Select an option first |
| Finish Texture | Select an option first |
| Finish | Select an option first |
| Wall to Face (mm)More information | 130 |
|---|---|
| Wall to Pipe Centres (mm)More information | 70 |
| Wall Distance (mm)More information | 50 |
| Depth (mm) | 130 |
| Projection (mm) | 130 |
| Width (mm) | Select an option first |
| Height (mm) | Select an option first |
| Pipe Centres (mm) | Select an option first |
Wall to face is the distance from the wall to the furthest point on the front of the radiator. This figure is an indicator of how far your product will protrude into the room.
This measurement will show you how far from the wall the centre of the pipes for your radiator will need to be. It is an indication of how far away the pipe inlets for the radiator need to be from the wall which is useful if you are looking to install a radiator using your existing pipework.
This is a measure of the gap between the back of the radiator and the wall. Wall distance is an indication of how much space there will be behind your radiator.
| Fuel SourceMore information | Central Heating, Dual Fuel |
|---|---|
| Heat Output (BTU∆t 50ºC) | Select an option first |
| Heat Output (Watts∆t 50ºC) | Select an option first |
| Heat Output (BTU∆t 30ºC) | Select an option first |
This is the source of fuel your radiator or towel rail will use to provide heat. Radiators will generate heat through central heating systems, electricity, or a combination of both with dual fuel.
Central Heating:
These radiators will generate heat through the water pumped round your central heating system.
Electric:
Electric radiators contain fluid heated by an electrical element. They plug into a socket or are wired directly into the mains.
Dual Fuel:
Dual fuel radiators are able to run on both central heating and electric power. They contain a ‘summer’ heating element which will allow you to use your radiator in warmer months without needing to turn on your entire central heating system.
