Features:
- Single-outlet setup is ideal for powering a rainfall shower head, a handset or a regular bath filler
- Concealed valve hides pipework for a clean look that maximises space in compact enclosures
- Ergonomic crosshead handle provides a secure grip, making it simple to adjust the temperature
- Ceramic lever turns with a lighter touch for easy control of water flow, even with wet hands
- Thermostatic control stops sudden scalding or freezing temperatures to keep you comfortable
- Features a pre-set 38°C stop to protect you and your family from turning the water up too hot
- Ceramic disc cartridges keep the handles turning smoothly and stop dripping
- Solid brass construction naturally resists corrosion, maintaining its structural integrity over time
- Electroplated coating creates a durable and resilient barrier that shields from rust and tarnishing
- Each piece has been hand-finished to ensure a flawless lustre that showcases its craftsmanship
- Choice of 4 finishes to coordinate with your decor or match the wider Booth & Co Axbridge range
- Requires just 0.2 bar pressure to run a shower and 1.0 bar pressure if connected to a bath filler
- Complete with all internal parts and faceplate for a straightforward wall-mounted installation
- Shower head and handset sold separately, see our recommended extras for compatible options
- Includes a 15 year manufacturer’s guarantee, subject to simple online registration
 Installation Instructions
|
|---|
| Product Code | axbridge-1o-2h-c-sh-vlv-pv |
|---|---|
| Type | Concealed Shower Valves |
| Brand | Booth & Co |
| Brand Range | Booth & Co Axbridge |
| Guarantee |
15 Years |
| Global Trade Item Number | Select an option first |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Cartridge Type |
Ceramic Disc |
|---|---|
| Number of Outlets |
1 Outlet |
| Material | Brass |
| Temperature Control | Thermostatic |
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.
Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.
Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
This indicates how many water outlets you can pair with your shower valves. Choosing valves with more outlets will give you flexibility over the number of products you can add to your shower.
Each outlet from your shower valve will divert water to the section of your shower that needs it, so each extra outlet allows you to add another product. For example: with 1 outlet you could have just a fixed shower head. 2 outlets will allow you to have a fixed shower head and shower handset. 3 will allow both of these with the addition of a body jet.
| Shape | Curved, Rectangular |
|---|---|
| Mounting Type | Wall Mounted |
| Style | Traditional |
| Orientation | Portrait |
| Handle Type | Crosshead, Dual Control, Lever |
| Finish Texture | Select an option first |
| Finish | Select an option first |

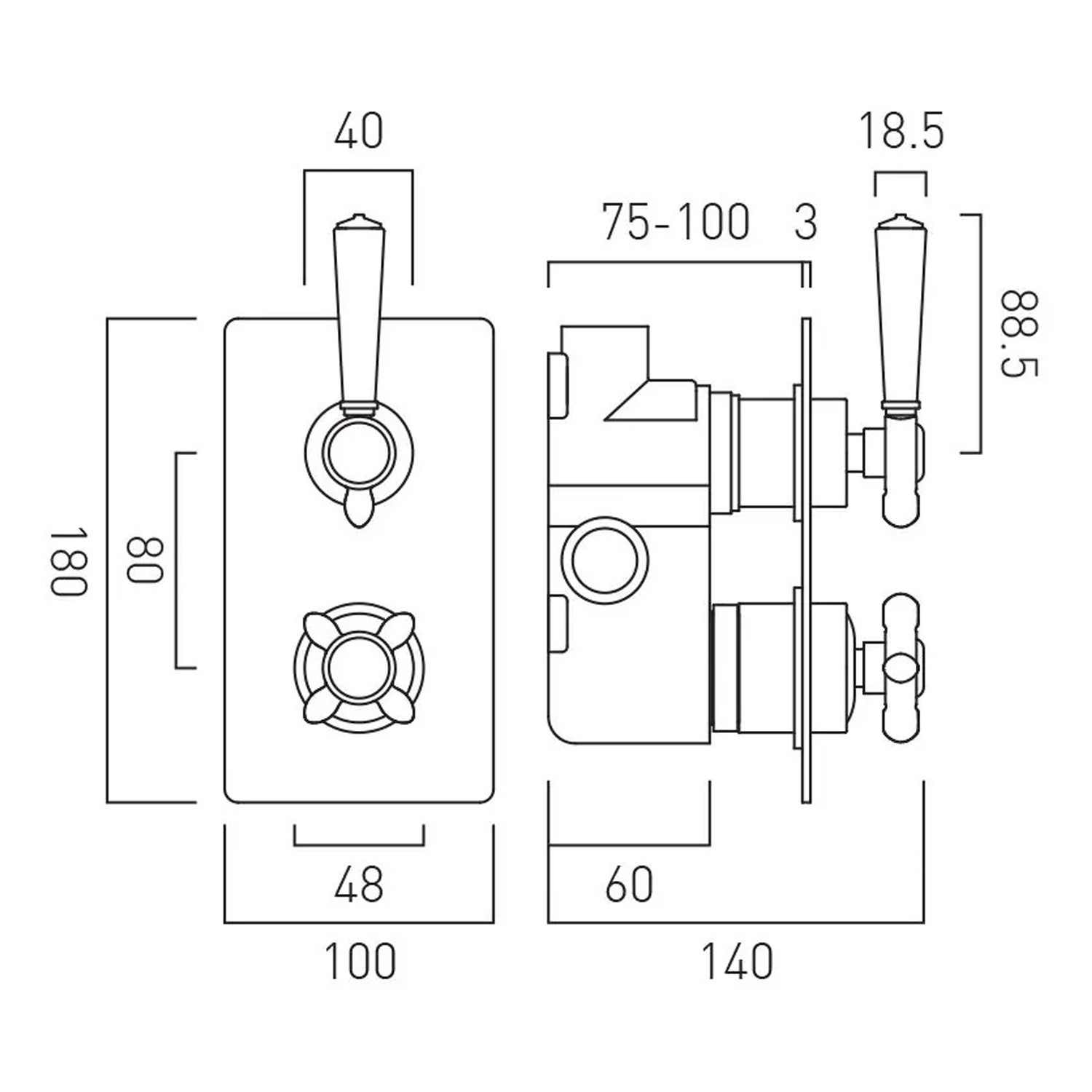

| Width (mm) | 100 |
|---|---|
| Height (mm) | 219 |
| Depth (mm) | 140 |
| Flow Rate at 0.2 Bar (l/min) | 6.4 |
|---|---|
| Flow Rate at 0.5 Bar (l/min) | 13.2 |
| Flow Rate at 1 Bar (l/min) | 19.2 |
| Flow Rate at 1.5 Bar (l/min) | 23.4 |
| Flow Rate at 2 Bar (l/min) | 27.5 |
| Flow Rate at 3 Bar (l/min) | 34 |
| Minimum Water Pressure |
0.2 |
Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.
- With a combi boiler you can usually expect between 1 and 2 bar
- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs
- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar
You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
