Bath Panel Options:
Armourcast Reinforced heavy-duty bath construction:
Matt Black Square Corner Bath Screen
Features:
Matt Black Curved Corner Bath Screen
Features:
Matt Black Framed Bath Screen
Features:
Smoked Black toughened safety glass Bath Screen
Features:
- Standard bath panel: is made from durable acrylic, providing excellent heat retention qualities and has a non-porous surface for a hygienic bath
- Reinforced bath panel is made from two sheets of rigid acrylic-capped ABS, for a super strong, UV resistant surface that boasts excellent heat retention and shock resistance
Armourcast Reinforced heavy-duty bath construction:
- Layer 1: 4mm sanitary grade acrylic - high-gloss, smooth non-porous surface
- Layer 2: Fully encapsulated baseboard - creates a strong base, beneficial for shower baths where weight is applied in a localised area
- Layer 3: Fibretoughened safety glass and resin mix - increases thermal retention
- Layer 4: Hand-rolled hardener - adds rigidity and secures the layers into place, ensuring a smooth surface beneath the bath
- 4mm sanitary grade acrylic, is robust but lightweight for easy installation
- Heavy-duty reinforcement, creates a solid structure ideal for high-traffic bathrooms
- Easy clean non-porous surface, keeps your bath looking brand new for longer
- Excellent thermal properties. Retains your water temperature for longer, reducing the need to top up constantly
- 195 litre capacity, providing plenty of bathing space
- J-shaped design maximises your bathroom space, whilst adding a contemporary style
- Fully encapsulated baseboard prevents the bath from flexing when uneven pressure is applied, ideal when getting in and out of the bath
- Manufactured and hand-finished in Europe, ensuring the quality of each bath
- This bath arrives with no pre-drilled tap holes, giving you design flexibility, shop our range of bath taps here
- CE approved, conforming with European health & safety standards
- Supplied with a choice of standard or reinforced bath panel and leg set
- Tap, shower kit, waste and overflow sold separately, please see our recommended extras
- 10 year manufacturer's guarantee
Matt Black Square Corner Bath Screen
Features:
- Made from 6mm toughened safety glass
- Hinged design - swings inwards and outwards up to 700mm
- Reversible for installation on either the left or right-hand side of your bath
- 15mm adjustment for out of true walls
- H: 1430mm, W: 770mm - 785mm
- 5 year manufacturer's guarantee
Matt Black Curved Corner Bath Screen
Features:
- Made from 6mm toughened safety glass
- Hinged design - swings inwards and outwards up to 700mm
- Reversible for installation on either the left or right-hand side of your bath
- 15mm adjustment for out of true walls
- CE approved
- H: 1430mm, W: 770mm - 785mm
- 5 year manufacturer's guarantee
Matt Black Framed Bath Screen
Features:
- Contemporary grid design printed onto the glass for easy cleaning
- Made from 6mm toughened safety glass
- Hinged design - swings inwards and outwards up to 700mm
- Reversible for installation on either the left or right-hand side of your bath
- 15mm adjustment for out of true walls
- H: 1430mm, W: 775mm - 790mm
- 5 year manufacturer's guarantee
Smoked Black toughened safety glass Bath Screen
Features:
- Unique and modern Smoked Black glass
- Made from 6mm toughened safety glass
- Reversible for installation on either the left or right-hand side of your bath
- Metal top and bottom hinges
- 20mm adjustment for out of true walls
- H: 1400mm, W: 800mm
- Lifetime manufacturer's guarantee
|
|
|---|
| Product Code | armr-rfd-lh-j-bth-sq-smk-scn-rp |
|---|---|
| Type | Bath Screens, J Shaped Baths, Shower Baths |
| Brand | Armourcast |
| Brand Range | Armourcast J-Shaped |
| Guarantee Breakdown | Bath: 10 year manufacturer's guarantee | Bath Screen: Lifetime manufacturer's guarantee | Bath Legs: 2 years manufacturer's guarantee |
| GuaranteeMore information | Various |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Overflow | Yes |
|---|---|
| Bath ThicknessMore information | 4mm |
| Capacity (ltr)More information | 195 |
| Popular Features | Reinforced Baths, Toughened Safety Glass |
| Material | Acrylic, Aluminium, Clear Glass, Toughened Safety Glass |
| Glass Thickness (mm)More information | 6 |
Baths are available in a variety of different thicknesses. A bath with a greater thickness will usually be more robust and is likely to last longer. However, other factors such as material type will also affect this.
This figure is a guide to the size of your bathtub. The capacity shows the amount of water, in litres, your bath will be able to hold when full.
This figure shows you how thick the glass in your mirror, shower enclosure or doors will be. Thicker glass will often be more robust, which helps it last longer.
| Shape | Curved |
|---|---|
| Style | Modern |
| Tap Holes | No Pre-Drilled Tap Holes |
| Finish Texture | Matt |
| Finish | Gloss White, Matt Black |
| Orientation | Left Hand |

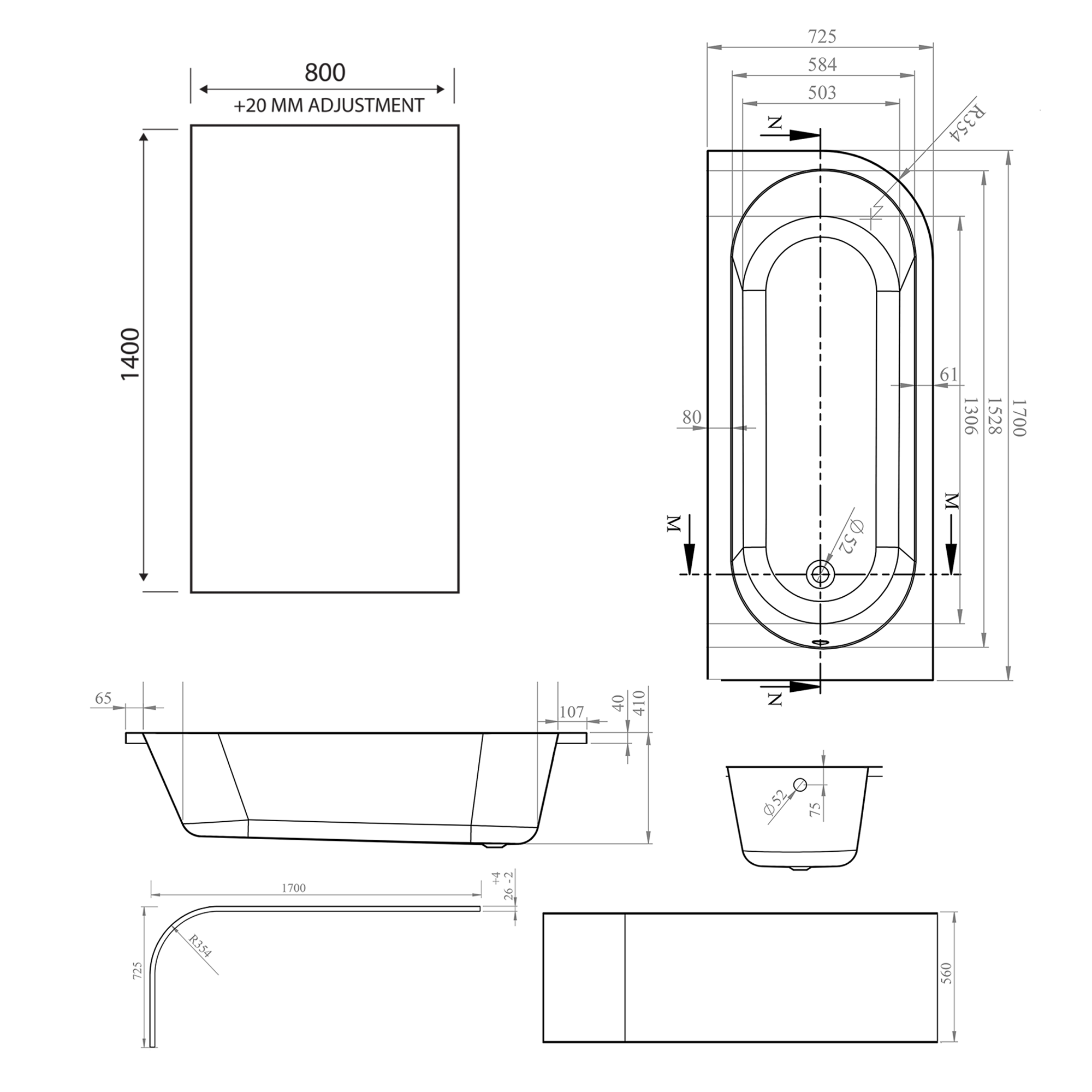

| Height (mm) | 560 |
|---|---|
| Length (mm) | 1700 |
| Width (mm) | 725 |
| Maximum AdjustmentMore information | 820 |
| Minimum AdjustmentMore information | 800 |
Maximum Adjustment
Sometimes one or two walls in the space you are planning on installing a shower door or enclosure may be ‘out of true’ or not perfectly straight. The maximum adjustment measurement indicates the highest ‘give’ a shower door or enclosure has to achieve a perfect fit.
Minimum Adjustment
Sometimes one or two walls in the space you are planning on installing a shower door or enclosure may be ‘out of true’ or not perfectly straight. The minimum adjustment measurement indicates the lowest ‘give’ a shower door or enclosure has to achieve a perfect fit.
