Harbour Clarity 1 Outlet Thermostatic Concealed Shower Valve

Rated 4.67/5 from 6 customer reviews

RRP £299 save 50%

£149.99

Loading delivery estimate...

Klarna
Pay 3 interest-free instalments of £49.99 with Klarna Learn more about Klarna
Clearpay
Pay 4 interest-free instalments of £37.50 with Clearpay Learn more about Clearpay

What's great about it?

  • 1 outlet concealed design in Polished Chrome
  • Anti Calc thermostatic cartridge keeps your valve free from limescale and debris
  • Ceramic disc technology
  • WRAS approved
  • 0.5 bar minimum pressure required
  • 10 year manufacturer's guarantee

Read full product description

Recommended extras

We've hand-picked these items because they are a great choice alongside the Harbour Clarity 1 Outlet Thermostatic Concealed Shower Valve

Shower Valve Features:
  • Modern 1 outlet concealed design with dual handle control
  • Sleek Chrome finish
  • Thermostatic valve with auto-shutoff mechanism protects you from sudden changes in temperature, helping prevent scalding
  • Anti Calc thermostatic cartridge - advanced anti-debris technology that helps prevent blockage & limescale build-up for effortless temperature control
  • Ceramic disc technology prevents any unwanted leaks or drips
  • Dual handle control - top controls the water flow and the bottom controls the water temperature
  • Interchangeable backplate design allows portrait or landscape orientation
  • Crafted from brass (valve body), stainless steel (backplate) & zinc alloy (handles)
  • Minimum water pressure required: 0.5 bar
  • WRAS Approved
  • Complies with BSEN 1111
  • Covered by a 10 year manufacturer’s guarantee

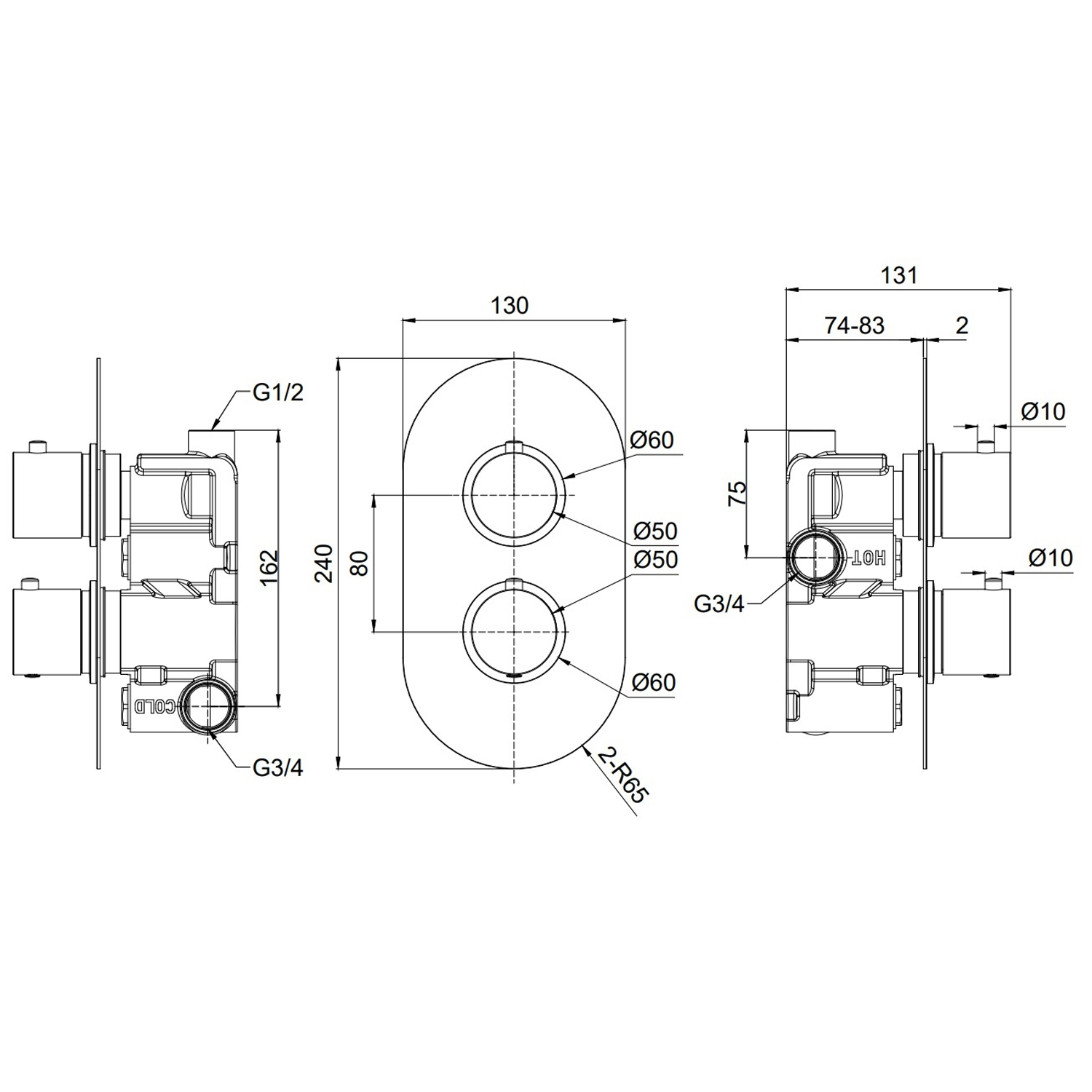

Dimensions:
  • Height: 240mm
  • Width: 130mm
  • Depth: 131mm

Flow rates:
  • 0.5 bar (l/min): 11.1 l/min
  • 1.0 bar (l/min): 15.5 l/min
  • 1.5 bar (l/min): 18.9 l/min
  • 2.0 bar (l/min): 21.8 l/min
  • 3.0 bar (l/min): 26.5 l/min
  • 4.0 bar (l/min): 30.5 l/min
  • 5.0 bar (l/min): 33.8 l/min

Product Overview
Product Code HBCLA81
Global Trade Item Number 7427042696498
Type Concealed Shower Valves
Brand Harbour
Brand Range Harbour Clarity
GuaranteeMore information 10 Years

Guarantee

Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.

Features
Cartridge TypeMore information Ceramic Disc
Number of OutletsMore information 1 Outlet
Material Brass, Stainless Steel, Zinc Alloy
Temperature Control Thermostatic

Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.

This indicates how many water outlets you can pair with your shower valves. Choosing valves with more outlets will give you flexibility over the number of products you can add to your shower.

Each outlet from your shower valve will divert water to the section of your shower that needs it, so each extra outlet allows you to add another product. For example: with 1 outlet you could have just a fixed shower head. 2 outlets will allow you to have a fixed shower head and shower handset. 3 will allow both of these with the addition of a body jet.

Style
Shape Round
Mounting Type Wall Mounted
Finish Texture Polished
Finish Polished Chrome
Style Modern
Orientation Portrait, Landscape
Handle Type Round, Dual Control
Dimensions
Width (mm) 130
Height (mm) 240
Depth (mm) 131
Flow Rate
Flow Rate at 0.5 Bar (l/min) 11.1
Flow Rate at 1 Bar (l/min) 15.5
Flow Rate at 1.5 Bar (l/min) 18.9
Flow Rate at 2 Bar (l/min) 21.8
Flow Rate at 3 Bar (l/min) 26.5
Flow Rate at 4 Bar (l/min) 30.5
Flow Rate at 5 Bar (l/min) 33.8
Minimum Water PressureMore information 0.5

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
