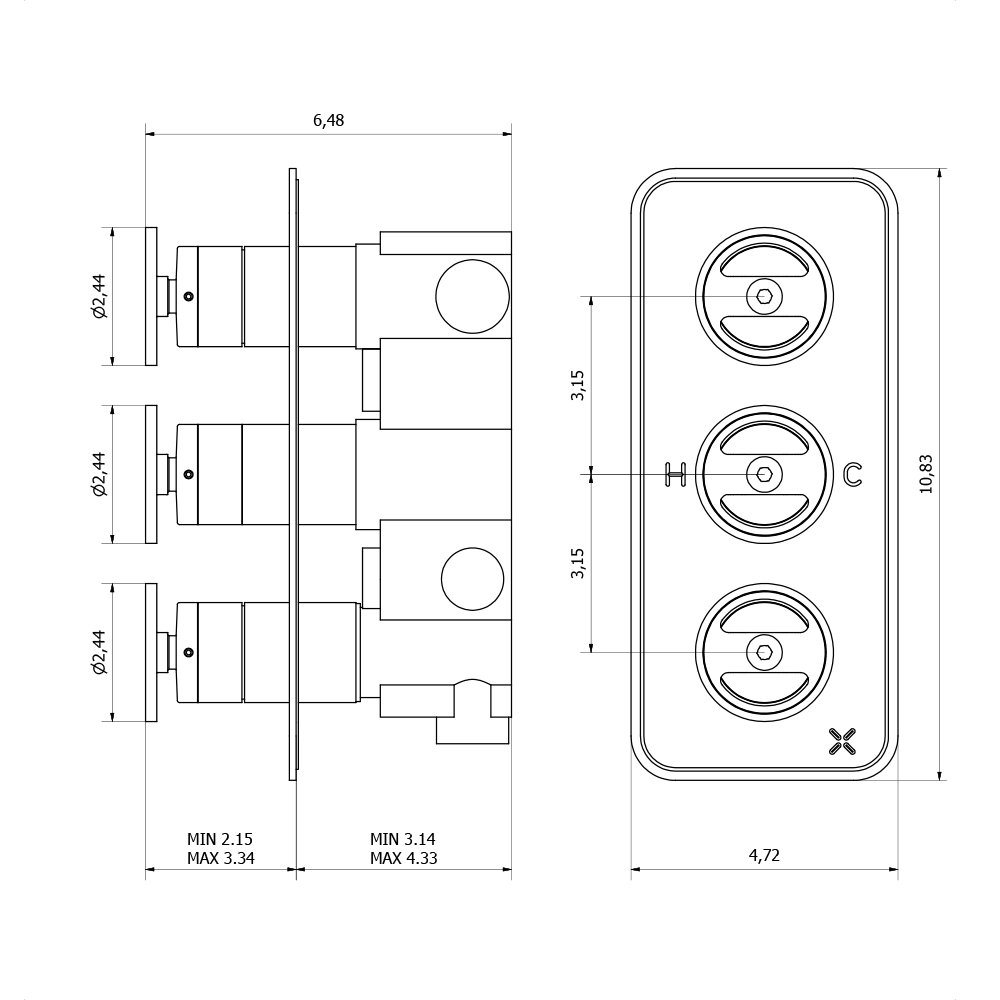

We've hand-picked these items because they are a great choice alongside the Crosswater Union 3 Outlet Landscape Concealed Thermostatic Shower Valve with Wheels - Brushed Nickel
- Brushed nickel finish with triple wheel control
- Thermostatic control keeps the temperature where you set it, even if the pressure fluctuates
- Pre-set maximum temperature of 42°C to prevent accidental scalding
- 3 outlet valve - ideal for use with a matching fixed shower head, Crosswater slide rail kit and body jets
- Run each outlet on their own or run two simultaneously
- Landscape orientation only
- Minimum 1 bar water pressure required to run 1 outlet on its own
- Minimum 2 bar water pressure required to run 2 outlets simultaneously
- 15 year guarantee from Crosswater
Product Code | UB3001RL |
---|---|
Type | Concealed Shower Valves |
Brand | Crosswater |
Brand Range | Crosswater Union |
GuaranteeMore information | 15 Years |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
Number of OutletsMore information | 3 Outlets |
---|---|
Temperature Control | Thermostatic |
This indicates how many water outlets you can pair with your shower valves. Choosing valves with more outlets will give you flexibility over the number of products you can add to your shower.
Each outlet from your shower valve will divert water to the section of your shower that needs it, so each extra outlet allows you to add another product. For example: with 1 outlet you could have just a fixed shower head. 2 outlets will allow you to have a fixed shower head and shower handset. 3 will allow both of these with the addition of a body jet.
Shape | Rectangular |
---|---|
Mounting Type | Wall Mounted |
Finish Texture | Brushed |
Finish | Brushed Nickel |
Style | Modern |
Orientation | Landscape |
Handle Type | Triple Control, Wheel |
Flow Rate at 0.2 Bar (l/min) | 7.6 |
---|---|
Flow Rate at 0.5 Bar (l/min) | 13.1 |
Flow Rate at 1 Bar (l/min) | 15.7 |
Flow Rate at 2 Bar (l/min) | 21.9 |
Flow Rate at 3 Bar (l/min) | 26.5 |
Minimum Water PressureMore information | 1 |
Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.
- With a combi boiler you can usually expect between 1 and 2 bar
- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs
- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar
You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
