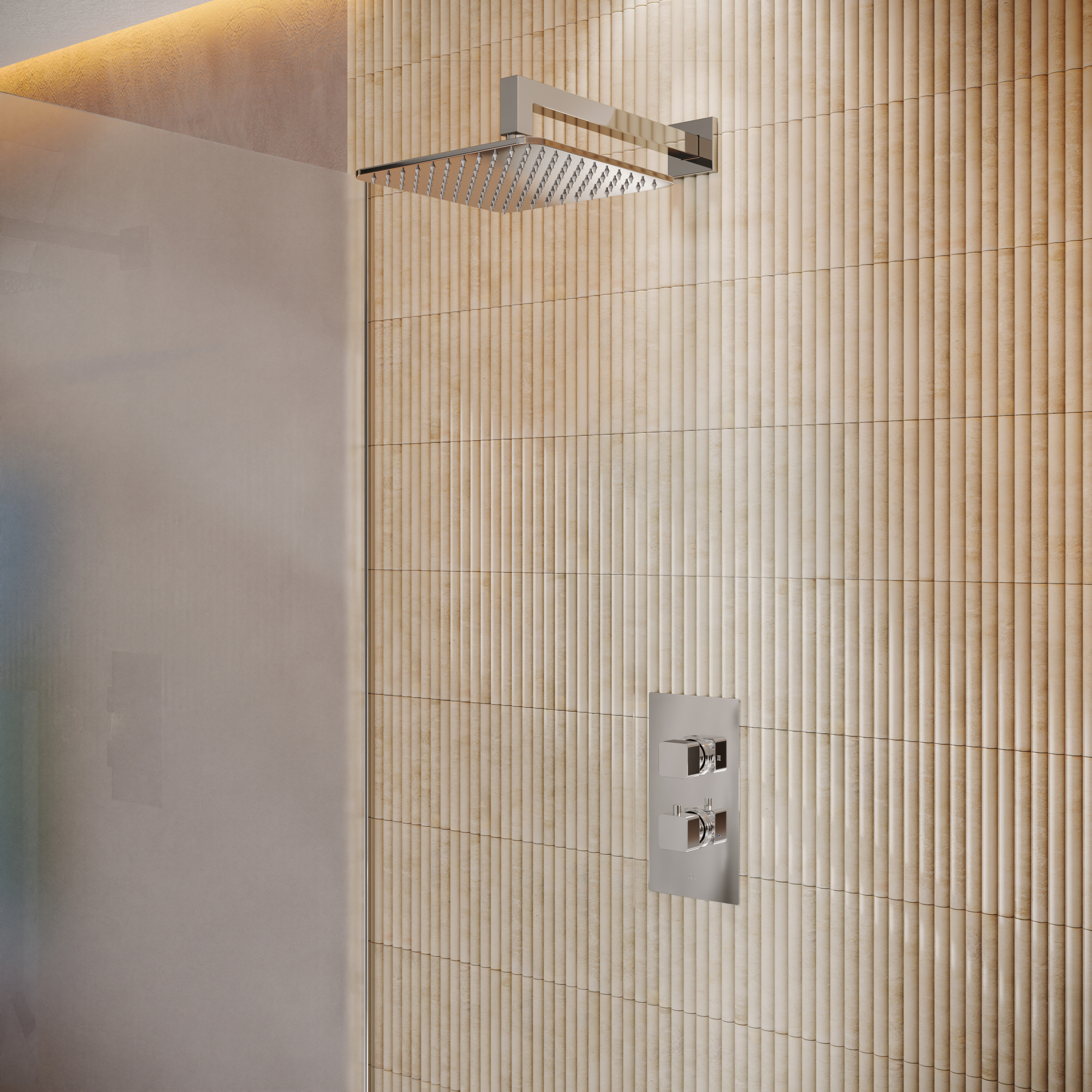

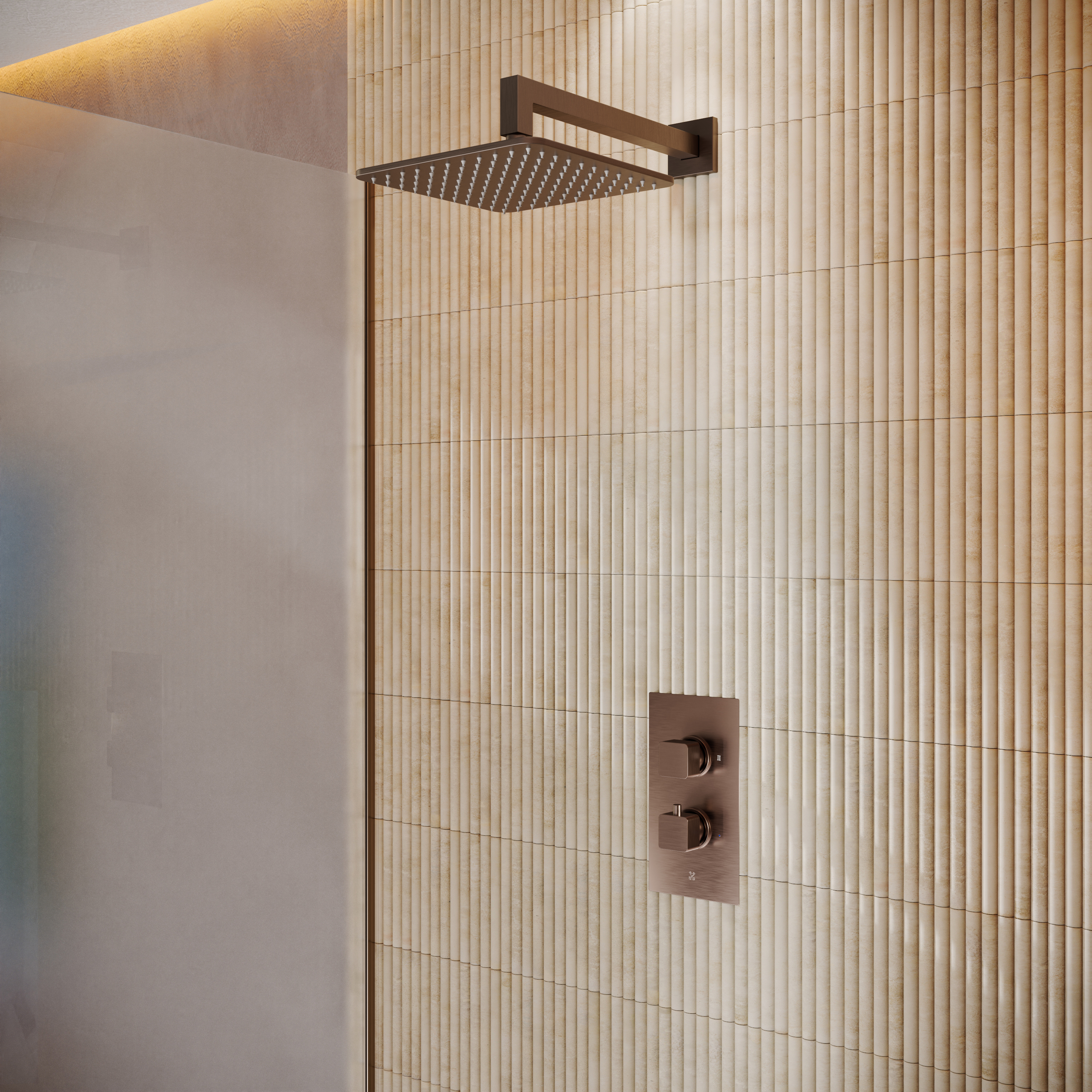

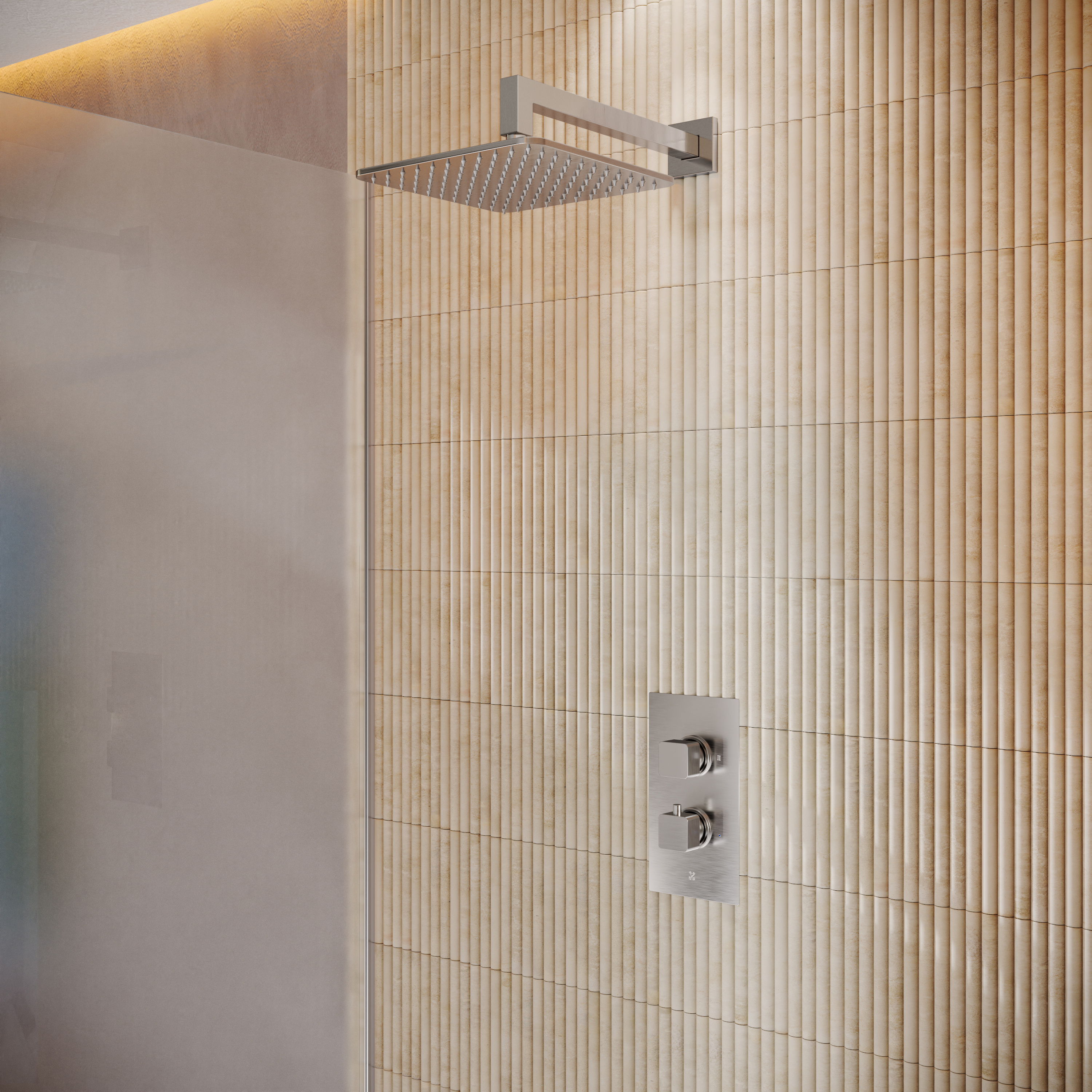

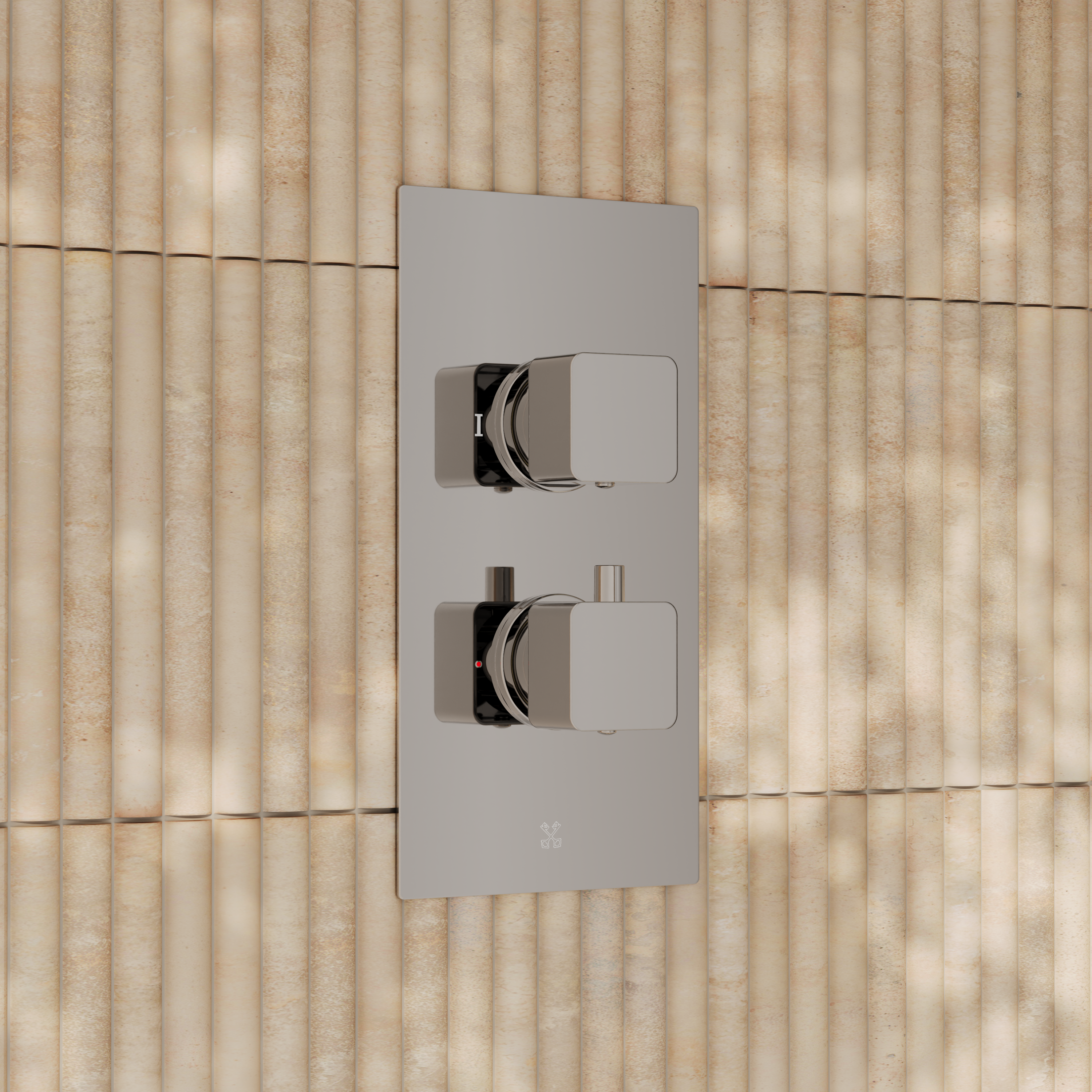

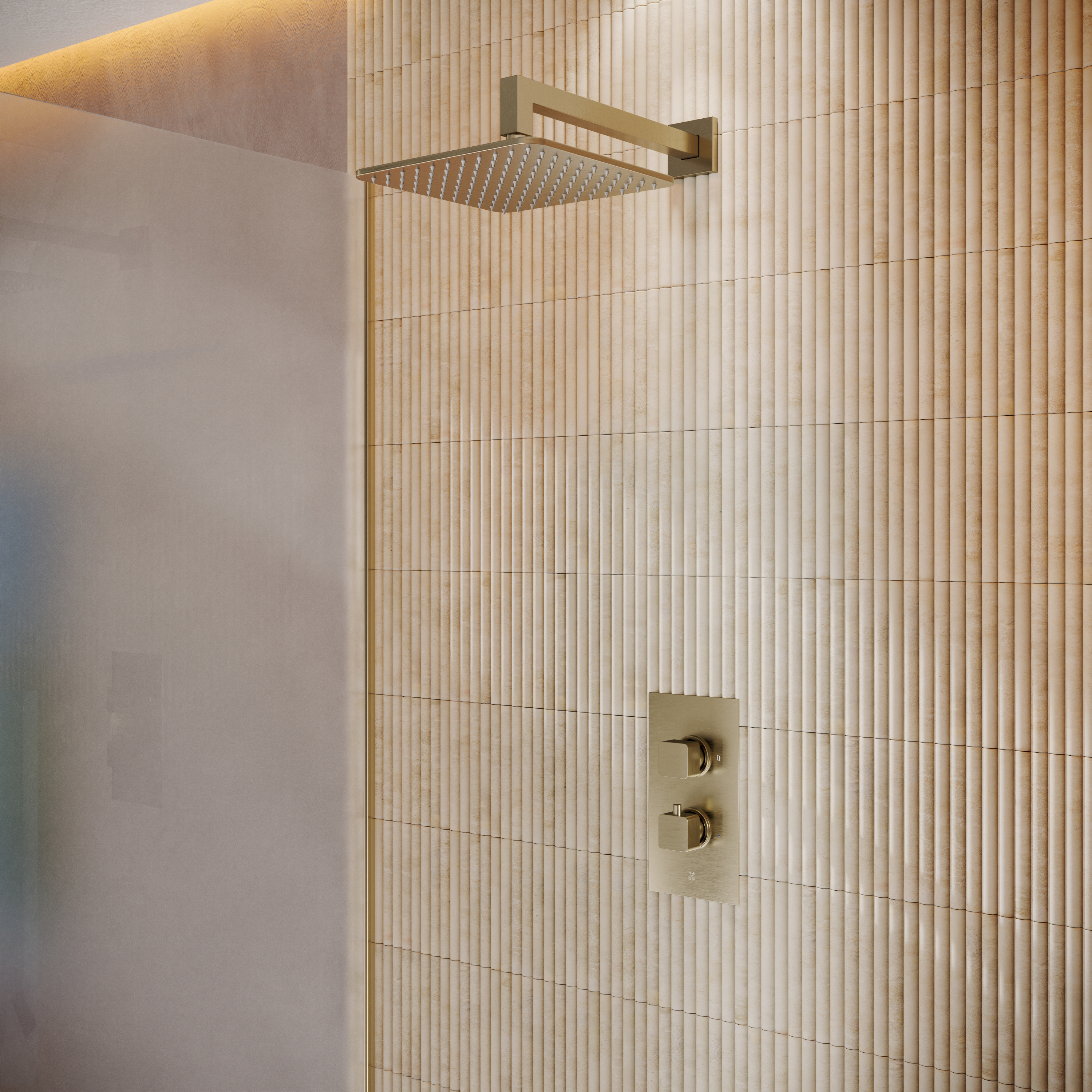

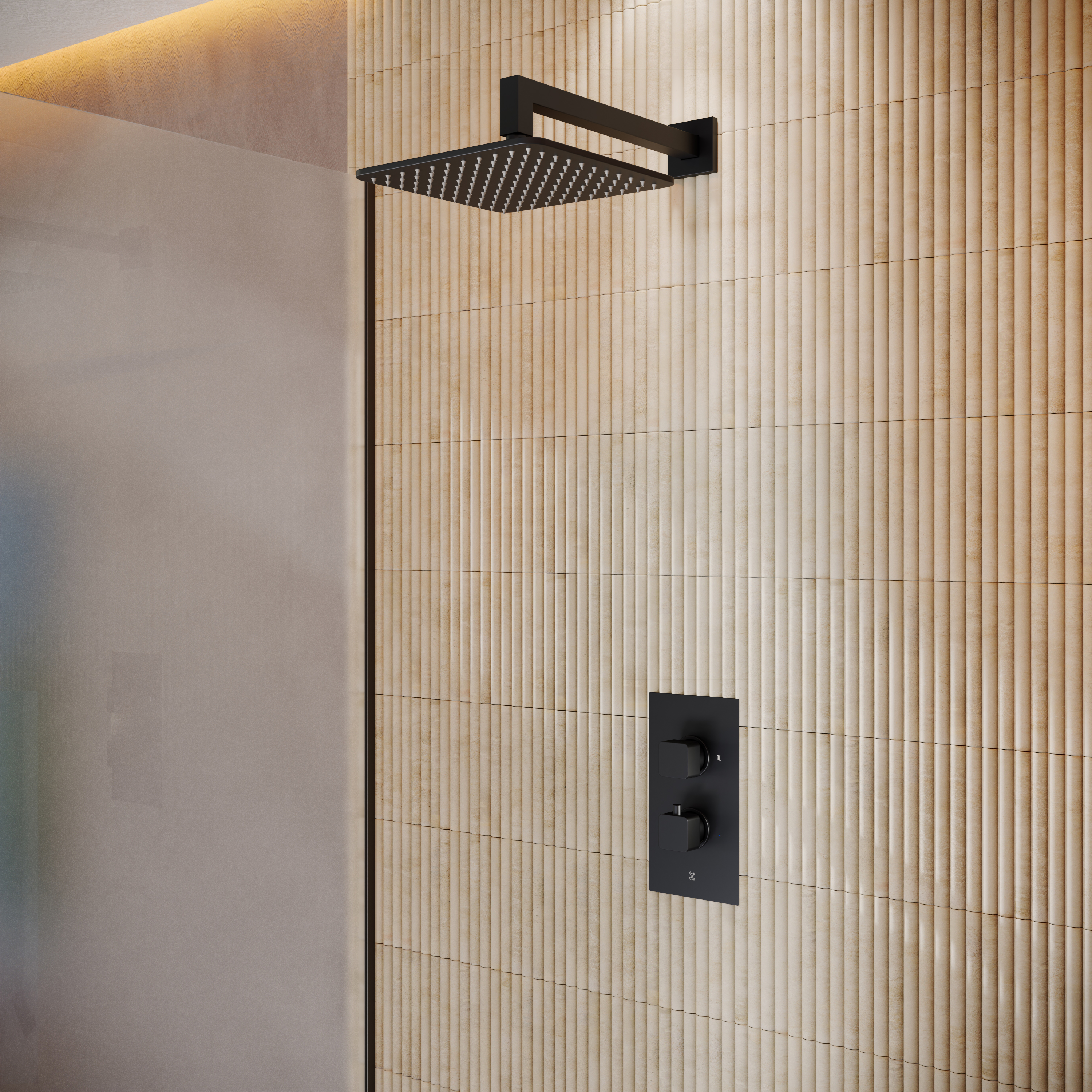

This complete shower set pairs a single-outlet concealed thermostatic valve with a geometric shower head. Designed for sleek simplicity, it emulates a relaxing rainfall, while intelligent thermostatic technology works to maintain a consistent and comfortable water temperature. The square head offers a modern alternative to traditional round shower heads, while the ultra-slim cover plate creates a low-profile finish.
Features:
Features:
- Includes a concealed thermostatic valve, cover plate, square shower head and soft square handles
- Intuitive 2-dial layout with 1 dedicated control for water flow and 1 for temperature adjustment
- Fixed 250mm square shower head delivers a relaxing rainfall experience with wide coverage
- Integrated swivel ball joint lets you tilt and adjust the water angle to your preference
- Rub-clean nozzles make it easy to wipe away limescale in seconds
- Square dials provide natural leverage for easy gripping and turning, even with wet hands
- Ultra-slim 1.5mm cover plate sits flush against the wall for a low-profile finish
- Ceramic disc technology keeps the handles turning smoothly and stops dripping
- Thermostatic control stops sudden scalding or freezing temperatures to keep you comfortable
- 38°C lock protects from high temperatures, with a push-button override for warmer water
- Automatic safety shut-off instantly stops water flow if the cold water supply fails
- Anti-calc thermostatic cartridge prevents limescale build-up to maintain peak performance
- Durable brass valve body features a built-in spirit level for a precise installation on the first try
- Stainless steel plate, shower head and handles resist rust and corrosion for lasting reliability
- Choice of finishes to complement your existing decor or pair with the wider Drench Core range
- Handles are supplied in a pack of 3, providing 2 for installation and 1 as a convenient spare
- Optimised for systems with a minimum 0.5 bar pressure to deliver a steady water flow
- WRAS approved concealed valve, meeting strict UK water regulations and safety standards
- Backed by a lifetime manufacturer’s guarantee for peace of mind
| Product Code | dr-core-cnc-1vlv-sq-sh-hnd |
|---|---|
| Type | Concealed Shower Sets & Valves |
| Brand | Drench |
| Brand Range | Drench Core |
| Guarantee |
Lifetime |
| Global Trade Item Number | Select an option first |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Cartridge Type |
Ceramic Disc |
|---|---|
| Number of Outlets |
1 Outlet |
| Popular Features | Easy Clean Nozzles, WRAS Approved |
| Material | ABS Plastic, Brass, Stainless Steel |
| Temperature Control | Thermostatic |
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.
Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.
Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
This indicates how many water outlets you can pair with your shower valves. Choosing valves with more outlets will give you flexibility over the number of products you can add to your shower.
Each outlet from your shower valve will divert water to the section of your shower that needs it, so each extra outlet allows you to add another product. For example: with 1 outlet you could have just a fixed shower head. 2 outlets will allow you to have a fixed shower head and shower handset. 3 will allow both of these with the addition of a body jet.
| Shape | Rectangular, Square |
|---|---|
| Mounting Type | Wall Mounted |
| Style | Modern |
| Orientation | Portrait |
| Handle Type | Dual Control, Lever, Square |
| Finish Texture | Select an option first |
| Finish | Select an option first |
| Flow Rate at 0.5 Bar (l/min) | 7.3 |
|---|---|
| Flow Rate at 1 Bar (l/min) | 10.2 |
| Flow Rate at 2 Bar (l/min) | 14.8 |
| Flow Rate at 3 Bar (l/min) | 18 |
| Flow Rate at 5 Bar (l/min) | 23.9 |
| Minimum Water Pressure |
0.5 |
Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.
- With a combi boiler you can usually expect between 1 and 2 bar
- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs
- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar
You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
