The Drench difference

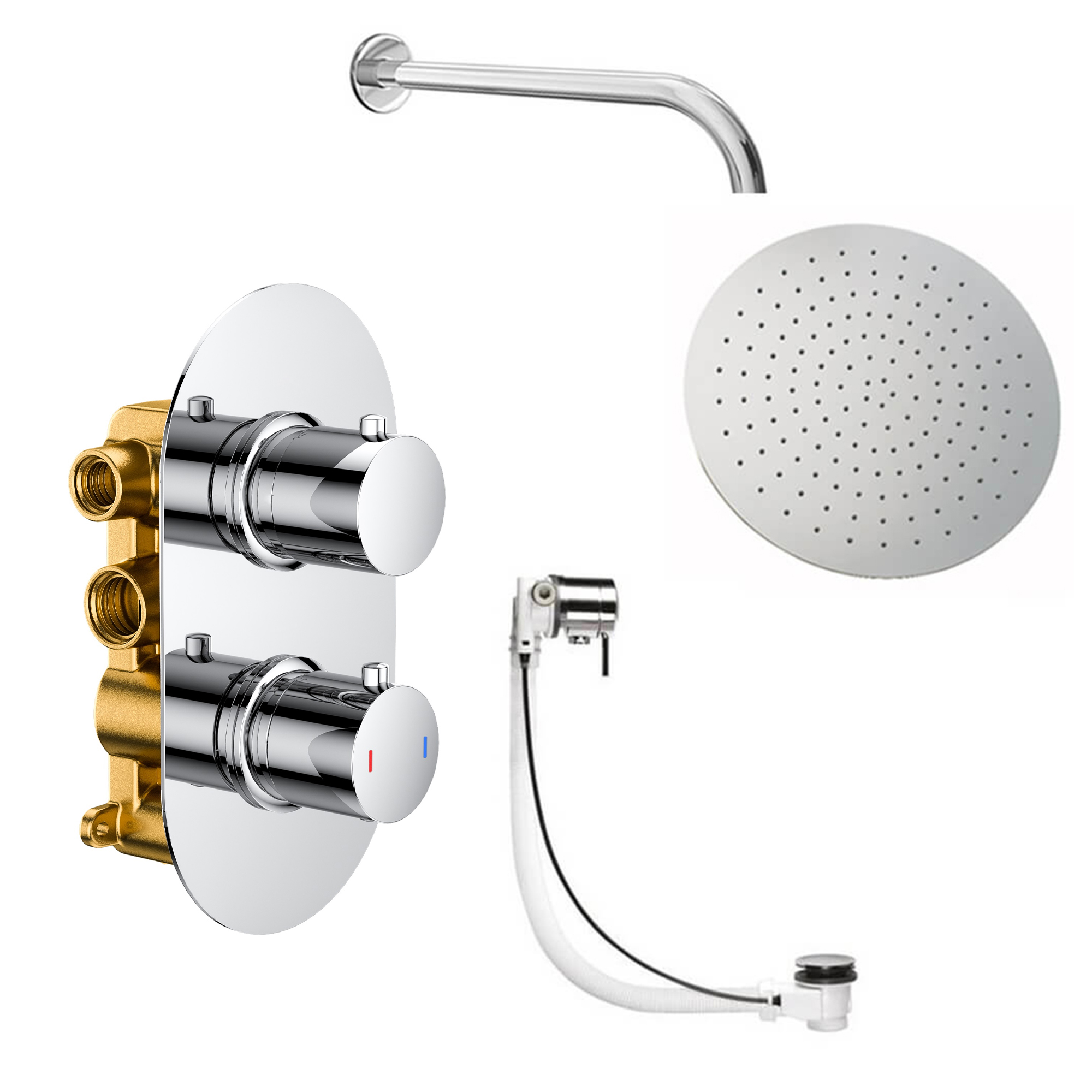

Take your bathroom to new heights with the Drench Imogen Concealed Shower Valve, Fixed Shower Head & Overflow Bath Filler, bringing a touch of luxury to your space. Imogen offers a wide array of choices to help you create the opulent bathroom you've always envisioned.
Tailor your setup by choosing from three distinct shower heads, four shower arms, and an overflow bath filler, allowing for complete personalisation. The Imogen valve also provides the flexibility of installation in either portrait or landscape orientation, allowing you to customise your shower configuration.
Inside the heart of the valve lies our state-of-the-art Anti Calc Thermostatic Cartridge, thoughtfully engineered to effectively resolve common issues such as fluctuations in water temperature and reduced water flow caused by hidden blockages. Simply press down on the safety button on the thermo handle, then turn the handle to the hottest setting and then to the coldest setting, allowing the cartridge to efficiently flush out dirt, limescale, and debris that can accumulate over time.
Bath fillers are an excellent way to modernise your bathroom, eliminating the clutter of traditional bath taps from your bath ledge. They're also straightforward to install, and both your shower and bath filler can be controlled through the same valve.
Valve Features:
Dimensions:
Flow rates:
Shower Head Features:
Shower Arm Features:
Overflow Bath Filler with Pop-up Waste Features:
Overflow Bath Filler with Clicker Waste Features:
Tailor your setup by choosing from three distinct shower heads, four shower arms, and an overflow bath filler, allowing for complete personalisation. The Imogen valve also provides the flexibility of installation in either portrait or landscape orientation, allowing you to customise your shower configuration.
Inside the heart of the valve lies our state-of-the-art Anti Calc Thermostatic Cartridge, thoughtfully engineered to effectively resolve common issues such as fluctuations in water temperature and reduced water flow caused by hidden blockages. Simply press down on the safety button on the thermo handle, then turn the handle to the hottest setting and then to the coldest setting, allowing the cartridge to efficiently flush out dirt, limescale, and debris that can accumulate over time.
Bath fillers are an excellent way to modernise your bathroom, eliminating the clutter of traditional bath taps from your bath ledge. They're also straightforward to install, and both your shower and bath filler can be controlled through the same valve.
Valve Features:
- Modern 2 outlet concealed design with dual handle control
- Sleek Chrome finish
- Thermostatic valve with auto-shutoff mechanism protects you from sudden changes in temperature, helping prevent scalding
- Anti Calc thermostatic cartridge - advanced anti-debris technology that helps prevent blockage & limescale build-up for effortless temperature control
- Ceramic disc technology prevents any unwanted leaks or drips
- Interchangeable backplate design allows portrait or landscape orientation
- Crafted from high grade brass (valve body), stainless steel (backplate) & zinc alloy (handles)
- Minimum water pressure required: 0.5 bar
- WRAS approved
- Complies with BSEN 1111
- Covered by a 10 year manufacturer’s guarantee

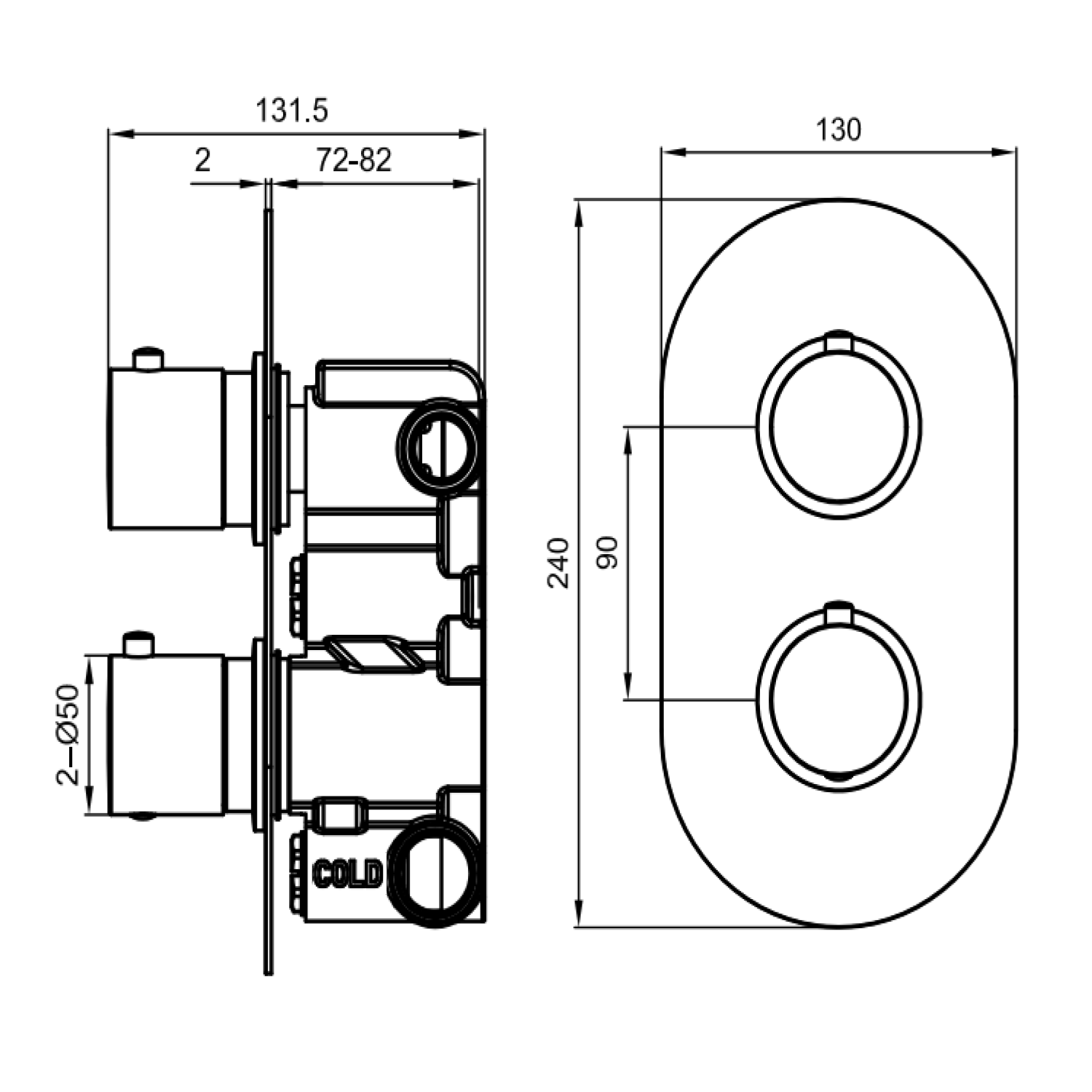

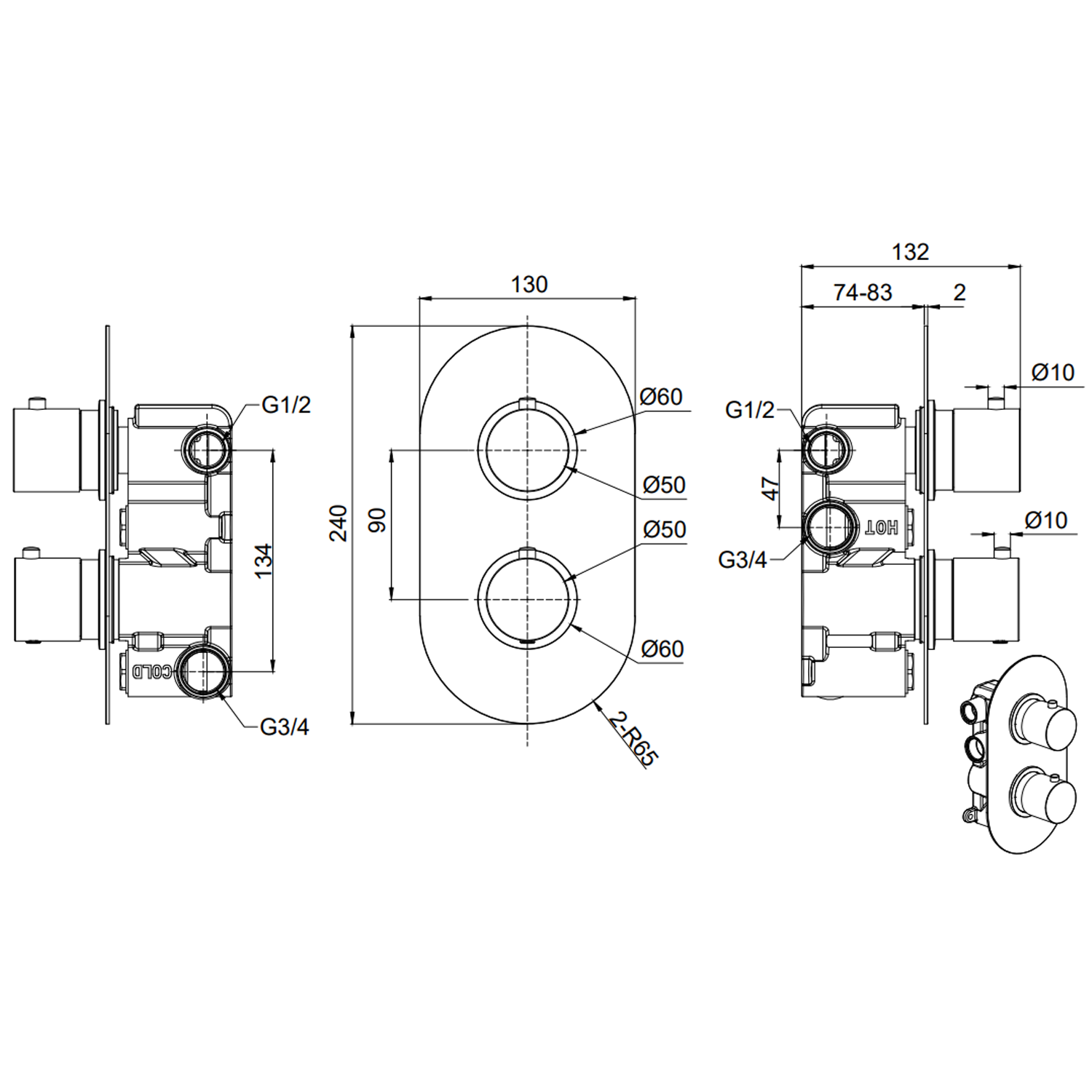

Dimensions:
- Height: 240mm
- Width: 130mm
Flow rates:
- 0.5 bar (l/min): 9.7
- 1.0 bar (l/min): 13.8
- 1.5 bar (l/min): 16.8
- 2.0 bar (l/min): 19.4
- 3.0 bar (l/min): 23.5
- 4.0 bar (l/min): 27.4
- 5.0 bar (l/min): 30.6

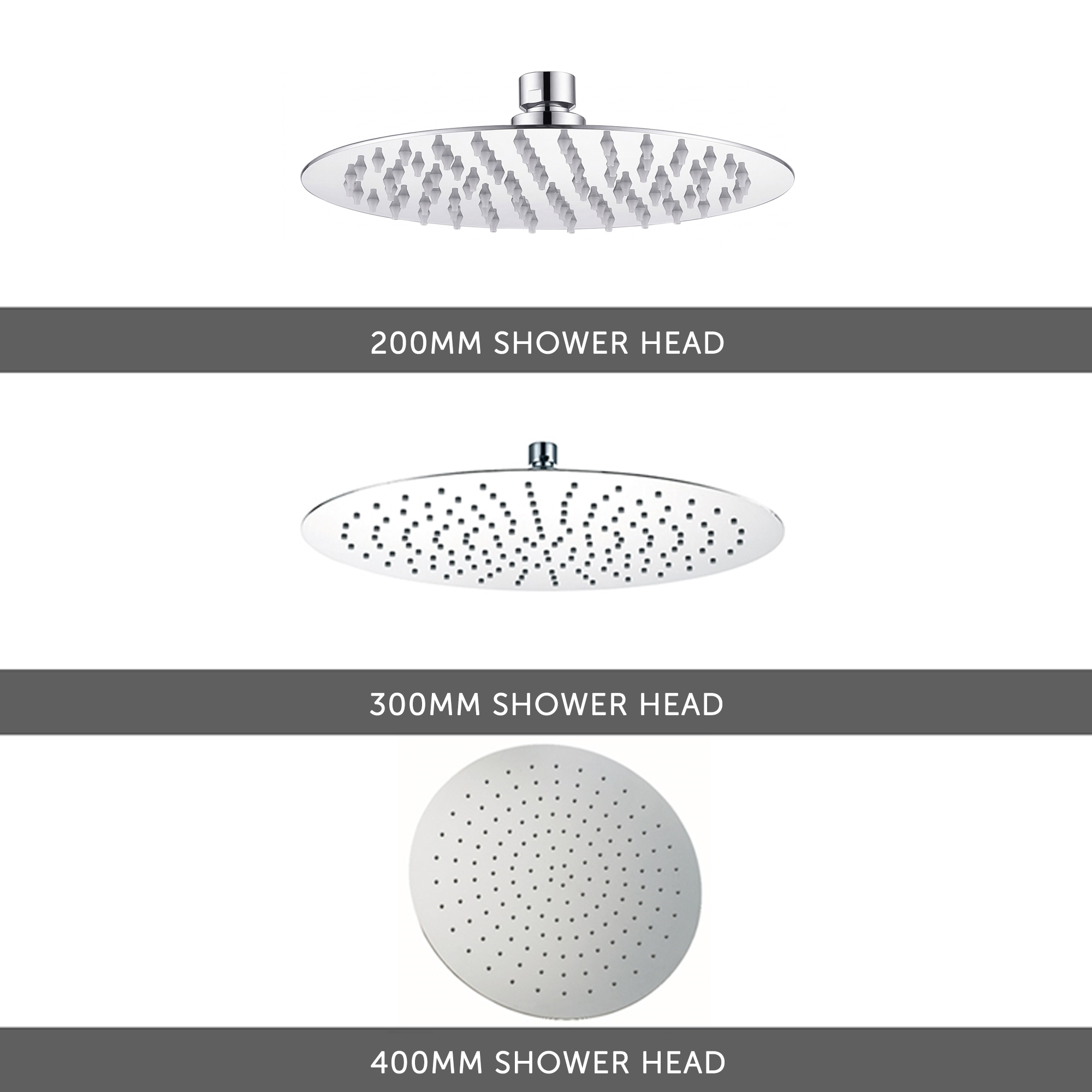

Shower Head Features:
- Choose from 200, 300, or 400mm
- Stainless steel shower head in a sleek Chrome finish
- Swivel joint easily adjusts the angle of the head
- 400mm head features air injection technology - providing softer showering experience & reducing water usage by mixing air with water
- Easy-clean rubber nozzles for easy cleaning
- 200 & 300mm heads covered by a lifetime manufacturer’s guarantee
- 1 year manufacturer's guarantee on 400mm head
Shower Arm Features:
- 4 shower arms to choose from to fully customise your shower
- Constructed from brass with a dazzling Chrome finish
- 150 & 300mm ceiling arms - 10 year manufacturer’s guarantee
- 300mm & 380mm curved wall arms - 5 year manufacturer’s guarantee
Overflow Bath Filler with Pop-up Waste Features:
- Integrated overflow bath filler and pop up bath waste
- Constructed from brass with a Polished Chrome finish
- Suitable for baths up to 30mm thick
- Minimum water pressure required: 0.5 bar
- Covered by a 1 year manufacturer's guarantee
Overflow Bath Filler with Clicker Waste Features:
- Integrated overflow bath filler and click clack bath waste
- Constructed from brass with a Polished Chrome finish
- Minimum water pressure required: 1 bar
- Covered by a 1 year manufacturer's guarantee
| Product Code | dr-imogen-con-bath-shower-kit |
|---|---|
| Type | Concealed Shower Bath Sets |
| Brand | Drench |
| Brand Range | Drench Imogen |
| GuaranteeMore information | Various |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Cartridge TypeMore information | Ceramic Disc |
|---|---|
| Number of OutletsMore information | 2 Outlets |
| Popular Features | Easy Clean Nozzles |
| Material | Brass, Stainless Steel, Zinc Alloy |
| Temperature Control | Thermostatic |
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.
Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.
Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
This indicates how many water outlets you can pair with your shower valves. Choosing valves with more outlets will give you flexibility over the number of products you can add to your shower.
Each outlet from your shower valve will divert water to the section of your shower that needs it, so each extra outlet allows you to add another product. For example: with 1 outlet you could have just a fixed shower head. 2 outlets will allow you to have a fixed shower head and shower handset. 3 will allow both of these with the addition of a body jet.
| Shape | Round |
|---|---|
| Finish Texture | Polished |
| Finish | Chrome |
| Style | Modern |
| Orientation | Landscape, Portrait |
| Handle Type | Dual Control, Round |
| Spout TypeMore information | Overflow Spout |
| Mounting Type | Select an option first |
Tap spouts are available in a variety of different styles which have an effect on both the look and function of your tap. Different spout types will have different heights and projections, so it’s important to choose one which will complement your basin or bath.
| Flow Rate at 0.5 Bar (l/min) | 9.7 |
|---|---|
| Flow Rate at 1 Bar (l/min) | 13.8 |
| Flow Rate at 1.5 Bar (l/min) | 16.8 |
| Flow Rate at 2 Bar (l/min) | 19.4 |
| Flow Rate at 3 Bar (l/min) | 23.5 |
| Flow Rate at 4 Bar (l/min) | 27.4 |
| Flow Rate at 5 Bar (l/min) | 30.6 |
| Minimum Water Pressure | Select an option first |
