Crosswater Union 2 Outlet Concealed Thermostatic Shower Valve with Wheels - Brushed Black Chrome

No reviews yet - Write one

Loading delivery estimate...

Klarna
Pay 3 interest-free instalments of £289.99 with Klarna Learn more about Klarna
Clearpay
Pay 4 interest-free instalments of £217.50 with Clearpay Learn more about Clearpay

What's great about it?

  • Brushed black chrome finish
  • 2 outlet concealed shower valve
  • Thermostatic temperature control
  • Minimum 1 bar water pressure required
  • 15 year guarantee

Read full product description

Recommended extras

We've hand-picked these items because they are a great choice alongside the Crosswater Union 2 Outlet Concealed Thermostatic Shower Valve with Wheels - Brushed Black Chrome

Features:
  • Eye-catching brushed black chrome finish
  • Thermostatic control keeps the temperature where you set it, even if the pressure fluctuates
  • Pre-set maximum temperature of 42°C to prevent accidental scalding
  • 2 outlet valve - ideal for use with a Crosswater shower head and Crosswater slide rail kit
  • Portrait orientation only
  • Minimum 1 bar water pressure required
  • 15 year guarantee from Crosswater

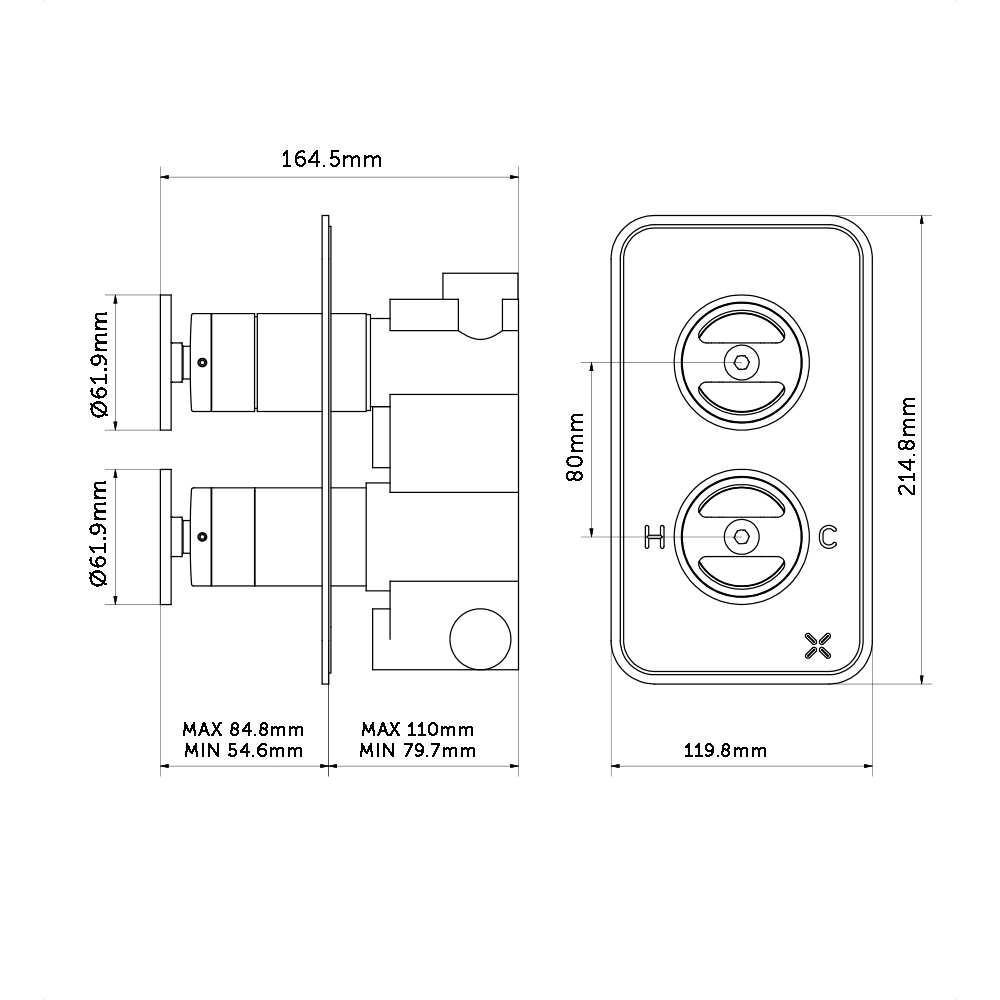

Backplate dimensions:
  • Height - 215mm
  • Width - 120mm

Product Overview
Product Code UB1500RB
Type Concealed Shower Valves
Brand Crosswater
Brand Range Crosswater Union
GuaranteeMore information 15 Years

Guarantee

Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.

Features
Number of OutletsMore information 2 Outlets
Temperature Control Thermostatic

This indicates how many water outlets you can pair with your shower valves. Choosing valves with more outlets will give you flexibility over the number of products you can add to your shower.

Each outlet from your shower valve will divert water to the section of your shower that needs it, so each extra outlet allows you to add another product. For example: with 1 outlet you could have just a fixed shower head. 2 outlets will allow you to have a fixed shower head and shower handset. 3 will allow both of these with the addition of a body jet.

Style
Shape Rectangular
Mounting Type Wall Mounted
Finish Texture Brushed
Finish Brushed Black Chrome
Style Modern
Orientation Portrait
Handle Type Dual Control, Wheel
Dimensions
Width (mm) 120
Height (mm) 215
Flow Rate
Flow Rate at 0.2 Bar (l/min) 8.7
Flow Rate at 0.5 Bar (l/min) 11
Flow Rate at 1 Bar (l/min) 13.6
Flow Rate at 2 Bar (l/min) 22.4
Flow Rate at 3 Bar (l/min) 27
Flow Rate at 5 Bar (l/min) 35
Minimum Water PressureMore information 1

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
