Crosswater Central Concealed Thermostatic Shower Valve with 3 Way Diverter

No reviews yet - Write one

RRP £714 save 28%

£515.99

Loading delivery estimate...

Klarna
Pay 3 interest-free instalments of £171.99 with Klarna Learn more about Klarna
Clearpay
Pay 4 interest-free instalments of £129.00 with Clearpay Learn more about Clearpay

What's great about it?

  • Stylish thermostatic valve to control three outlets
  • Ceramic disc technology makes the valves easy and smooth to use
  • Built in safety controls to protect you and your family from accidental scalding
  • WRAS approved
  • 15 year manufacturers guarantee

Read full product description

Recommended extras

We've hand-picked these items because they are a great choice alongside the Crosswater Central Concealed Thermostatic Shower Valve with 3 Way Diverter

When you have a bathroom that needs several different water sources all at once, there's really only one solution. The Crosswater Central Concealed Thermostatic Shower Valve with 3 Way Diverter is especially built to handle high water pressure levels, so that you can simultaneously manage your different bathroom units separately or all at once. And with the stylish, leverless circular design of the Central range; it looks great too.

Using only the finest thermostatic control systems, this valve allows you to constantly maintain your chosen temperature with minimal effort. And with safety in mind, there's an automatic shutdown feature and temperature limiter, giving you peace of mind it's safe for your whole family to use. It even comes with a 15 year manufacturer's guarantee as standard.

Features:
  • Three outlet thermostatic shower valve with one dial to control a single outlet, one dial with a diverter to control two outlets and one dial to control the water temperature
  • Ceramic disc technology for smooth control and a drip-free outlet
  • Available in portrait orientation only
  • Automatic shutdown if hot or cold water fails
  • Temperature limit at 42° which can be increased or decreased upon installation
  • Made out of solid brass with a durable chrome plated finish
  • Fully serviceable from the front for easy maintenance
  • Suitable for high pressure systems only - minimum 1.0 bar required
  • WRAS approved to TMV2
  • 15 year manufacturers guarantee

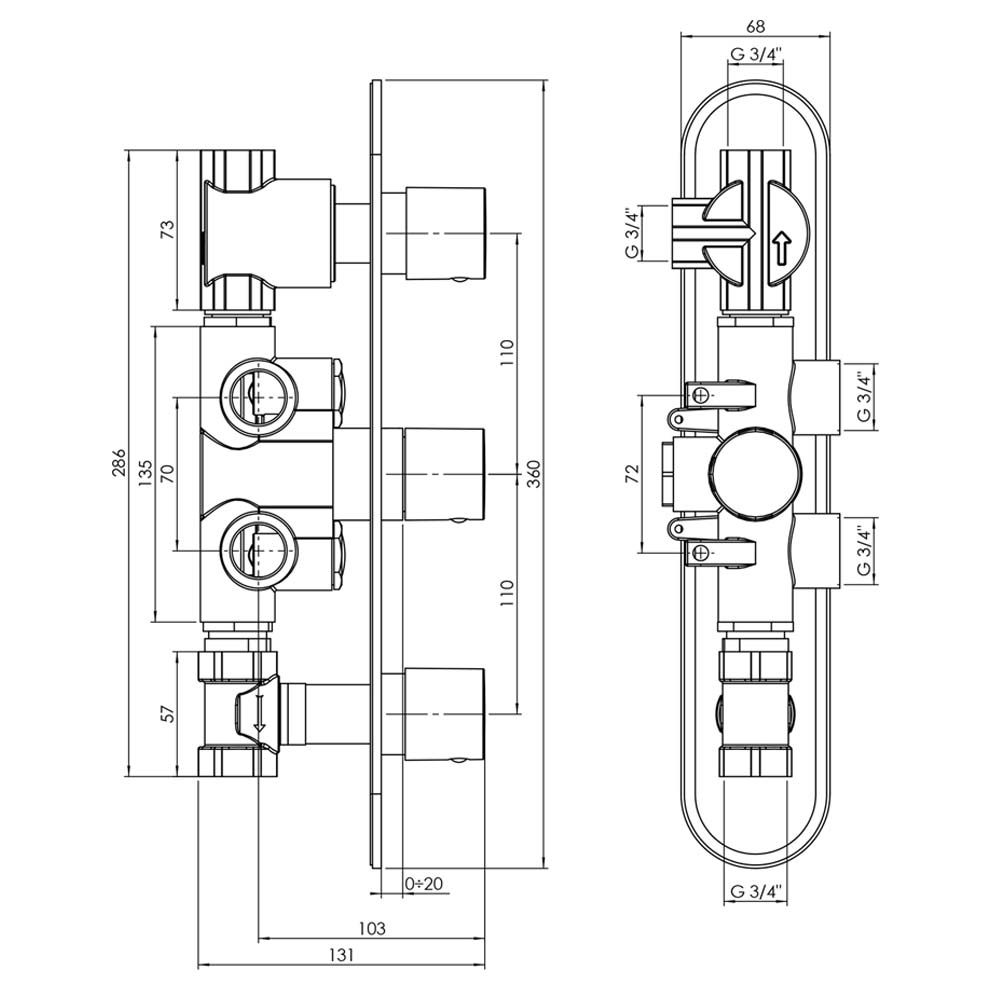

Dimensions:
  • Portrait: W68 x H360mm

Product Overview
Product Code CE3000RC+
Global Trade Item Number 5055833606535
Type Concealed Shower Valves
Brand Crosswater
Brand Range Crosswater Central
GuaranteeMore information 15 Years

Guarantee

Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.

Features
Cartridge TypeMore information Ceramic Disc
Number of OutletsMore information 3 Outlets
Material Brass
Temperature Control Thermostatic

Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.

This indicates how many water outlets you can pair with your shower valves. Choosing valves with more outlets will give you flexibility over the number of products you can add to your shower.

Each outlet from your shower valve will divert water to the section of your shower that needs it, so each extra outlet allows you to add another product. For example: with 1 outlet you could have just a fixed shower head. 2 outlets will allow you to have a fixed shower head and shower handset. 3 will allow both of these with the addition of a body jet.

Style
Shape Round
Mounting Type Wall Mounted
Finish Texture Polished
Finish Chrome
Style Modern
Orientation Portrait
Handle Type Round, Triple Control
Dimensions
Width (mm) 68
Height (mm) 360
Depth (mm) 131
Flow Rate
Minimum Water PressureMore information 1

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
