Crosswater Belgravia Lever Floor Standing Bath Shower Mixer with Shower Kit

Rated 4.00/5 from 2 customer reviews

RRP £1,014 save 28%


Loading delivery estimate...

Pay 3 interest-free instalments of £244.66 with Klarna Learn more about Klarna
Pay 4 interest-free instalments of £183.50 with Clearpay Learn more about Clearpay

What's great about it?

  • Traditionally designed floor mounted bath & shower tap
  • Comes with a shower handset, hose & telephone handset holder
  • Chrome plated finish
  • Ceramic disc technology to ensure no excess dripping or leaks
  • 15 year manufacturers guarantee

Read full product description

Recommended extras

We've hand-picked these items because they are a great choice alongside the Crosswater Belgravia Lever Floor Standing Bath Shower Mixer with Shower Kit

The perfect pairing to a luxurious roll top or traditionally-styled freestanding bath, the Belgravia Lever Floor Standing Bath Shower Mixer with Shower Kit by Crosswater. Mounted on your floor, this beautiful bath and shower mixer tap will complement and enhance the traditional look you've always desired in your bathroom. Exquisitely designed, the tap features elegant curves and rounded shapes with a wide-ended spout that will pour water out in almost a waterfall style into your bath. Controlling the temperature couldn't be easier or smoother thanks to the Ceramic Disc technology hidden inside the classically designed ceramic handled levers. You can also divert water to the ceramic handle shower handset using the authentically styled feature ceramic handle. So now you can easily wash off the bubbles from your hair and body once the finger wrinkles start forming and it's time to get out!

Expertly crafted from the finest Brass, your new Belgravia tap also comes with a choice of finish. Choose between the gorgeous hand-polished Chrome plated finish and the opulent and distinctive Nickel plated finish. Crosswater have also designed a co-ordinating range of basin taps and shower valves in both finishes to complete the look across your whole bathroom. And backed by a 15 year manufacturers guarantee, you can unwind in your bath with peace of mind it has been built to last.

  • Suitable for high pressure systems only - minimum 1.0 bar water pressure is recommended
  • Ceramic disc technology for smooth operation and no excess dripping or leaking once turned off
  • Made from Brass with a Chrome plated finish
  • Shower Kit includes: Ceramic handle shower handset, hose and telephone shower handset holder
  • Waste is sold separately
  • 15 year manufacturers guarantee

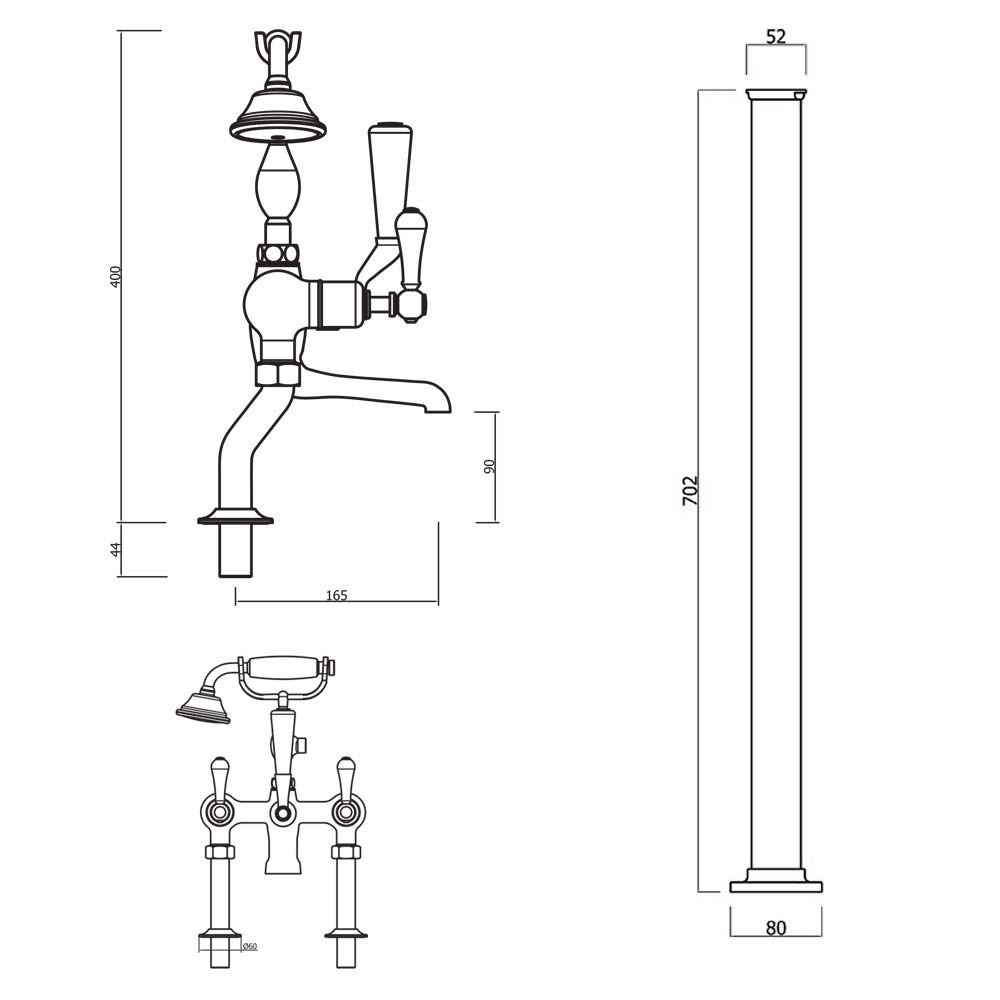

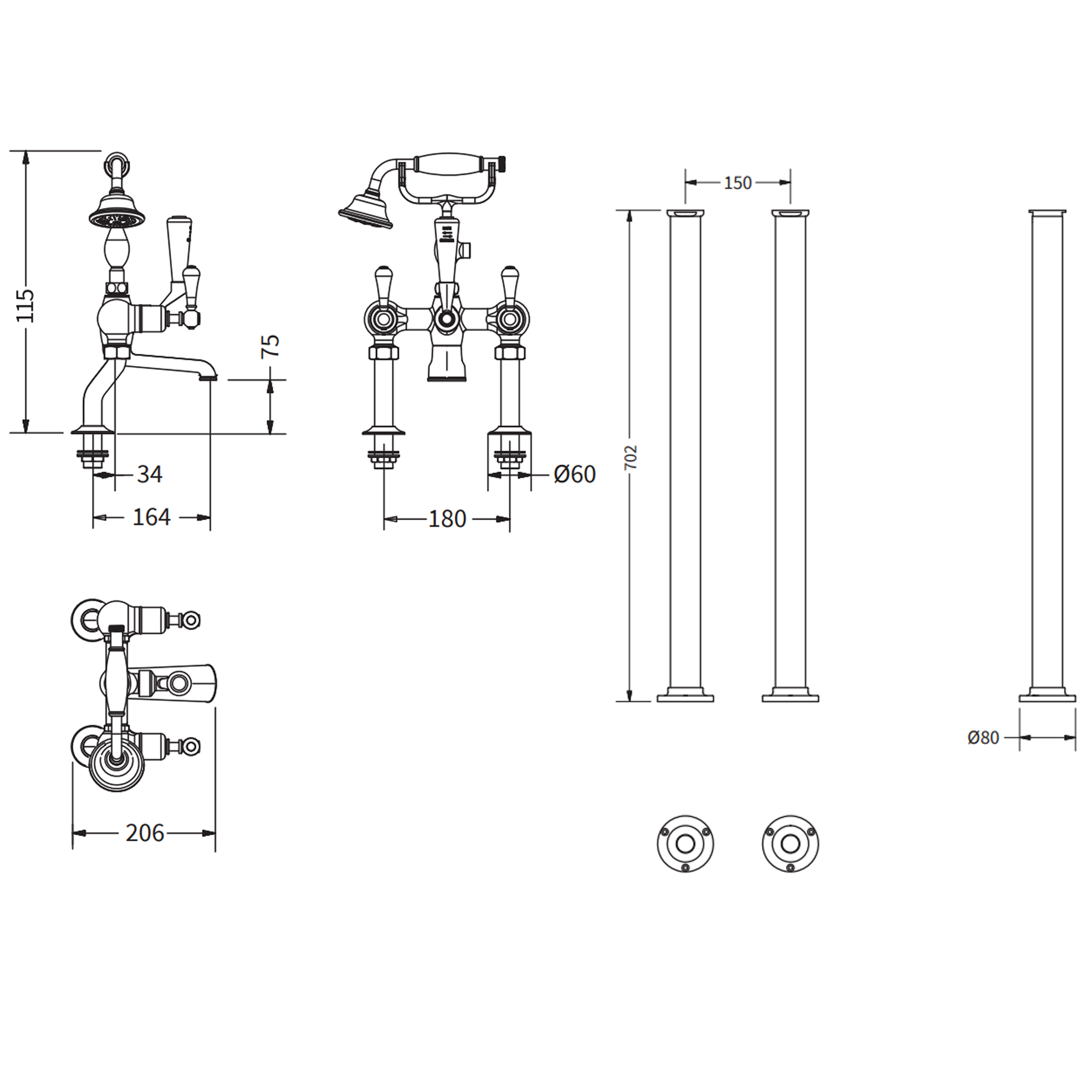

  • Tap Height: 400mm
  • Overall Height: 1102mm
  • Projection: 165mm
  • Hose length: 1500mm
  • Leg adjustment distances: 150mm min - 180mm max

Product Overview
Product Code crosswater-bel-l-bath-shr-tap
Type Bath Shower Mixers, Floorstanding Bath Shower Mixers
Brand Crosswater
Brand Range Crosswater Belgravia Lever
GuaranteeMore information 15 Years


Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.

Cartridge TypeMore information Ceramic Disc
Number of OutletsMore information 2 Outlets
Material Brass
Temperature Control Manual

Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.

This indicates how many water outlets you can pair with your shower valves. Choosing valves with more outlets will give you flexibility over the number of products you can add to your shower.

Each outlet from your shower valve will divert water to the section of your shower that needs it, so each extra outlet allows you to add another product. For example: with 1 outlet you could have just a fixed shower head. 2 outlets will allow you to have a fixed shower head and shower handset. 3 will allow both of these with the addition of a body jet.

Shape Round
Mounting Type Freestanding
Finish Texture Polished
Finish Chrome, White
Style Traditional
Tap Holes 2 Holes
Handle Type Lever, Triple Control
Spout TypeMore information Curved Spout

Tap spouts are available in a variety of different styles which have an effect on both the look and function of your tap. Different spout types will have different heights and projections, so it’s important to choose one which will complement your basin or bath.

Height (mm) 1102
Projection (mm) 165
Flow Rate
Minimum Water PressureMore information 1

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
