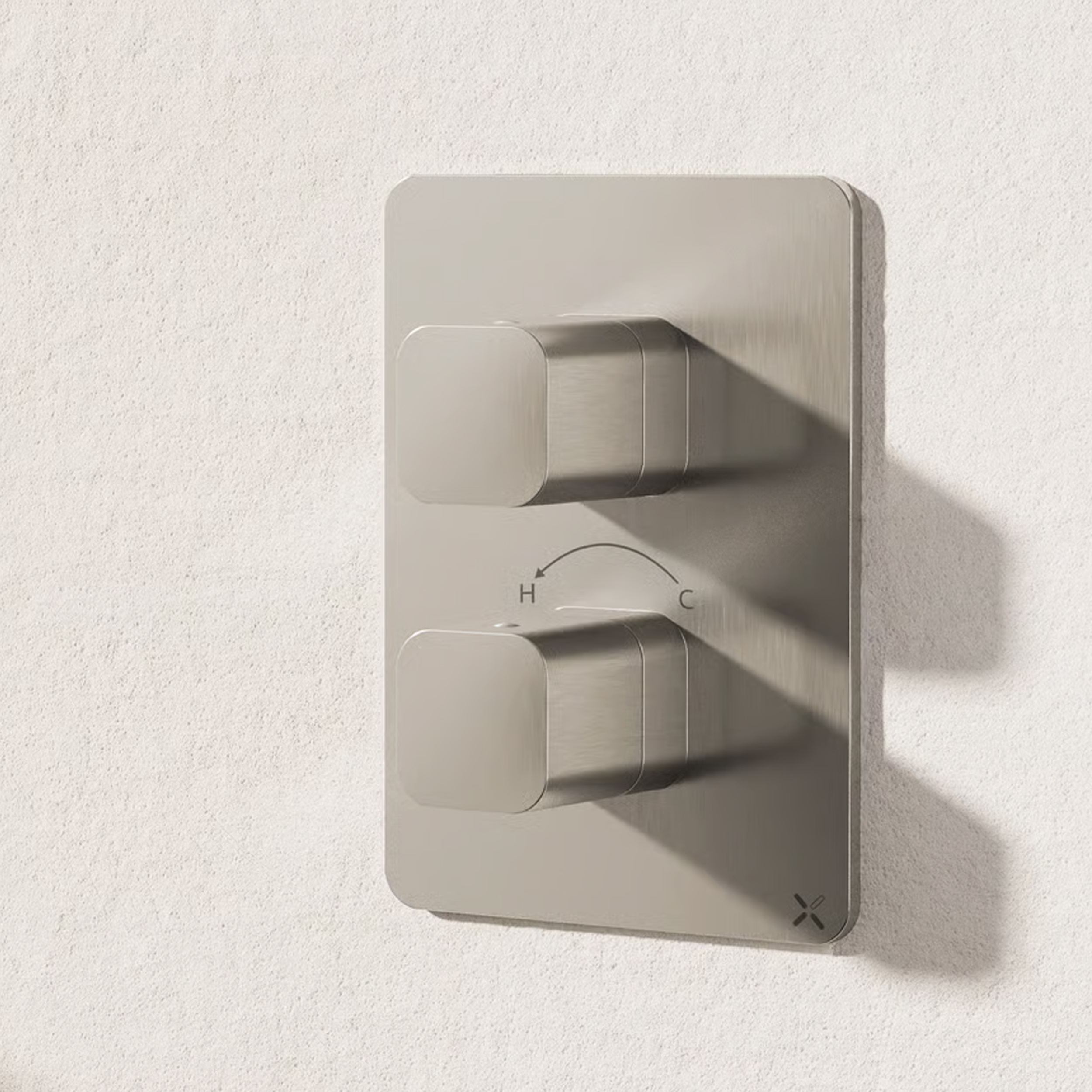

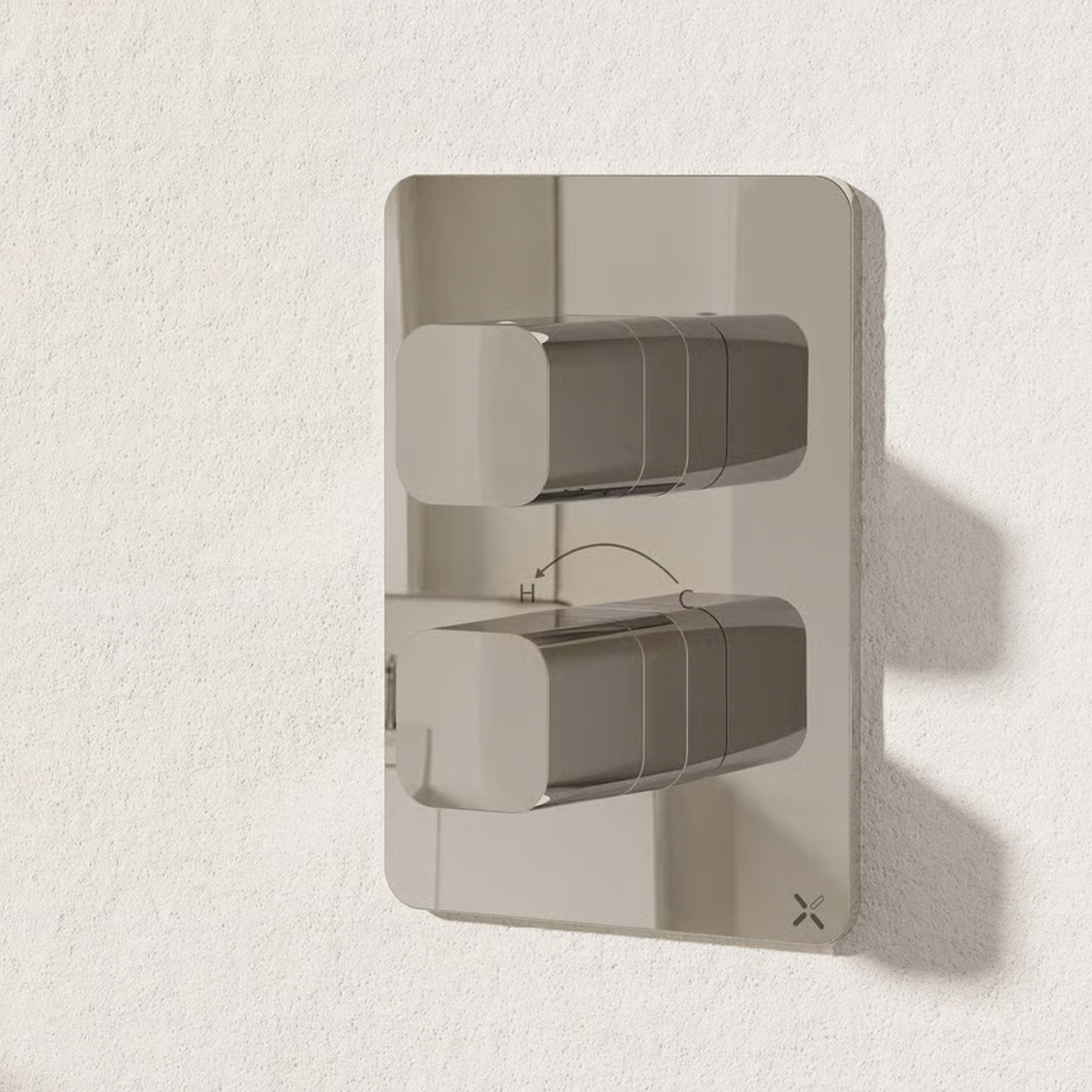

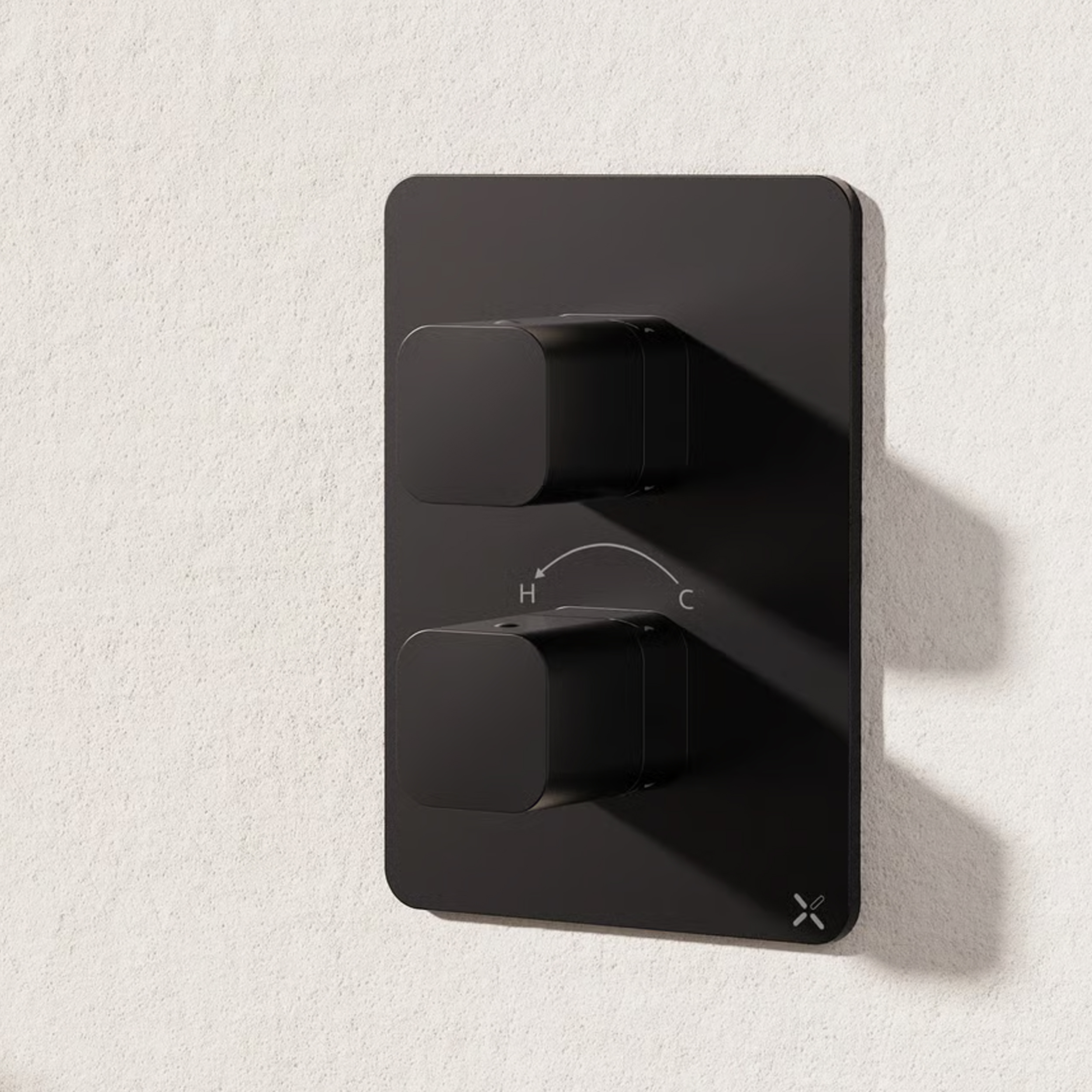

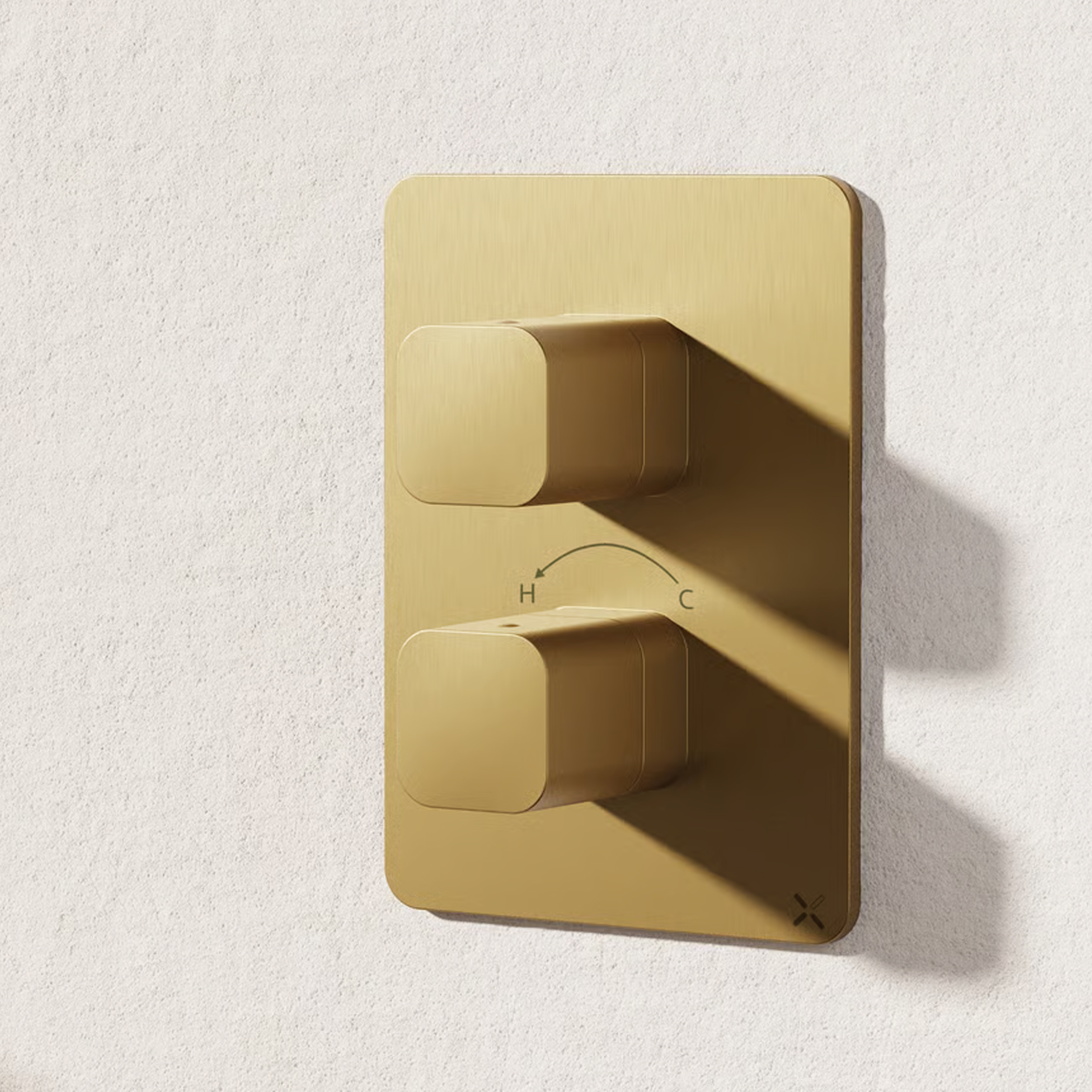

Crosswater Atoll/Glide II 2 Outlet Concealed Thermostatic Shower Valve - Crossbox Technology

No reviews yet - Write one

RRP £760 save 28%

From £549.99

Please select an option

Loading delivery estimate...

Pay 3 interest-free instalments of £183.33 with Klarna Learn more about Klarna
Pay 4 interest-free instalments of £137.50 with Clearpay Learn more about Clearpay

What's great about it?

  • Available in four different finishes
  • Two outlet thermostatic shower valve keeps the temperature where you set it
  • Include the Crosswater Crossbox for quicker easier installation - see our full description for details
  • Minimum 1 bar water pressure required
  • 15 year guarantee from Crosswater

Read full product description

Recommended extras

We've hand-picked these items because they are a great choice alongside the Crosswater Atoll/Glide II 2 Outlet Concealed Thermostatic Shower Valve - Crossbox Technology

What better way to start your day than with a truly sublime showering experience? Of course, if that’s the kind of thing you’re after then you’ll need to get your hands on a luxurious shower valve - such as the Crosswater Atoll/Glide II thermostatic 2 outlet shower valve. Ideal for pairing with a Crosswater shower head and additional handset, this elegant valve is crafted from durable brass and boasts four different finishes to choose from which is bound to keep you happy for years to come.

Those striking square dials offer a touch of contemporary style, whilst the slimline design keeps things minimalist. Supplied with multiple fixing options for hassle-free installation, this delightful Crosswater shower valve ticks all of the boxes both aesthetically and functionally, and even offers some extra reassurance with a 15 year manufacturer’s guarantee.


Crossbox Features:
  • Super slim 60mm installation depth
  • Reduced handle projection and Crosswater's quietest showering experience
  • Latest thermostatic technology to keep you and your family safe - includes automatic shutdown in the event of hot or cold water failure and built-in temperature limits to prevent scalding
  • Minimum 1 bar water pressure required
  • Two stage fixing: install in-wall components and final trim separately - this allows for the trim kit to easily be changed if you're redesigning your bathroom without having to remove the Crossbox
  • Smaller piping footprint as 90° elbows can be fitted directly to the outlets
  • Flush-block testinc plate included and front or rear mounting options available
  • Clearly marked depth guides on the Crossbox allow for easier installation
  • Marked water guides ensure correct outlet selection first time
  • Multiple fixing points for quicker and easier installation
  • Integrated flange seals prevent water ingress

Product Overview
Product Code atoll-glide-ii-2-out-valve-pv
Type Concealed Shower Valves
Brand Crosswater
Brand Range Crosswater Atoll/Glide II
GuaranteeMore information 15 Years


Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.

Cartridge TypeMore information Ceramic Disc
Number of OutletsMore information 2 Outlets
Material Brass
Temperature Control Thermostatic

Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.

This indicates how many water outlets you can pair with your shower valves. Choosing valves with more outlets will give you flexibility over the number of products you can add to your shower.

Each outlet from your shower valve will divert water to the section of your shower that needs it, so each extra outlet allows you to add another product. For example: with 1 outlet you could have just a fixed shower head. 2 outlets will allow you to have a fixed shower head and shower handset. 3 will allow both of these with the addition of a body jet.

Shape Curved
Mounting Type Wall Mounted
Style Modern
Orientation Portrait
Handle Type Dual Control, Square
Width (mm) 130
Depth (mm) 60
Flow Rate
Flow Rate at 1 Bar (l/min) 11.7
Flow Rate at 2 Bar (l/min) 16.4
Flow Rate at 3 Bar (l/min) 20
Flow Rate at 4 Bar (l/min) 23
Flow Rate at 5 Bar (l/min) 25.8
Minimum Water PressureMore information 1

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
