Features:
- Aluminium construction delivering rapid heat-up times and efficient, responsive everyday heating

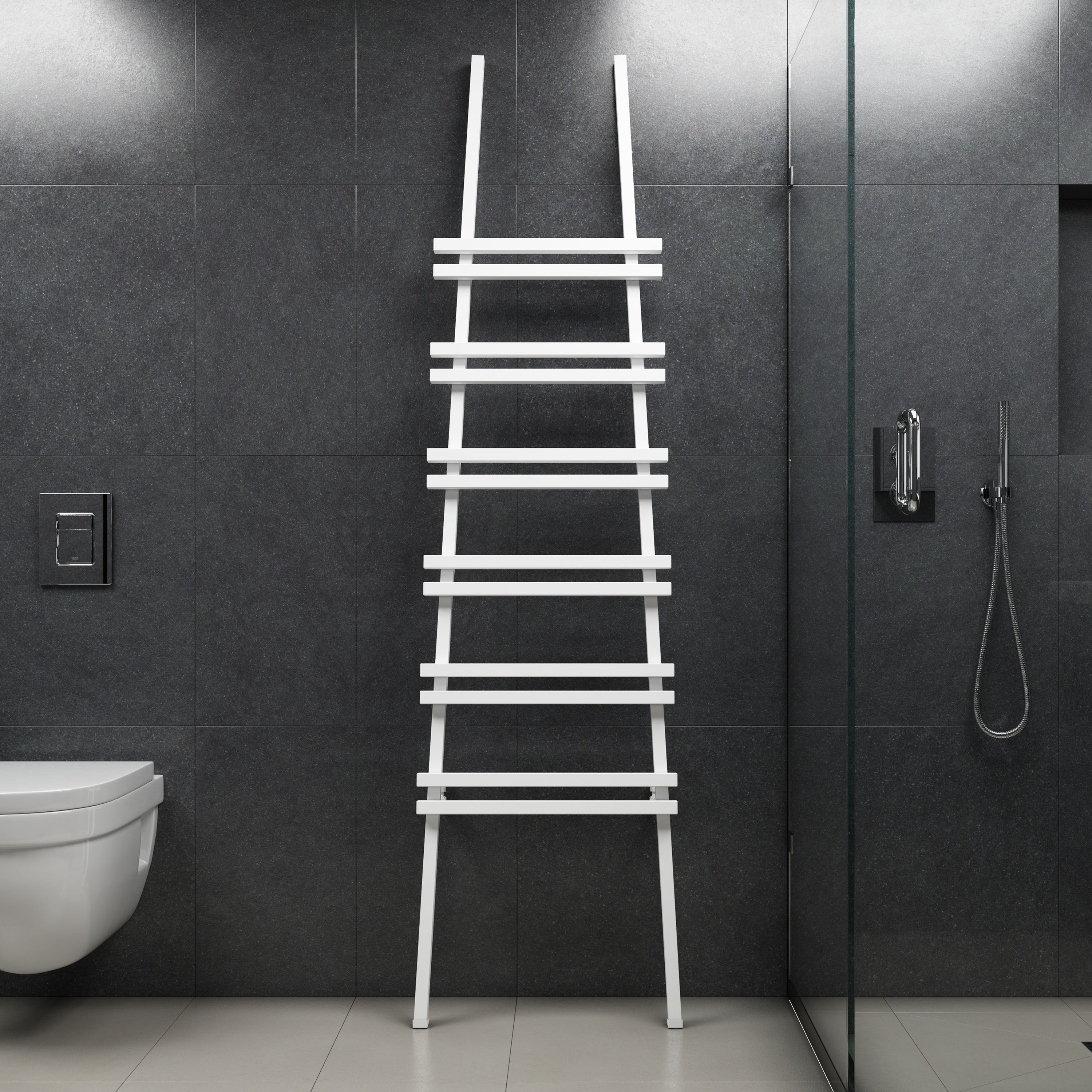

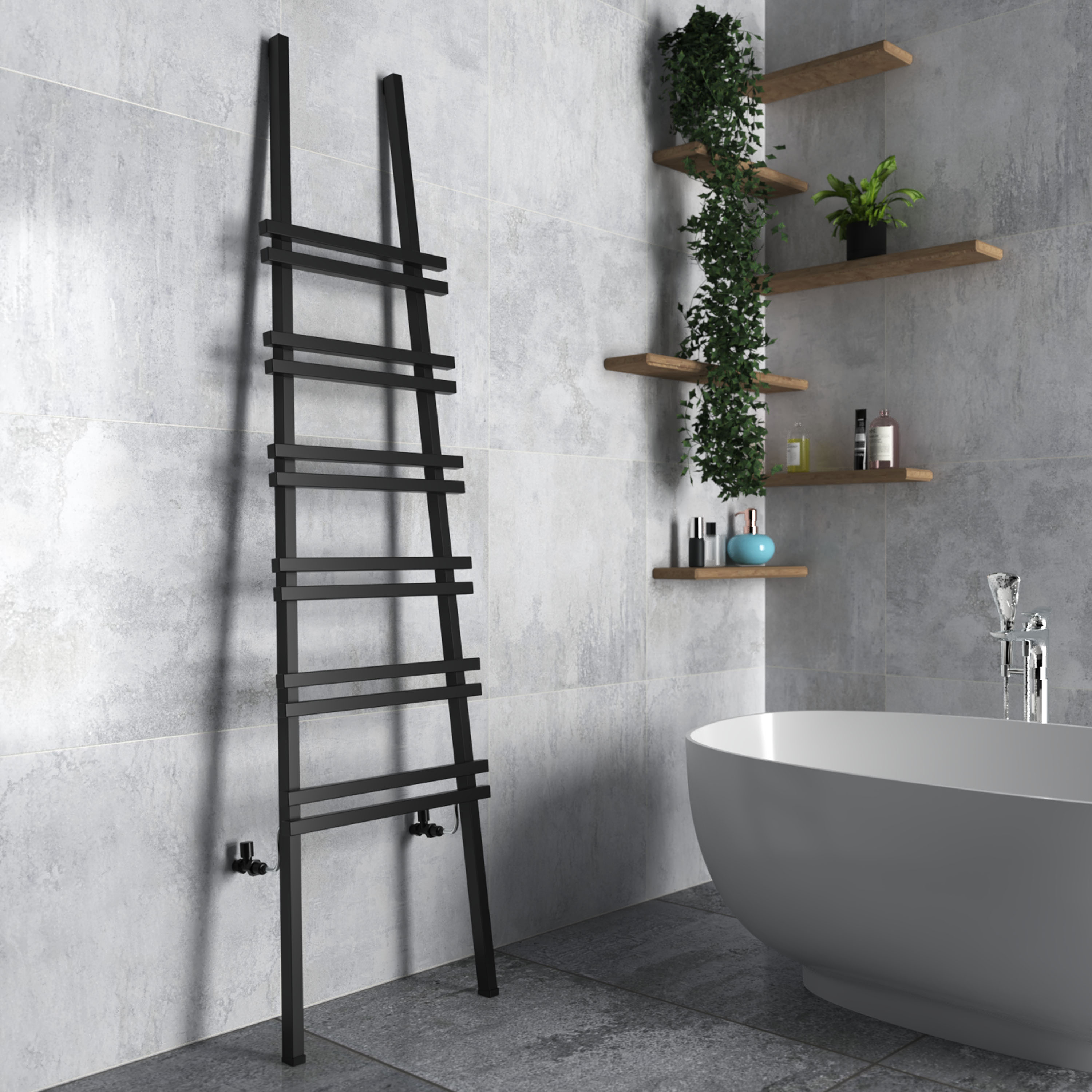

- Striking floor mounted leaning ladder design creates a bold, sculptural bathroom focal point

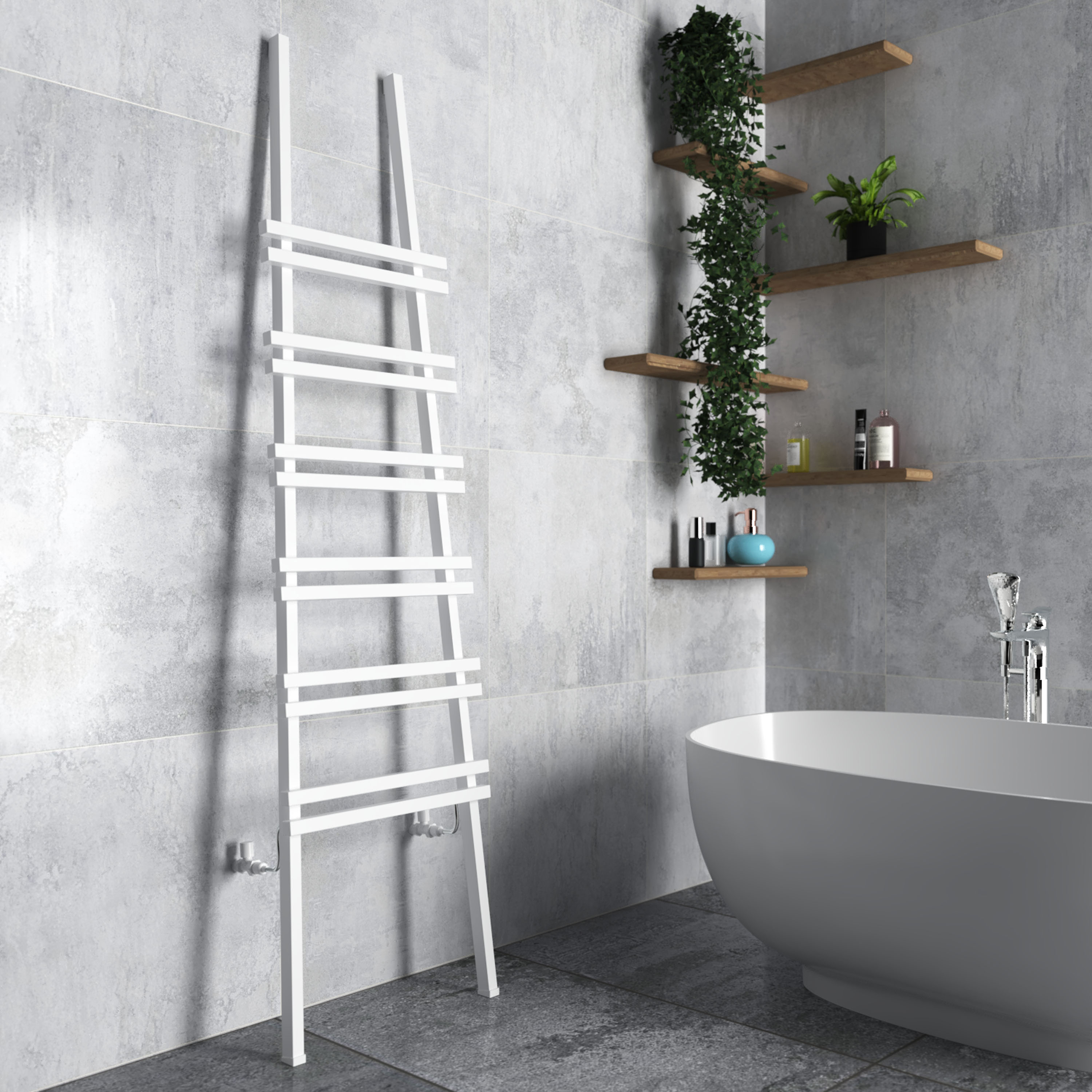

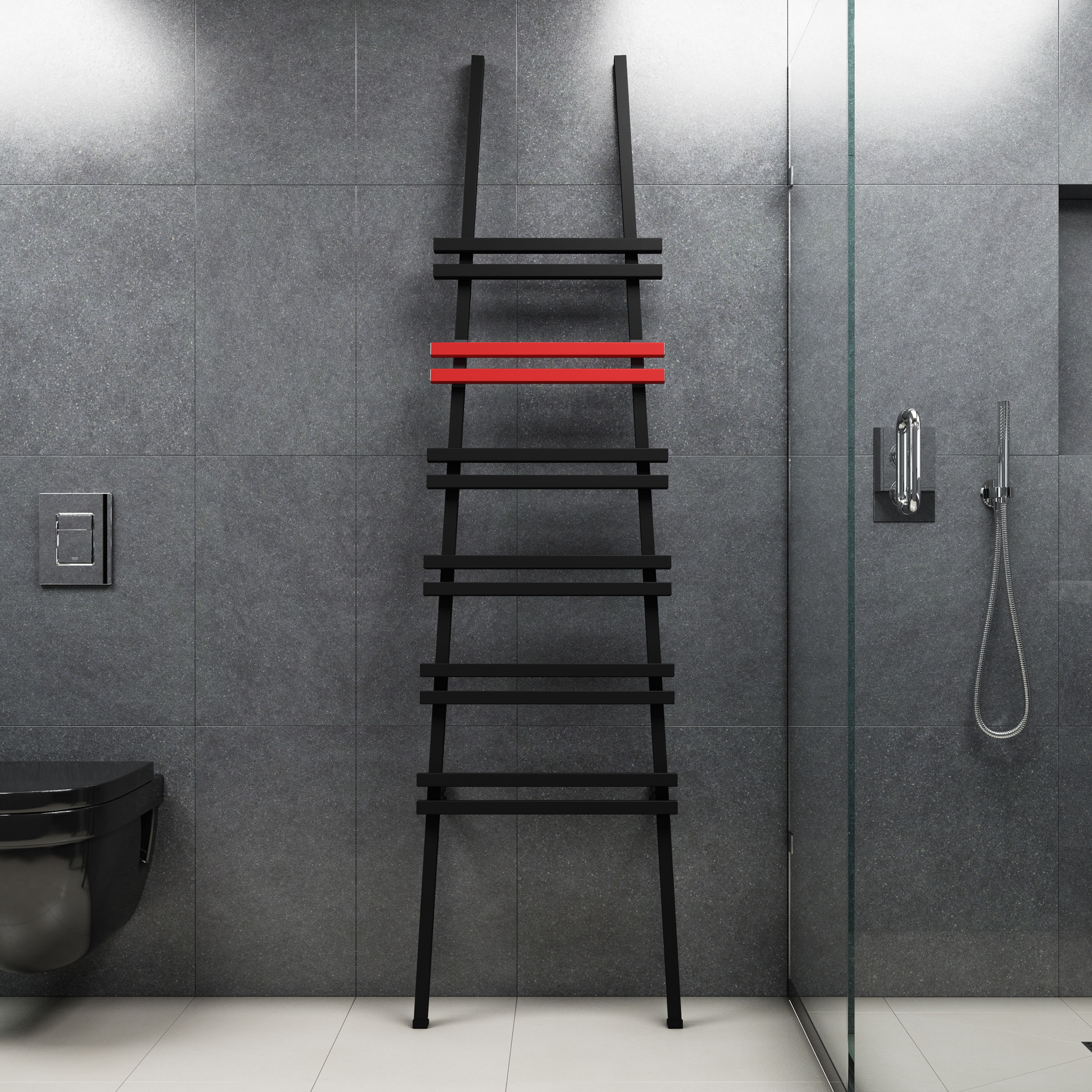

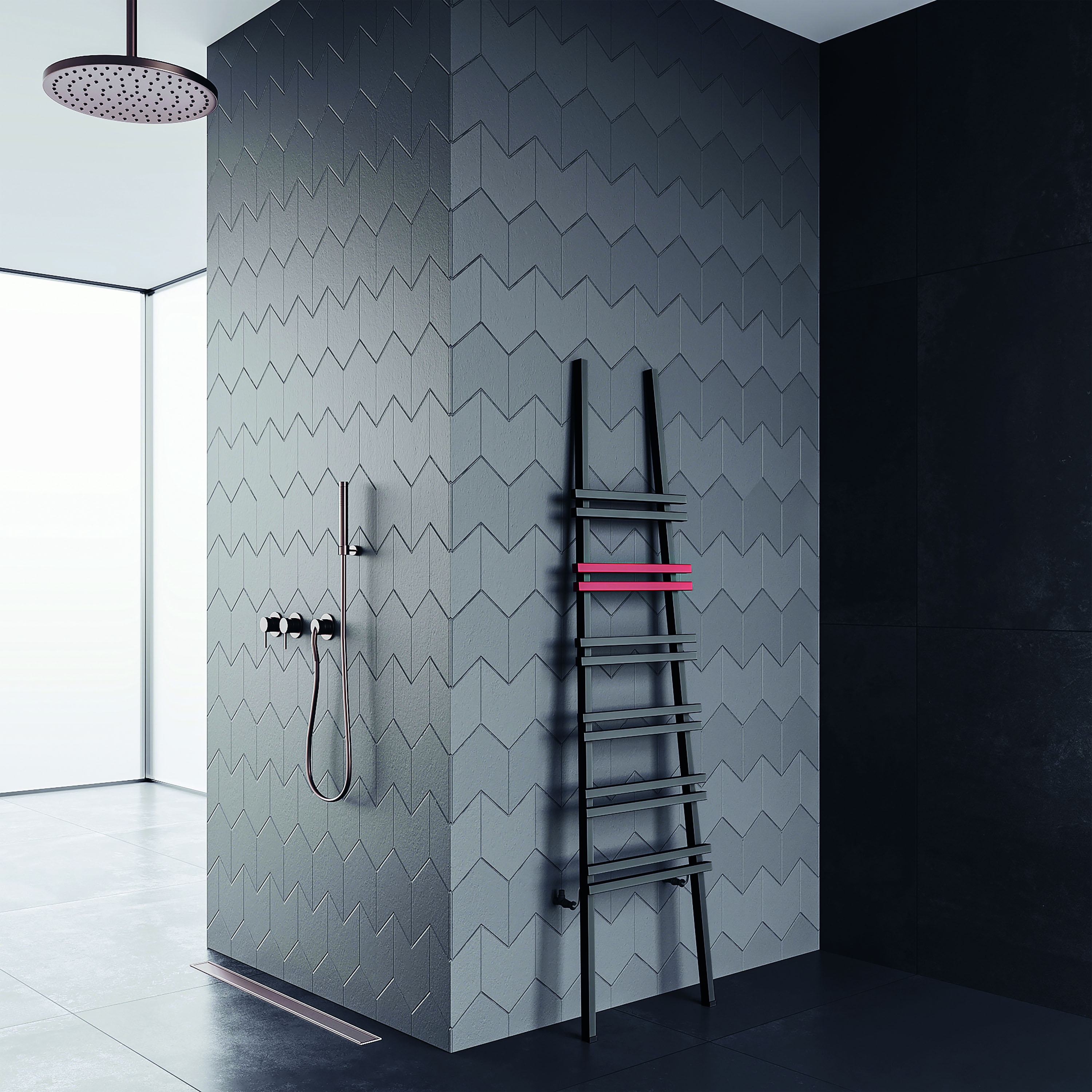

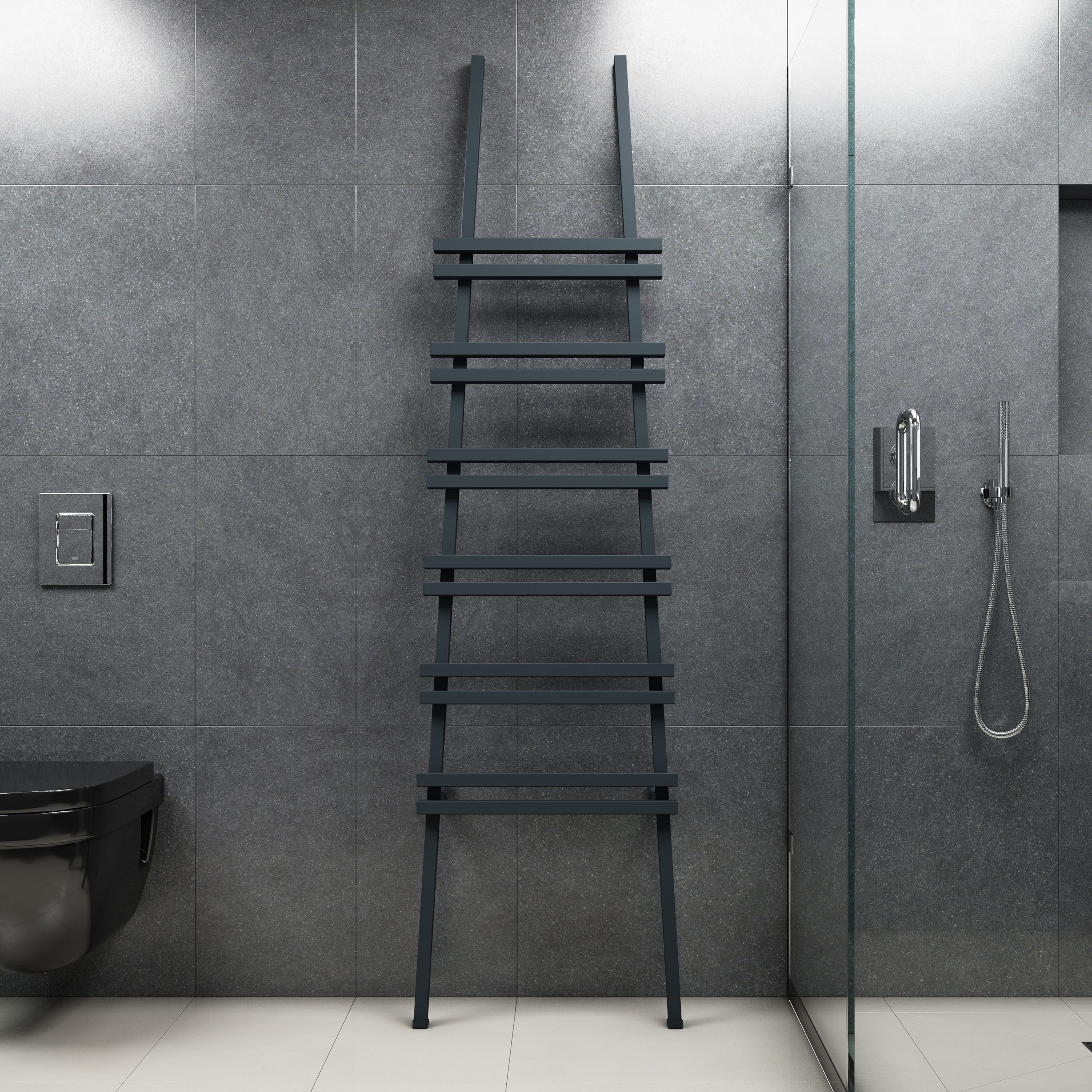

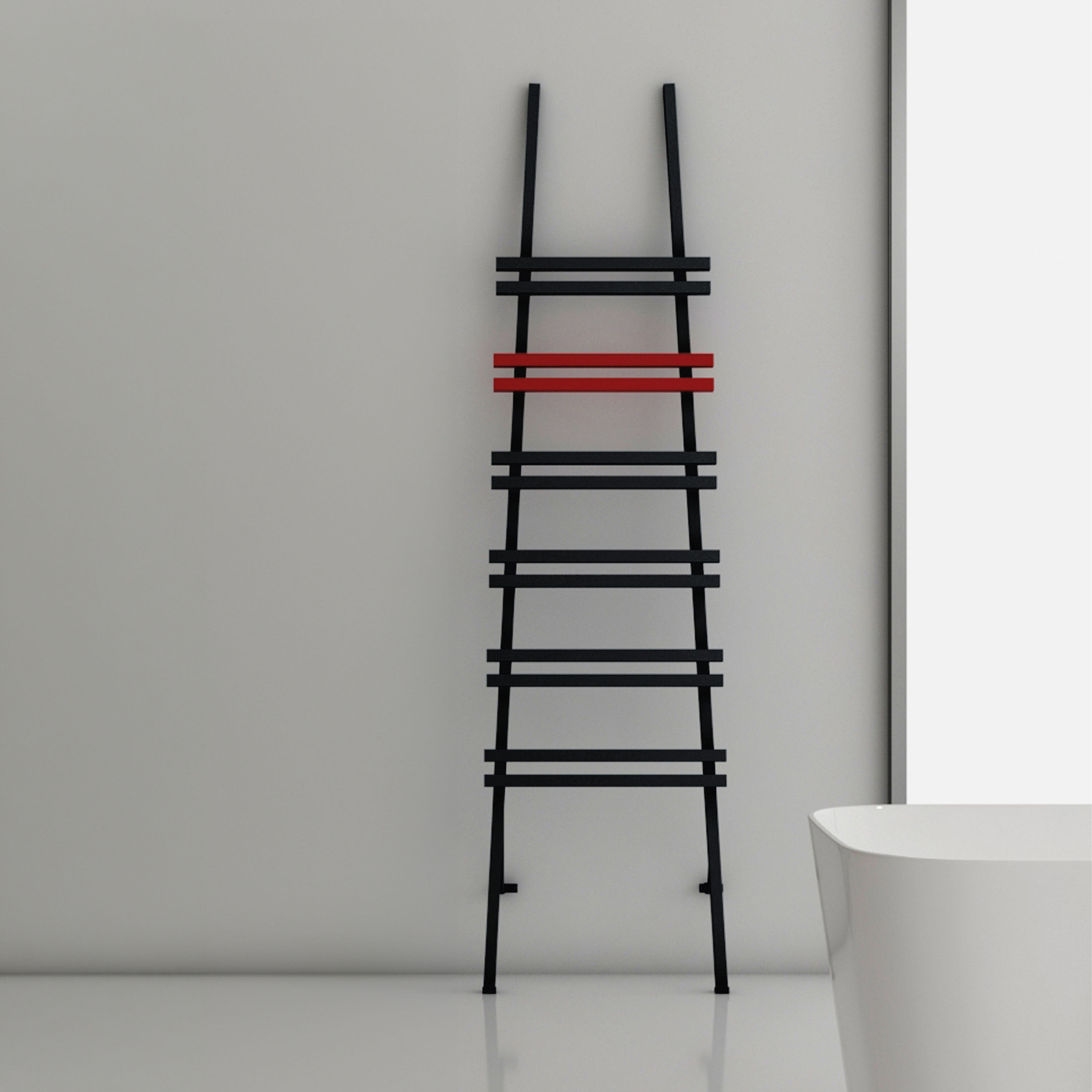

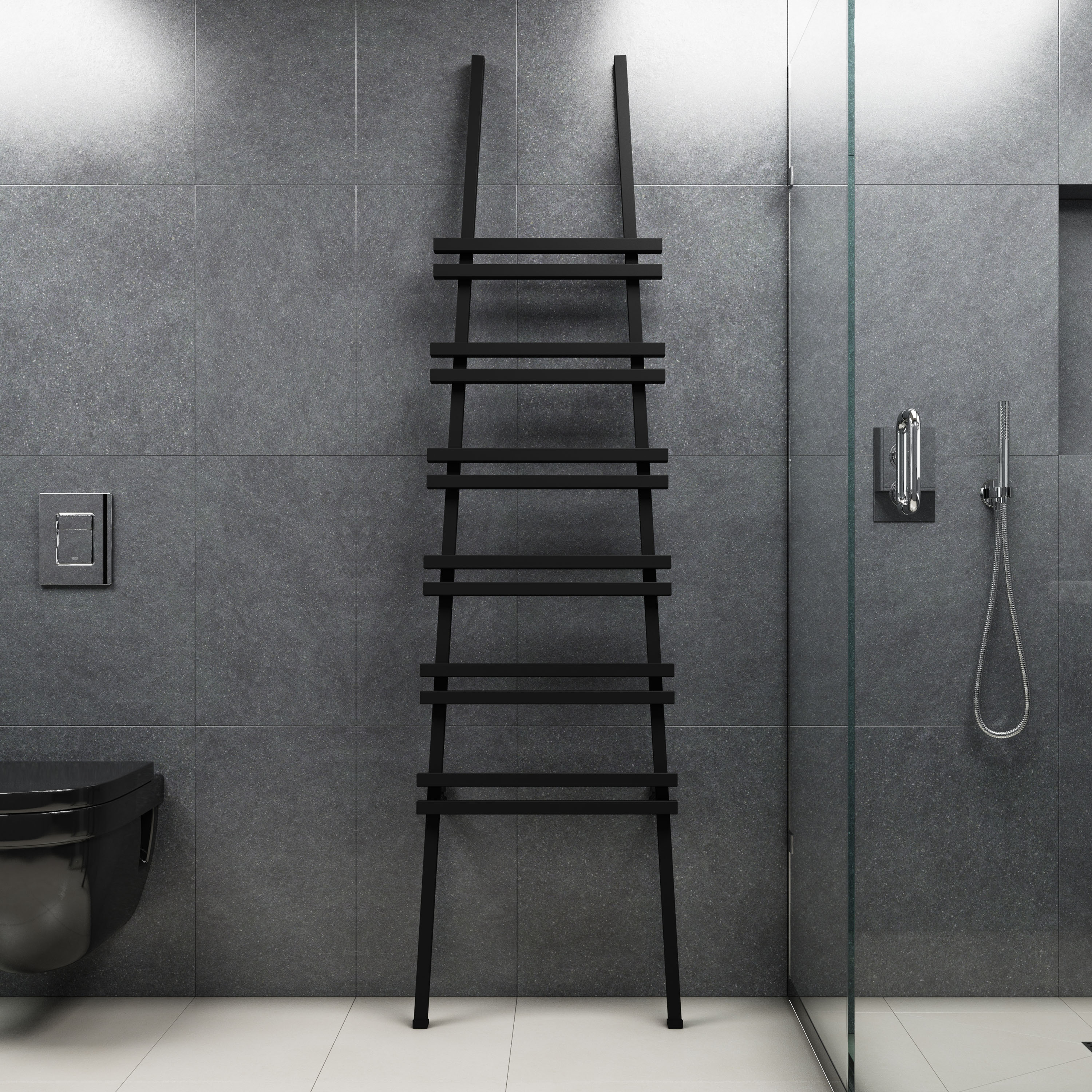

- Available in textured white, textured anthracite and textured black finishes for a refined contemporary aesthetic
- Tall vertical form enhances wall space while maintaining a clean, open architectural feel
- Lightweight aluminium construction for easier installation and improved handling during fitting
- Engineered to deliver consistent ambient warmth across the rail for reliable comfort
- Ideal for modern bathrooms where design impact and functional performance are equally important
- Central heating only for straightforward and dependable system compatibility
- Use our BTU Calculator to select the correct size and heat output for your space
- Tested to BS EN 442 (ΔT70) standards for certified performance, safety and quality
- Tested up to 10 bar for reliable system operation
- Maximum working temperature of 95°C for stable heat delivery
- Standard ½" connections for UK system compatibility

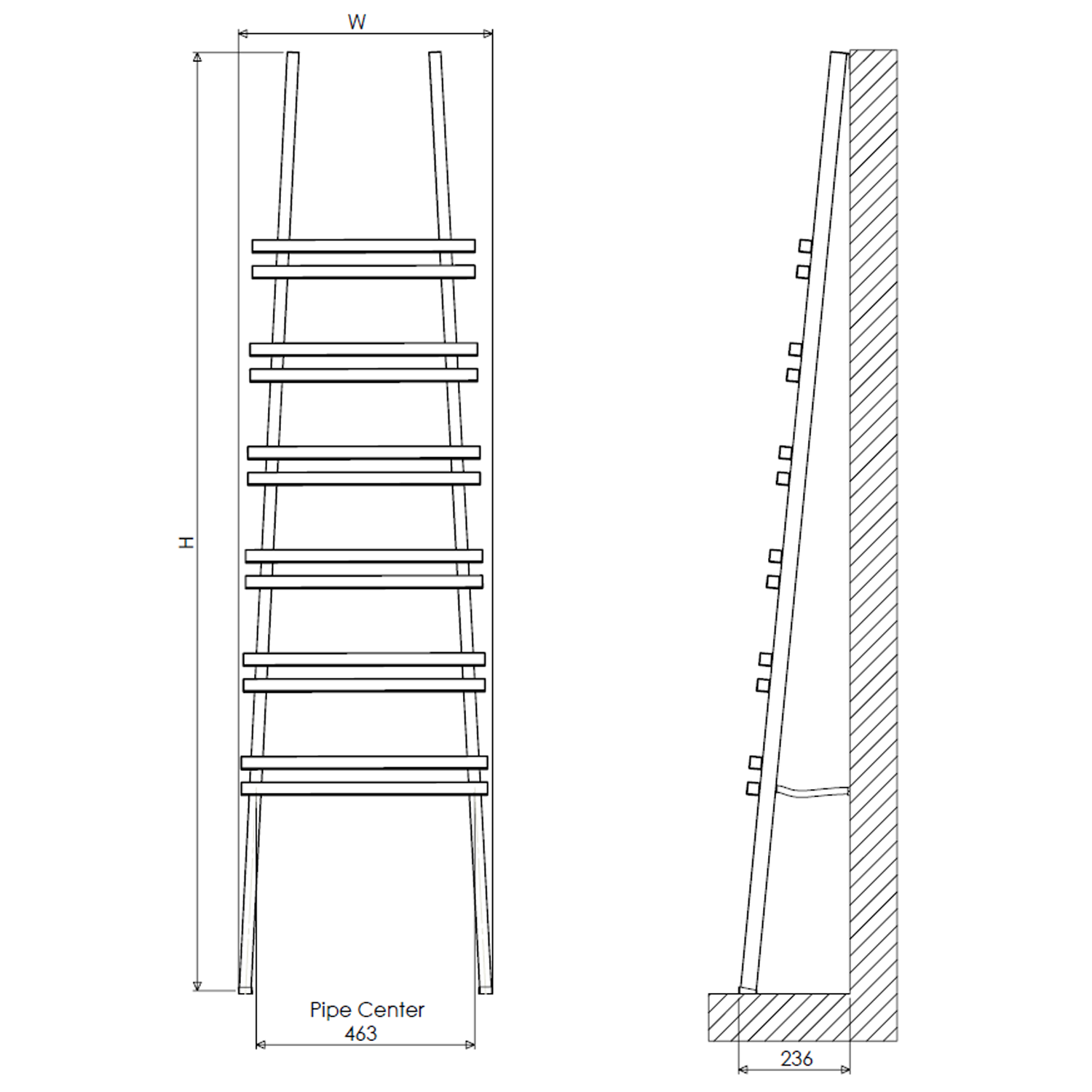

- Pipe centres of 463mm for accurate installation alignment
- Wall to centre tapping of 67mm for precise fitting
- Wall to face measurement of 111mm for balanced installation depth
- Radiator valves sold separately, please see our recommended extras
- Supplied with wall brackets and fixings for straightforward installation
- Backed by a 5 year manufacturer’s guarantee
 Installation Instructions
|
|---|
| Product Code | carisa-jacobs-flr-heated-twl-rad |
|---|---|
| Type | Designer Heated Towel Rails, Flat Towel Rails, Heated Towel Rails, Ladder Towel Rails |
| Brand | Carisa |
| Brand Range | Carisa Jacobs |
| GuaranteeMore information | 5 Years |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Number of SectionsMore information | 6 Sections |
|---|---|
| Number of Tubes | 12 Tubes |
| Number of GapsMore information | 5 Gaps |
| Material | Aluminium |
When looking straight on at your radiator, this is the number of individual sections with gaps in between you’ll be able to see. A section can have multiple columns within it, the number of sections relates to how many rows of columns your radiator has.
This is an indication of the number of spaces there are between the sections of your radiator. For example, a radiator with 3 sections will have 2 gaps.
| Shape | Flat, Straight |
|---|---|
| Mounting Type | Floor Mounted |
| Style | Modern |
| Orientation | Vertical |
| RAL Code | Select an option first |
| Finish Texture | Select an option first |
| Finish | Select an option first |
| Wall to Face (mm)More information | 111 |
|---|---|
| Wall to Pipe Centres (mm)More information | 67 |
| Wall Distance (mm)More information | 49 |
| Width (mm) | 535 |
| Height (mm) | 2000 |
| Depth (mm) | 111 |
| Projection (mm) | 111 |
| Pipe Centres (mm)More information | 463 |
Wall to face is the distance from the wall to the furthest point on the front of the radiator. This figure is an indicator of how far your product will protrude into the room.
This measurement will show you how far from the wall the centre of the pipes for your radiator will need to be. It is an indication of how far away the pipe inlets for the radiator need to be from the wall which is useful if you are looking to install a radiator using your existing pipework.
This is a measure of the gap between the back of the radiator and the wall. Wall distance is an indication of how much space there will be behind your radiator.
This is the distance between the centre of the two pipe inlets on your radiator or towel rail. This figure is an indication of where the two pipes for your radiator will need to go and can be helpful if you want to install a radiator using your existing pipes.
| Fuel SourceMore information | Central Heating |
|---|---|
| Heat Output (BTU∆t 50ºC) | Select an option first |
| Heat Output (Watts∆t 50ºC) | Select an option first |
| Heat Output (BTU∆t 30ºC) | Select an option first |
This is the source of fuel your radiator or towel rail will use to provide heat. Radiators will generate heat through central heating systems, electricity, or a combination of both with dual fuel.
Central Heating:
These radiators will generate heat through the water pumped round your central heating system.
Electric:
Electric radiators contain fluid heated by an electrical element. They plug into a socket or are wired directly into the mains.
Dual Fuel:
Dual fuel radiators are able to run on both central heating and electric power. They contain a ‘summer’ heating element which will allow you to use your radiator in warmer months without needing to turn on your entire central heating system.
