Butler & Rose Tim Traditional Bath Pillar Taps

Loading delivery estimate...

Klarna
Pay 3 interest-free instalments of £12.66 with Klarna Learn more about Klarna
Clearpay
Pay 4 interest-free instalments of £9.50 with Clearpay Learn more about Clearpay

What's great about it?

  • Traditionally designed pair of bath pillar taps, ideal in giving a refined sense of style
  • Manufactured from reliable solid brass in a Polished Chrome finish that adds sleek appeal
  • H: 179mm, W: 64mm, D: 90mm
  • Fitted with quarter-turn ceramic disc cartridge valves for longevity and easy operation
  • Separate pillar taps give greater control of hot and cold flows to suit your needs

Full details

The Drench difference

3D Design Service

We've helped thousands of customers create their dream space. More

Free consultations

Book a chat with our bathroom experts. More

Rated 'Excellent'

Delighting customers for 10+ years. See reviews

90 days to change your mind

+ optional specialist collection service. See policy

Free delivery over £500

Standard delivery to most of UK, plus discounted next day rates too. See policy

Features:
  • Stunning traditional design
  • High quality polished chrome finish
  • Ceramic disc technology - no drips and easier to use handles
  • Minimum 0.5 bar water pressure
  • 2 year guarantee

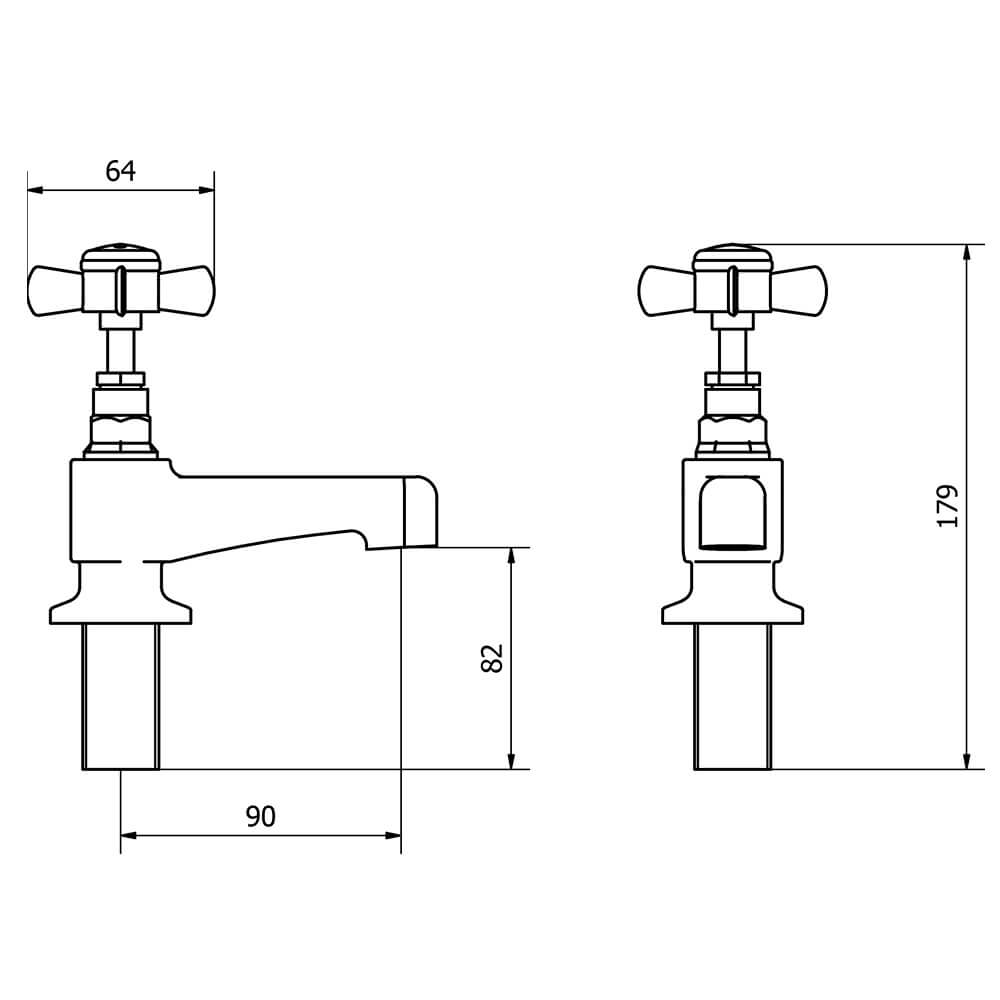

Dimensions:
  • Overall height - 179mm
  • Spout exit height - 82mm
  • Projection - 90mm

Downloads
Cleaning Instructions
Product Overview
Product Code TIM005
Type Bath Fillers, Bath Pillar Taps
Brand Butler & Rose
Brand Range Butler & Rose Tim
GuaranteeMore information 2 Years

Guarantee

Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.

Features
Cartridge TypeMore information Ceramic Disc
Number of OutletsMore information 2 Outlets
Temperature Control Manual

Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.

This indicates how many water outlets you can pair with your shower valves. Choosing valves with more outlets will give you flexibility over the number of products you can add to your shower.

Each outlet from your shower valve will divert water to the section of your shower that needs it, so each extra outlet allows you to add another product. For example: with 1 outlet you could have just a fixed shower head. 2 outlets will allow you to have a fixed shower head and shower handset. 3 will allow both of these with the addition of a body jet.

Style
Shape Round
Mounting Type Deck Mounted
Finish Texture Polished
Finish Polished Chrome
Style Traditional
Tap Holes 2 Holes
Handle Type Crosshead, Dual Control
Spout TypeMore information Straight Spout

Tap spouts are available in a variety of different styles which have an effect on both the look and function of your tap. Different spout types will have different heights and projections, so it’s important to choose one which will complement your basin or bath.

Dimensions
Height (mm) 179
Projection (mm) 90
Flow Rate
Minimum Water PressureMore information 0.5

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
