Vellamo Quadro Bath Filler Tap

Rated 4.84/5 from 31 customer reviews

RRP £144.65 save 45%

£79.99 was £89.99

In stock | Get it tomorrow

Order by 4pm and select Next Day Delivery (S)

Delivery from £3.99. Spend £500+ for free delivery*. Read full delivery info

What's great about it?

  • High quality chrome plated bath filler
  • Ceramic disc technology
  • 0.5 bar min pressure
  • 10 year manufacturer's guarantee

Read full product description


Recommended extras

We've hand-picked these items because they are a great choice alongside the Vellamo Quadro Bath Filler Tap

Vellamo Quadro Bath Filler Tap

The Quadro Bath Filler Tap from Vellamo is one of our most popular bath fillers. The Vellamo Quadro features a smooth angular shape with simple functioning lever controlled tap heads, the ease of use and minimalistic design of this tap allow it to stand out from the crowd.

High quality chrome plated brass ensure that the Vellamo Quadro has a very clean and classy appearance. A generous 10 year manufacturer's guarantee and ceramic disc technology clearly prove that this tap was built to last, and even if there are any unlikely unforeseen problems, spare parts are readily available.

High quality chrome plated brassware
Ceramic disc technology
0.5 bar min pressure
Bath waste sold separately - please see our recommended extras
10 year manufacturer's guarantee

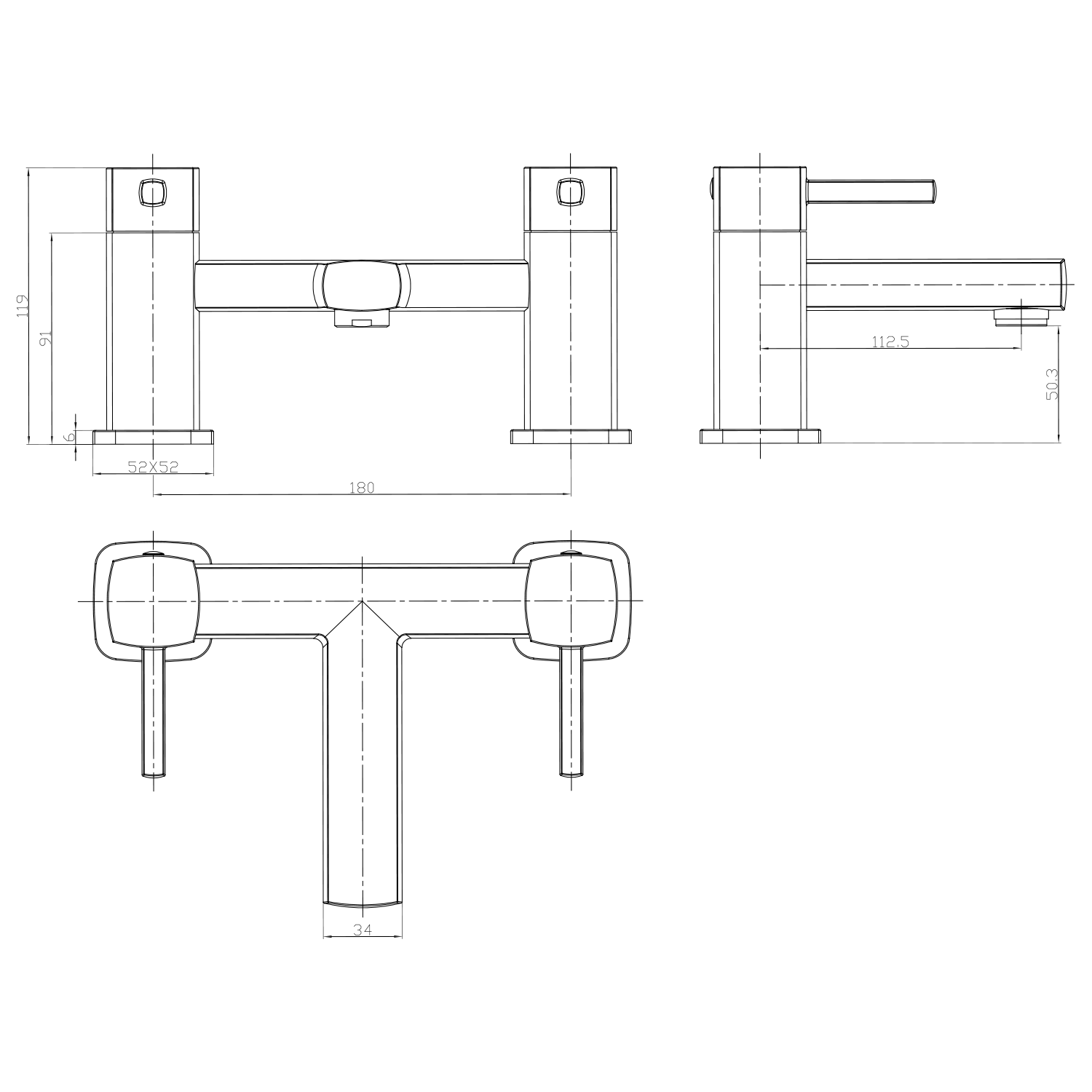

Height: 120.5mm
Width: 232mm
Projection: 112.5mm
Product Code VELQUAD05
Type Bath Fillers
Global Trade Item Number 7081246060174
Width (mm) 232
Brand Vellamo
Brand Range Vellamo Quadro
Shape Square
Mounting Type Deck Mounted
Popular Features Ceramic Disc Technology
Material Brass
Cartridge TypeMore information Ceramic Disc
Finish Chrome
Promotions Sale
Style Modern
Tap Holes 2 Holes
Projection (mm) 113
Minimum Water PressureMore information 0.5
GuaranteeMore information 10 Years
Handle Type Lever, Dual Control
Spout TypeMore information Straight Spout
Flow Rate at 0.5 Bar (l/min) 15.2
Flow Rate at 1 Bar (l/min) 25.2
Flow Rate at 2 Bar (l/min) 33.2
Flow Rate at 3 Bar (l/min) 42

Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.


Please note that these guarantees are provided by the manufacturer, and will be subject to individual terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.

Tap spouts are available in a variety of different styles which have an effect on both the look and function of your tap. Different spout types will have different heights and projections, so it’s important to choose one which will complement your basin or bath.
