Vellamo Blade Quadro Thermostatic Exposed Shower System

Rated 5.00/5 from 10 customer reviews

RRP £453.34 save 49%

£229.99

Delivery from Tuesday 25th May Help?

Too long to wait? View similar products with next day shipping

Delivery from £3.99. Spend £500+ for free delivery*. Read full delivery info

What's great about it?

  • Height adjustable
  • 0.5 bar minimum pressure required
  • Italian-made thermostatic cartridge
  • WRAS & TMV2 approved
  • Lifetime manufacturer’s guarantee

Read full product description

Recommended extras

We've hand-picked these items because they are a great choice alongside the Vellamo Blade Quadro Thermostatic Exposed Shower System

Description

Vellamo Blade Quadro Thermostatic Exposed Shower System


The cool, sharp and sophisticated look of this stunning square exposed shower kit led to an even cooler and sharper name to be appointed to it. Witness perfection with this Vellamo Blade Quadro Thermostatic Exposed Shower System. With a thermostatic bar shower valve, fixed shower head, handset, shower hose and height adjustable riser rail all included. It will make your job of finding a new shower 10 times easier, as with the Vellamo Blade Quadro you are all sorted and ready to go!

Don’t worry about matching shower heads to valves, instead rejoice at the amazing competitive price of this all-inclusive shower system! Also don’t think that it’s skimping on quality thanks to its amazing price tag, as this gorgeous shower comes with WRAS & TMV2 approval, which is only given to products that raise the bar in providing you with an exceptional product. Now for the next long list of benefits we’ll have to take a deep breath.
Right.

Bask in the glory of an Italian-made thermostatic cartridge which has a handy safety feature that will automatically shut off in the event of water failure, protecting you from getting scalded. In addition to this, it also comes with rubber nozzles that will help to make cleaning and maintaining a dream. Also enjoy the benefit a versatile 200mm sleek shower head that can be tilted forwards, backwards or left and right. Finally, you’ll also receive a fabulous lifetime manufacturer’s guarantee too! Phew, sorry there are too many features that come with this shower system it's hard to say it all at once.

Features :
Exposed shower set including thermostatic mixing valve, fixed shower head, handset, shower hose and height adjustable riser rail
Suitable for all water systems including low pressure
Height adjustable between 1000 – 1200mm
Stainless steel shower head with brass construction
Rubber nozzles that are easy to clean
Versatile 200mm slimline shower head can be tilted forwards, backwards, left and right
Italian-made thermostatic cartridge will automatically shut off in event of water failure
WRAS Approved
TMV2 Approved
Minimum pressure required 0.5 bar
Shower tray and waste sold separately please see our recommended extras
Lifetime manufacturer’s guarantee

Flow Rates :
0.5 Bar: 11.36L/M

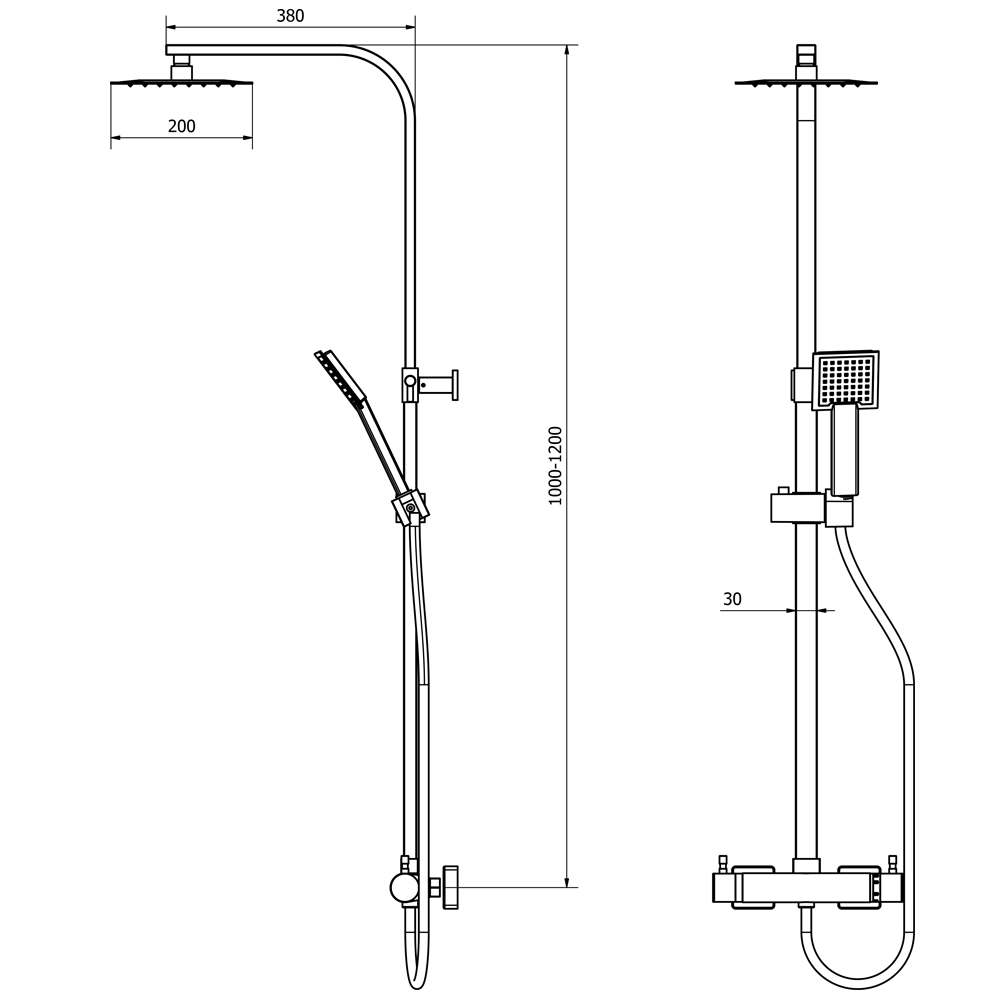

Dimensions :
Height: 1200mm
Depth: 380mm
Specification
Product Code XA005A
Global Trade Item Number 5075507401006
Type Exposed Shower Sets, Exposed Valve Rigid Riser Sets
Brand Vellamo
Brand Range Vellamo Blade
Minimum Water PressureMore information 0.5
Finish Chrome
Number of OutletsMore information 2 Outlets
Material Brass
Shape Square
Style Modern
Temperature Control Thermostatic
Mounting Type Wall Mounted
Handle Type Round, Dual Control
Popular Features Easy Clean Nozzles
Height (mm) 1200
Depth (mm) 380
Flow Rate at 0.5 Bar (l/min) 11.36
GuaranteeMore information Lifetime

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.

This indicates how many water outlets you can pair with your shower valves. Choosing valves with more outlets will give you flexibility over the number of products you can add to your shower.

Each outlet from your shower valve will divert water to the section of your shower that needs it, so each extra outlet allows you to add another product. For example: with 1 outlet you could have just a fixed shower head. 2 outlets will allow you to have a fixed shower head and shower handset. 3 will allow both of these with the addition of a body jet.
