Ideal Standard Ceraplan Bath Filler Tap

No reviews yet - Write one

Loading delivery estimate...

Klarna
Pay 3 interest-free instalments of £66.66 with Klarna Learn more about Klarna
Clearpay
Pay 4 interest-free instalments of £50.00 with Clearpay Learn more about Clearpay

What's great about it?

  • High quality chrome plated brass finish for a modern design
  • FirmaFlow® ceramic disc cartridges save you money on your water bill
  • Temperature limit stop - built-in safety feature to prevent scalding
  • Economic aerator to help reduce excess water
  • 5 year manufacturer's guarantee

Read full product description

Recommended extras

We've hand-picked these items because they are a great choice alongside the Ideal Standard Ceraplan Bath Filler Tap

Features:
  • Beautiful bath filler tap with an easy to operate single lever handle
  • Made from brass with a chrome plated finish to add a modern touch to your bathroom
  • FirmaFlow® uses improved Click Technology with a mechanical stop to limit tap water flow to just the amount required and assists in maintaining flow consistency, while reducing usage by up to 50%
  • FirmaFlow® also uses ceramic disc cartridges which will save you money on your water bill and provide you with superior safety
  • Economic 5L/min aerator - this is an environmentally friendly, removable feature which limits the maximum flow rate whilst fusing air into the water flow. This results in a soft and bubbly flow of water
  • LightMove® technology helps provide finer temperature adjustment between 34°C and 42°C, ensuring easier handle movement and control
  • Temperature limit stop is an adjustable setting that controls and limits the water temperature to your preference to avoid scalding. Ideal for family homes and provides peace of mind
  • EasyFix® system allows one-man installation thanks to the preassembled components that ensures a faster, hassle-free installation and saves up to 30% of the installation time
  • WRAS approved - this product is certified in compliance with the Water Regulations Advisory Scheme. To find out more information of the WRAS approval scheme, please see our blog post here
  • Comes with flexible tails to simplify and speed up installation
  • Suitable for all water systems including high pressure systems
  • SmartShine® finish makes it easier than ever to clean thanks to the smooth lines and absence of recesses
  • 5 year manufacturer's guarantee

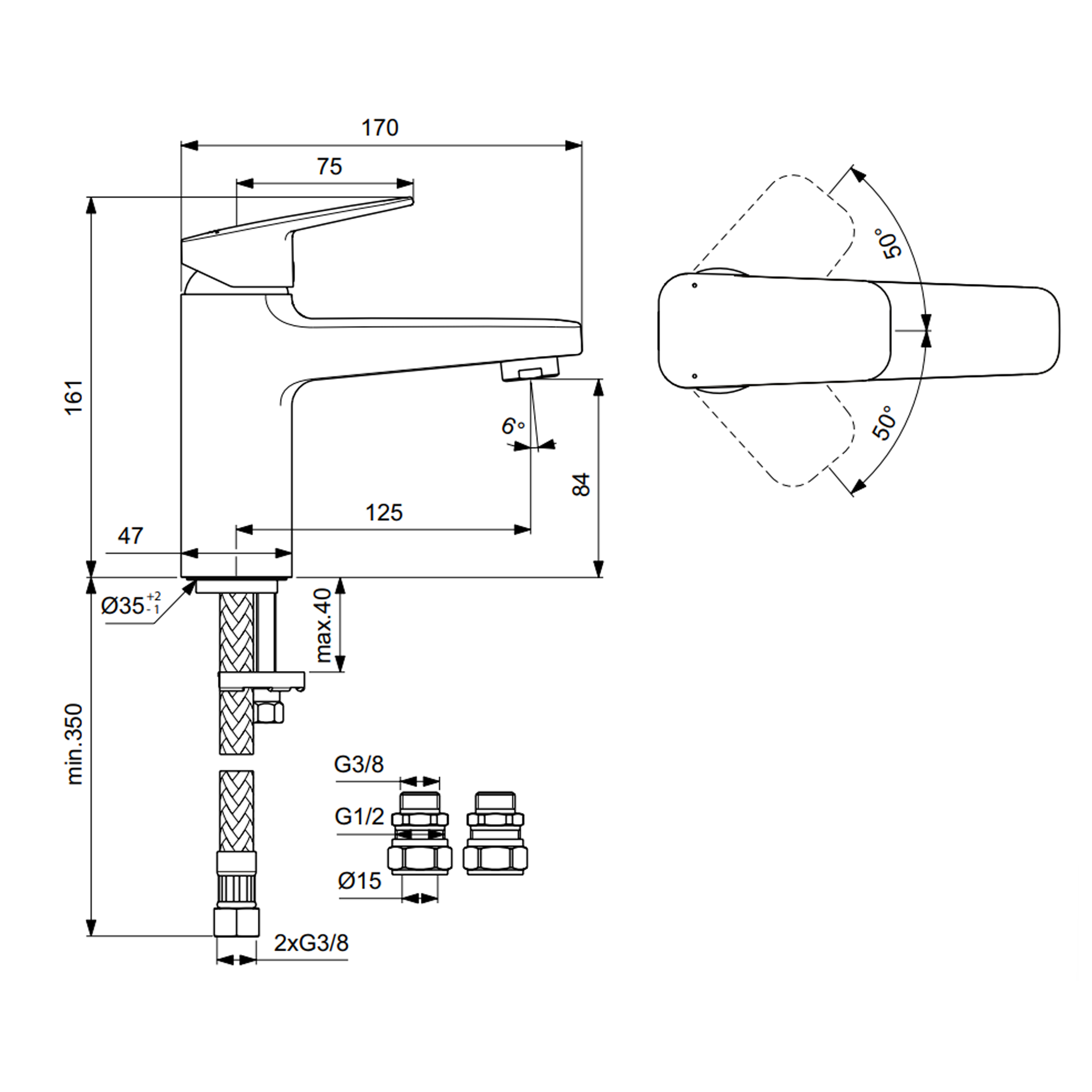

Dimensions:
  • Height: 161mm
  • Width: 47mm
  • Depth: 170mm
  • Projection: 125mm

Downloads
Technical Specifications
Product Overview
Product Code BD266AA
Type Bath Fillers
Brand Ideal Standard
Brand Range Ideal Standard Ceraplan
GuaranteeMore information 5 Years

Guarantee

Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.

Features
Cartridge TypeMore information Ceramic Disc
AeratorMore information Yes
Number of OutletsMore information 1 Outlet
Popular Features WRAS Approved
Material Brass
Temperature Control Manual

Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.

Tap aerators are simple but beautifully-engineered devices that save water and money without a perceived loss of pressure. These small attachments are inserted inside the end of the spout and provide a regulated, smoothed and aerated flow of water by separating a single flow into many tiny streams. These streams mix with air as they flow from the tap, meaning less water is needed to achieve the same 'feel' and performance as non-aerated taps.

They can also be purchased separately and retrofitted to most taps, or they can usually be uninstalled if not wanted. They're a great benefit on high pressure systems where the full flow of water is unnecessary, cutting your water bills and helping to reduce wastage. On lower-pressure systems they can help to improve the performance of a tap by adding air to the limited flow of water available. All-in-all, they're pretty awesome.

This indicates how many water outlets you can pair with your shower valves. Choosing valves with more outlets will give you flexibility over the number of products you can add to your shower.

Each outlet from your shower valve will divert water to the section of your shower that needs it, so each extra outlet allows you to add another product. For example: with 1 outlet you could have just a fixed shower head. 2 outlets will allow you to have a fixed shower head and shower handset. 3 will allow both of these with the addition of a body jet.

Style
Shape Curved, Square
Mounting Type Deck Mounted
Finish Texture Polished
Finish Chrome, Polished Chrome
Style Modern
Tap Holes Mono
Handle Type Lever, Single Control
Spout TypeMore information Fixed Spout, Straight Spout

Tap spouts are available in a variety of different styles which have an effect on both the look and function of your tap. Different spout types will have different heights and projections, so it’s important to choose one which will complement your basin or bath.

Dimensions
Width (mm) 47
Height (mm) 161
Depth (mm) 170
Projection (mm) 125
Flow Rate
Flow Rate at 0.5 Bar (l/min) 10
Flow Rate at 1 Bar (l/min) 14.1
Flow Rate at 1.5 Bar (l/min) 17.3
Flow Rate at 2 Bar (l/min) 23.1
Flow Rate at 3 Bar (l/min) 24.5
Flow Rate at 4 Bar (l/min) 28.3
Flow Rate at 5 Bar (l/min) 31.6
Minimum Water PressureMore information 0.5

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
