Treat your bathroom this year with a gorgeous new 3 hole bath mixer from Harbour. With its slimline design offering you a deck-mounted bath filler that will look amazing whilst providing you with a faultless supply of water that is controlled by a singular, easy to use dial.
Coated with a striking Matt Black finish, its distinct and awe-inspiring look is sure to turn heads. Complete with a handy pull out handset, you’ll never bathe the same way again. Expertly constructed from Brass this Harbour Status Matt Black 3 Hole Bath Mixer with Pull Out Handset will take you back to a simpler life. Finally, another benefit is that it even comes with a delightful 10 year manufacturer’s guarantee.
Features:
Dimensions:
Coated with a striking Matt Black finish, its distinct and awe-inspiring look is sure to turn heads. Complete with a handy pull out handset, you’ll never bathe the same way again. Expertly constructed from Brass this Harbour Status Matt Black 3 Hole Bath Mixer with Pull Out Handset will take you back to a simpler life. Finally, another benefit is that it even comes with a delightful 10 year manufacturer’s guarantee.
Features:
- Deck mounted 3 hole bath mixer tap with stylish pull out handset and shower kit
- Made from Brass with a Matt Black finish
- Minimum pressure required: 1 bar
- Ceramic disc technology prevents any unwanted leaks or drips
- Waste sold separately, please see our recommended extras
- 10 year manufacturer’s guarantee

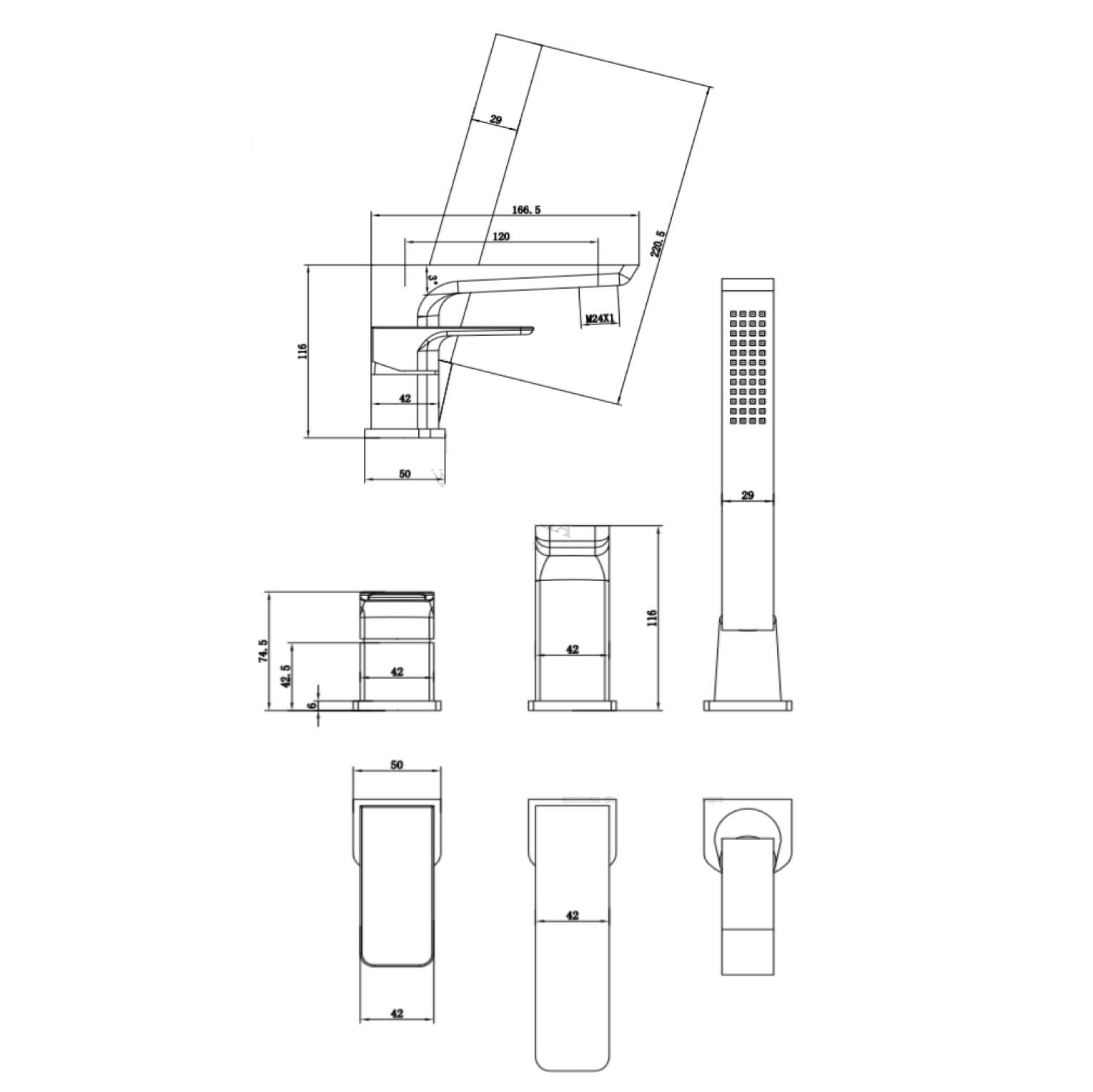

Dimensions:
- Height: 116mm
- Width: 150mm – minimum width
- Depth: 166.5mm
- Projection: 120mm
- Handset Hose Length: 1 metre
| Cleaning Instructions |
|---|
| Product Code | HBSTAT31 |
|---|---|
| Type | Bath Shower Mixers |
| Brand | Harbour |
| Brand Range | Harbour Status |
| GuaranteeMore information | 10 Years |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Cartridge TypeMore information | Ceramic Disc |
|---|---|
| Number of OutletsMore information | 2 Outlets |
| Temperature Control | Manual |
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.
Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.
Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
This indicates how many water outlets you can pair with your shower valves. Choosing valves with more outlets will give you flexibility over the number of products you can add to your shower.
Each outlet from your shower valve will divert water to the section of your shower that needs it, so each extra outlet allows you to add another product. For example: with 1 outlet you could have just a fixed shower head. 2 outlets will allow you to have a fixed shower head and shower handset. 3 will allow both of these with the addition of a body jet.
| Shape | Round, Square |
|---|---|
| Mounting Type | Deck Mounted |
| Finish Texture | Matt |
| Finish | Matt Black |
| Style | Modern |
| Tap Holes | 3 Holes |
| Handle Type | Lever, Single Control |
| Spout TypeMore information | L-Shaped Spout |
Tap spouts are available in a variety of different styles which have an effect on both the look and function of your tap. Different spout types will have different heights and projections, so it’s important to choose one which will complement your basin or bath.
| Width (mm) | 150 |
|---|---|
| Height (mm) | 116 |
| Depth (mm) | 167 |
| Projection (mm) | 120 |
| Flow Rate at 0.5 Bar (l/min) | 7.4 |
|---|---|
| Flow Rate at 1 Bar (l/min) | 10.5 |
| Flow Rate at 1.5 Bar (l/min) | 12.8 |
| Flow Rate at 2 Bar (l/min) | 14.9 |
| Flow Rate at 3 Bar (l/min) | 18.2 |
| Minimum Water PressureMore information | 1 |
Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.
- With a combi boiler you can usually expect between 1 and 2 bar
- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs
- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar
You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
