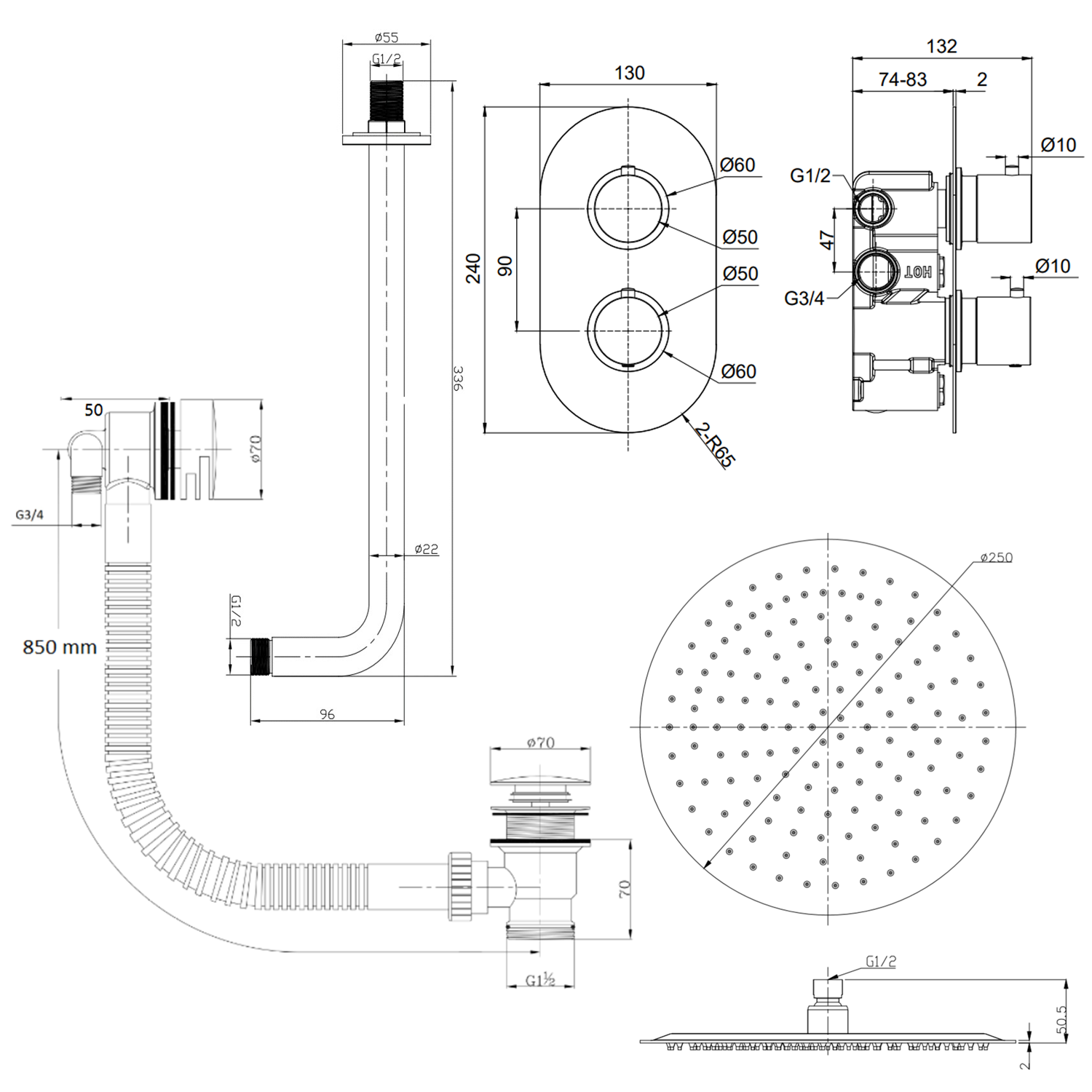

The shower package includes:
Harbour Clarity Brushed Brass 2 Outlet Thermostatic Concealed Shower Valve
Features:
Dimensions:
Flow rates:
Harbour Clarity Overflow Bath Filler - Brushed Brass
Features:
Dimensions:
Harbour Clarity Brushed Brass Ultra Slim Round Shower Head - 250mm
Features:
Dimensions:
Harbour Clarity 310mm Brushed Brass Round Shower Arm
Features:
Dimensions:
Shop the Harbour Brushed Brass range of matching taps and accessories here
Harbour Clarity Brushed Brass 2 Outlet Thermostatic Concealed Shower Valve
Features:
- Modern 2 outlet concealed design with dual handle control
- Stunning Brushed Brass finish
- Thermostatic valve with auto-shut off mechanism protects you from sudden changes in temperature, helping prevent scalding
- Anti Calc thermostatic cartridge - advanced anti-debris technology that helps prevent blockage & limescale build-up for effortless temperature control
- Ceramic disc technology prevents any unwanted leaks or drips
- Dual handle control - top diverts the flow of water between outlets and the bottom controls the water temperature
- Interchangeable backplate design allows portrait or landscape orientation
- Crafted from brass (valve body), stainless steel (backplate) & zinc alloy (handles)
- Minimum water pressure required: 0.5 bar
- Complies with BSEN 1111
- Covered by a 5 year manufacturer’s guarantee
Dimensions:
- Height: 240mm
- Width: 130mm
- Depth: 132mm
Flow rates:
- 0.5 bar (l/min): 9.4
- 1.0 bar (l/min): 13.4
- 2.0 bar (l/min): 19.0
- 3.0 bar (l/min): 23.2
- 4.0 bar (l/min): 27.1
- 5.0 bar (l/min): 29.9
Harbour Clarity Overflow Bath Filler - Brushed Brass
Features:
- Contemporary minimalist design
- Stunning Brushed Brass finish
- Comes with a clicker bath waste
- Crafted from brass and ABS
- Comes with a built-in retainer mechanism to help trap hair and debris that may cause blockages
- Minimum water pressure required: 0.5 bar
- Suitable for baths with 5-15mm thickness
Dimensions:
- Overflow diameter: 70mm
- Clicker waste diameter: 70mm
Harbour Clarity Brushed Brass Ultra Slim Round Shower Head - 250mm
Features:
- Contemporary round design
- Stunning Brushed Brass finish
- Crafted from stainless steel
- Includes easy clean nozzles for effortless cleaning
- Swivel ball joint for easy adjustment
- Minimum water pressure required: 0.2 bar
Dimensions:
- Total height: 50.5mm
- Head thickness: 2mm
- Width: 250mm
- Depth: 250mm
Harbour Clarity 310mm Brushed Brass Round Shower Arm
Features:
- Contemporary round design
- Stunning Brushed Brass finish
- Crafted from brass
Dimensions:
- Backplate diameter: 55mm
- Arm diameter: 22mm
- Total length: 336mm
- Projection: 300mm
Shop the Harbour Brushed Brass range of matching taps and accessories here
| Product Code | clarity-bb-cnc-2o-shwr-pck-obf |
|---|---|
| Global Trade Item Number | 5056585207612 |
| Type | Concealed Shower Bath Sets |
| Brand | Harbour |
| Brand Range | Harbour Clarity |
| Guarantee |
Various |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Cartridge Type |
Ceramic Disc |
|---|---|
| Number of Outlets |
2 Outlets |
| Popular Features | Easy Clean Nozzles |
| Material | ABS Plastic, Brass, Stainless Steel, Zinc Alloy |
| Temperature Control | Thermostatic |
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.
Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.
Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
This indicates how many water outlets you can pair with your shower valves. Choosing valves with more outlets will give you flexibility over the number of products you can add to your shower.
Each outlet from your shower valve will divert water to the section of your shower that needs it, so each extra outlet allows you to add another product. For example: with 1 outlet you could have just a fixed shower head. 2 outlets will allow you to have a fixed shower head and shower handset. 3 will allow both of these with the addition of a body jet.
| Shape | Curved |
|---|---|
| Mounting Type | Wall Mounted |
| Finish Texture | Brushed |
| Finish | Brushed Brass |
| Style | Modern |
| Handle Type | Dual Control, Round |
| Minimum Water Pressure |
0.5 |
|---|
Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.
- With a combi boiler you can usually expect between 1 and 2 bar
- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs
- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar
You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
