£249.99
Recommended extras
We've hand-picked these items because they are a great choice alongside the Geberit Duofix 820mm Concealed Frame & Kappa Cistern for Wall Hung Toilet
Features:
Dimensions:
- Concealed frame & cistern crafted from durable, tested materials for years of dependable use
- Hidden seamlessly within the wall, it provides the ultimate solution for any design, form or space - from traditional installations to under-window placements or sloped ceilings
- One-piece blow-moulded cistern construction ensures no leaks as there are no joins for water to escape from
- Insulating polystyrene jacket helps to reduce condensation and enables silent water filling & discharging
- Adjustable dual flush system to save water and reduce your bills - preset to 5.8/3 litres as standard, and adjustable between 3-4l for the half flush
- Cistern operating pressure: 0.1 - 10 bar
- Meets EN 14055, Class II standards
- Immediate post flush capability possible with factory settings - comes with required fill and flush valves for it to be operational immediately after installation
- Easy maintenance - access all parts easily by removing the flush plate
- Flush bend and water supply connection designed for easy installation
- Water inlet location on the left for easy installation
- Powder-coated steel frame with galvanized steel adjustable feet for added flexibility
- Frame weight capacity: 400kg
- Suitable for solid wall and plasterboard installations
- Front actuation for a vertical flush plate installation
- Supplied with straight pan connector and angled pan connector
- Compatible with wall hung toilet pans with projection up to 620mm (sold separately)
- Compatible with Geberit Kappa flush plates - sold separately, please see our recommended extras
- Trusted Geberit engineering ensures reliable and consistent performance
- Covered by a 10 year manufacturer’s guarantee, with a 25 year spare parts guarantee (Geberit will continue to make and have available spare parts for the next 25 years from the date of sale)

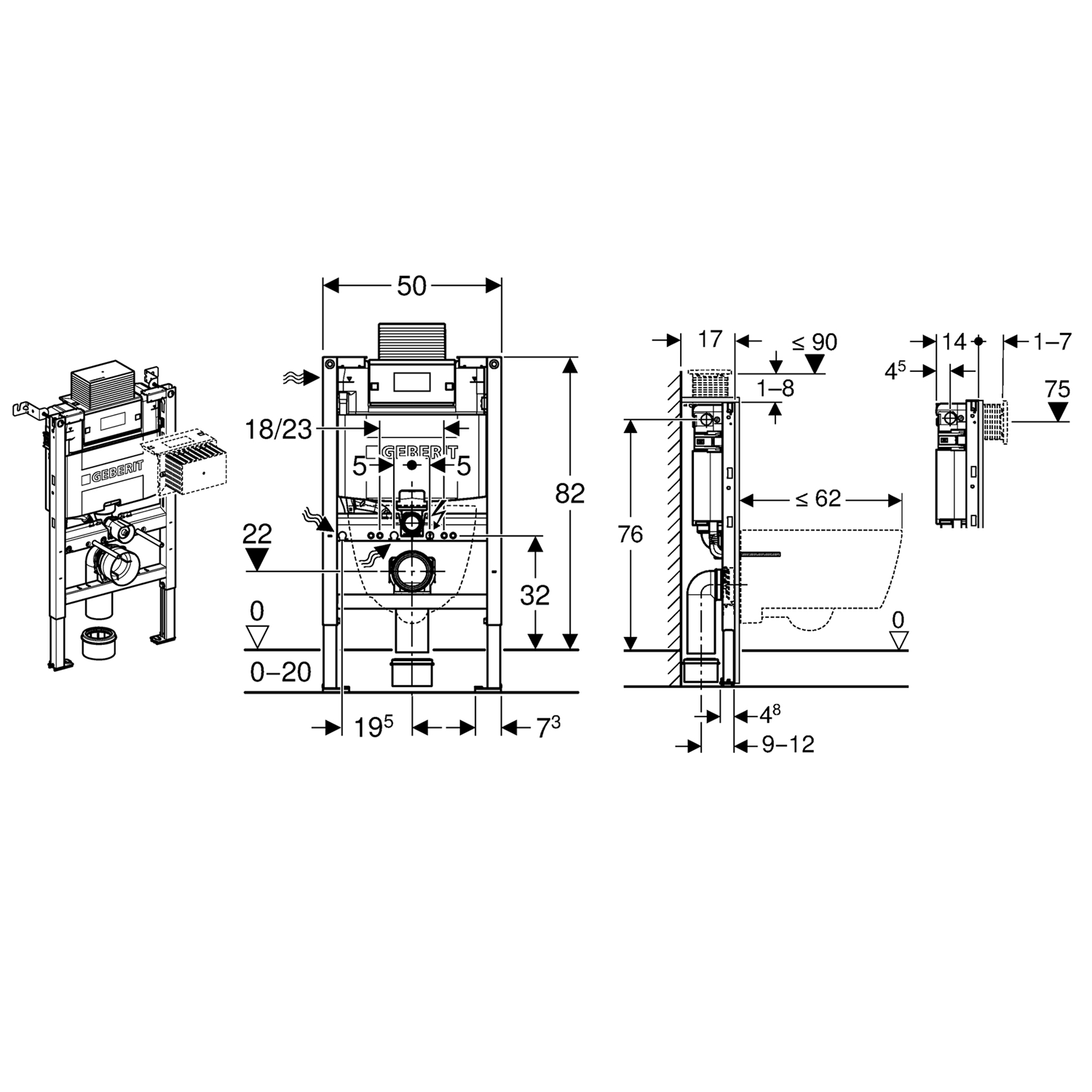

Dimensions:
- Height: 820 - 840mm
- Width: 500mm
- Total depth: 240mm
- Cistern depth: 150mm
Technical Specifications |
---|
Product Code | 111.260.00.3 |
---|---|
Type | Concealed Cisterns & Frames |
Brand | Geberit |
Brand Range | Geberit Duofix |
GuaranteeMore information | 10 Years |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
Popular Features | Height Adjustable |
---|---|
Material | Plastic, Steel |
Water Inlet LocationMore information | Left Hand Side |
Water Inlet Location:
This is the location where the mains water feed can connect to the cistern, when viewed from the front.
Cisterns that feature Bottom Left & Right inlets are usually supplied with a plug to seal the inlet which isn't used.
Shape | Square |
---|---|
Mounting Type | Wall Mounted |
Style | Modern |
Width (mm) | 500 |
---|---|
Height (mm) | 820 |
Depth (mm) | 240 |
Maximum Weight Capacity (kg) | 400 |
