£189.99
Recommended extras
We've hand-picked these items because they are a great choice alongside the Drench Square Telescopic WRAS-Approved Thermostatic Rigid Riser Shower Set with Slim Head
Features:
- Exposed square design with gorgeous Chrome finish
- Thermostatically controlled to prevent accidental scalding and temperature fluctuation
- Shower bar valve comes with Easy-fit kit
- WRAS and TMV2 approved
- Minimum water pressure required: 0.5 bar

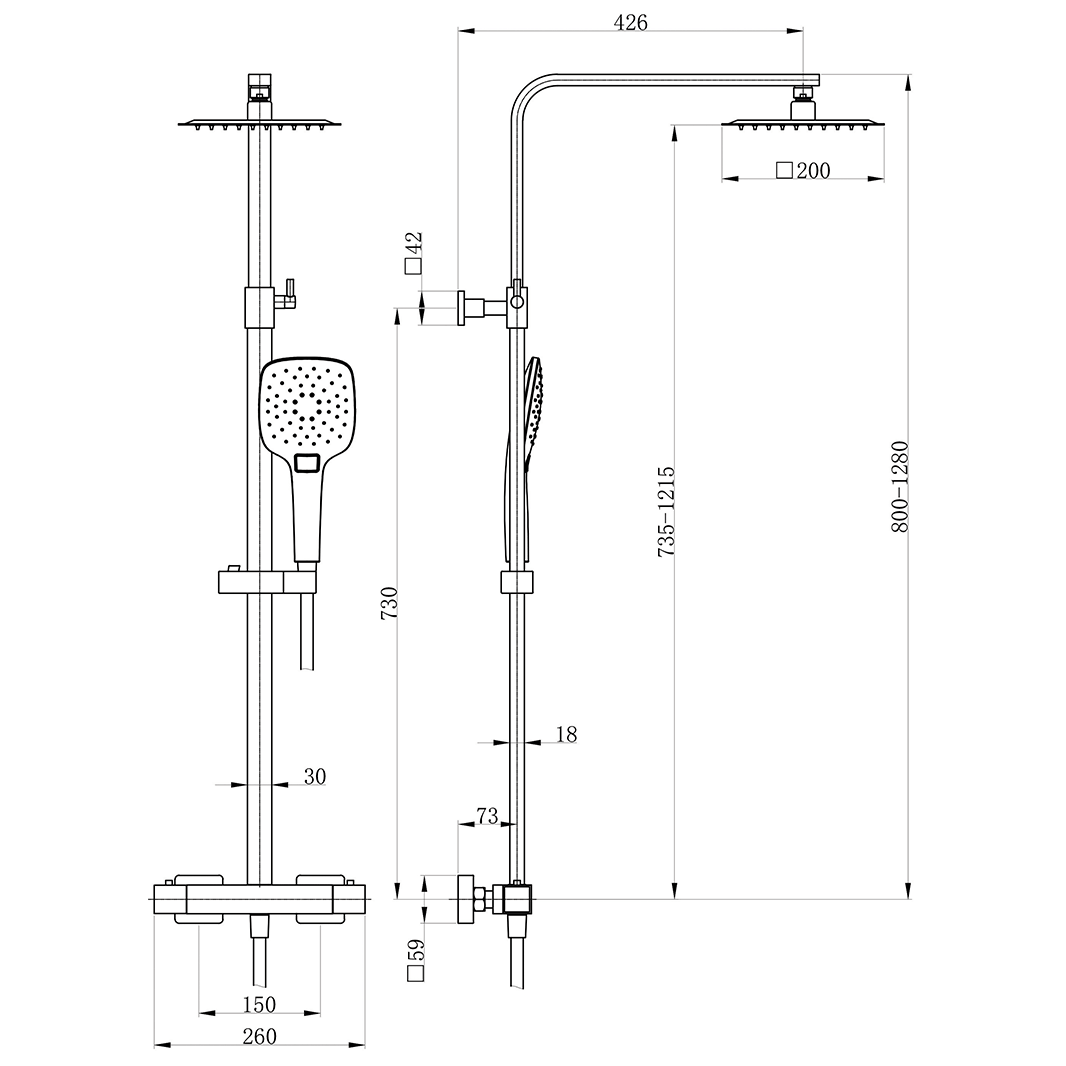

- Telescopic adjustable rail with handset bracket - height can be adjusted between 800mm and 1280mm
- Slim stainless steel shower head with easy clean nozzles and ball joint for easy adjustment
- Shower handset with 3 mode spray function - outer spray, massage jets or both together
- Includes shower hose
- Covered by 2 year manufacturer's guarantee
| Product Code | TIS0001 |
|---|---|
| Global Trade Item Number | 5056585206776 |
| Type | Exposed Shower Sets |
| Brand | Drench |
| GuaranteeMore information | 2 Years |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Cartridge TypeMore information | Ceramic Disc |
|---|---|
| Number of OutletsMore information | 2 Outlets |
| Material | Brass, Stainless Steel, ABS Plastic |
| Temperature Control | Thermostatic |
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.
Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.
Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
This indicates how many water outlets you can pair with your shower valves. Choosing valves with more outlets will give you flexibility over the number of products you can add to your shower.
Each outlet from your shower valve will divert water to the section of your shower that needs it, so each extra outlet allows you to add another product. For example: with 1 outlet you could have just a fixed shower head. 2 outlets will allow you to have a fixed shower head and shower handset. 3 will allow both of these with the addition of a body jet.
| Shape | Square |
|---|---|
| Mounting Type | Wall Mounted |
| Finish Texture | Polished |
| Finish | Chrome |
| Style | Modern |
| Handle Type | Round, Dual Control |
| Hose Length (mm) | 1500 |
|---|---|
| Width (mm) | 260 |
| Projection (mm) | 426 |
| Flow Rate at 0.5 Bar (l/min) | 7 |
|---|---|
| Flow Rate at 1 Bar (l/min) | 10 |
| Flow Rate at 2 Bar (l/min) | 14.5 |
| Flow Rate at 3 Bar (l/min) | 17.8 |
| Flow Rate at 4 Bar (l/min) | 20.6 |
| Flow Rate at 5 Bar (l/min) | 23.1 |
| Minimum Water PressureMore information | 0.5 |
Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.
- With a combi boiler you can usually expect between 1 and 2 bar
- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs
- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar
You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
