Drench Minimalist Thermostatic Bar Valve - Bottom Outlet

Rated 5.00/5 from 2 customer reviews

RRP £171 save 53%

£79.99 was £99.99

Loading delivery estimate...

Pay 3 interest-free instalments of £26.66 with Klarna Learn more about Klarna
Pay 4 interest-free instalments of £20.00 with Clearpay Learn more about Clearpay

What's great about it?

  • Stylish minimalist thermostatic bar shower valve
  • Durable Chrome plated finish
  • Anti Calc thermostatic cartridge keeps your valve free from limescale and debris
  • WRAS Approved thermostatic valve keeps you and your family safe from accidental scalding
  • 0.5 bar minimum pressure required
  • 10 year manufacturer's guarantee

Read full product description


Recommended extras

We've hand-picked these items because they are a great choice alongside the Drench Minimalist Thermostatic Bar Valve - Bottom Outlet

This thermostatic bar valve boasts many qualities. Water temperature is thermostatically controlled, it's incredibly easy to operate, and it's highly resistant to limescale build up thanks to an Anti Calc cartridge. Finished in a gorgeous Chrome and featuring smooth curves, this bar valve will add that extra bit of style that you've been looking for. Operable at min. 0.5 bar water pressure and boasting a ten year manufacturer's guarantee, this bar valve is for anyone and everyone.

  • Accurate control over water flow and temperature
  • Water temperature thermostatically controlled
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • Manufactured from high quality brass & ABS plastic
  • Shower hose sold separately - please see our recommended extras
  • 1.0 bar minimum water pressure required
  • 10 year manufacturer's guarantee

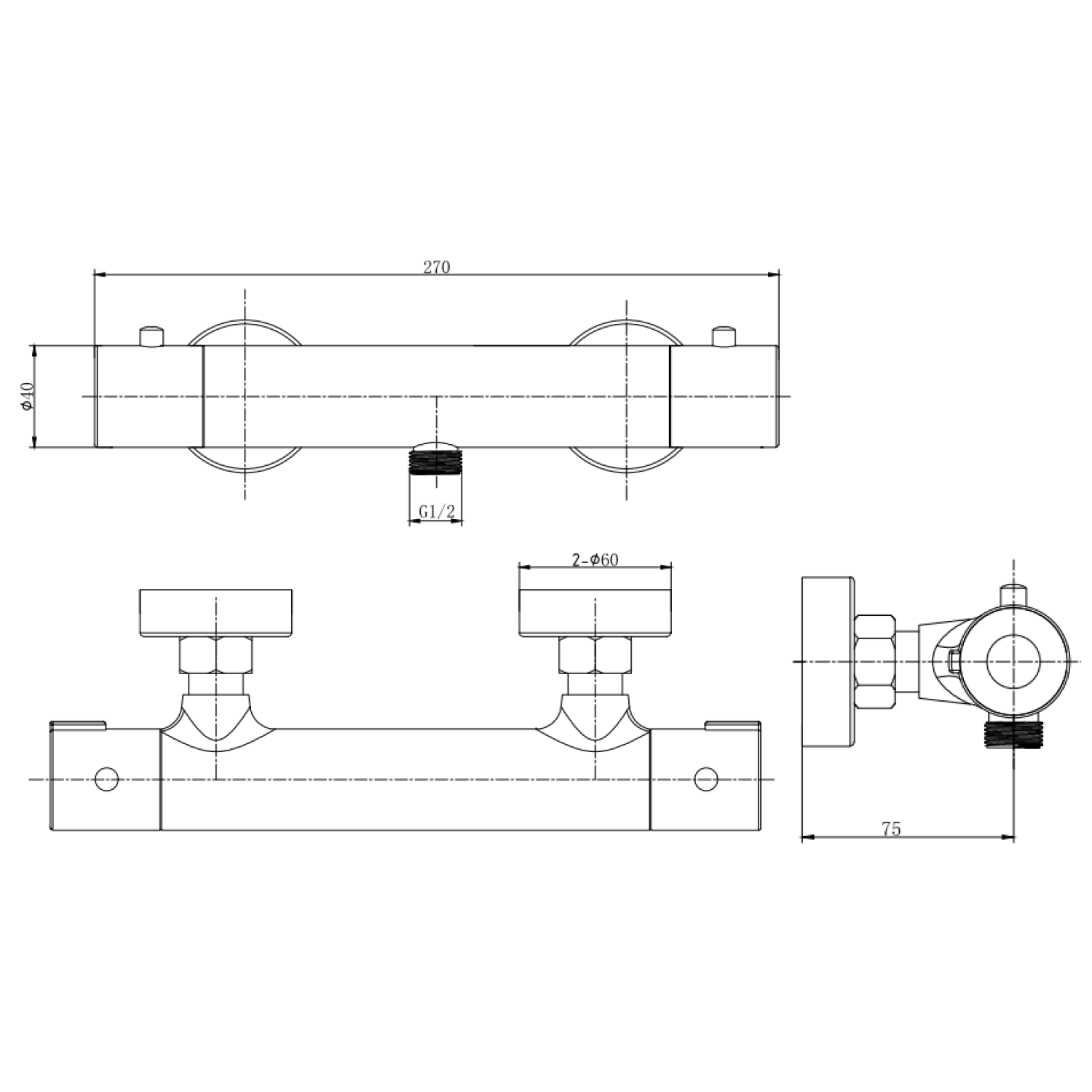

  • Height: 60mm
  • Width: 270mm
  • Projection: 79mm

Product Overview
Product Code DRVLV03
Global Trade Item Number 5056585247908
Type Exposed Shower Valves
Brand Drench
GuaranteeMore information 10 Years


Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.

Cartridge TypeMore information Ceramic Disc
Number of OutletsMore information 1 Outlet
Material Brass, ABS Plastic
Temperature Control Thermostatic

Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.

This indicates how many water outlets you can pair with your shower valves. Choosing valves with more outlets will give you flexibility over the number of products you can add to your shower.

Each outlet from your shower valve will divert water to the section of your shower that needs it, so each extra outlet allows you to add another product. For example: with 1 outlet you could have just a fixed shower head. 2 outlets will allow you to have a fixed shower head and shower handset. 3 will allow both of these with the addition of a body jet.

Shape Round
Mounting Type Wall Mounted
Finish Texture Polished
Finish Chrome
Style Modern
Orientation Landscape
Handle Type Round, Dual Control
Width (mm) 270
Height (mm) 60
Depth (mm) 79
Projection (mm) 79
Flow Rate
Flow Rate at 0.5 Bar (l/min) 7.2
Flow Rate at 1 Bar (l/min) 11.1
Flow Rate at 2 Bar (l/min) 16.3
Flow Rate at 3 Bar (l/min) 20.0
Flow Rate at 4 Bar (l/min) 23.3
Flow Rate at 5 Bar (l/min) 25.5
Minimum Water PressureMore information 0.5

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
