James Concealed Shower Valve, Fixed Head & Shower Handset Kit

Rated 4.67/5 from 3 customer reviews
Please select an option

Loading delivery estimate...

Klarna
Pay 3 interest-free instalments of £76.66 with Klarna Learn more about Klarna
Clearpay
Pay 4 interest-free instalments of £57.50 with Clearpay Learn more about Clearpay

What's great about it?

  • Shower pack includes: 2 outlet concealed shower valve, fixed shower head & arm
  • Choose between 180mm or 360mm ceiling mounted shower arm
  • Wall handset kit includes shower handset, 1.5m hose & integrated wall outlet
  • Anti Calc thermostatic cartridge keeps your valve free from limescale and debris
  • WRAS approved valve with ceramic disc technology
  • 0.5 bar minimum water pressure required
  • Fantastic manufacturer's guarantee

Read full product description

Recommended extras

We've hand-picked these items because they are a great choice alongside the James Concealed Shower Valve, Fixed Head & Shower Handset Kit

Valve Features:
  • Modern 2 outlet concealed design with dual handle control
  • Sleek Chrome finish
  • Thermostatic valve with auto-shutoff mechanism protects you from sudden changes in temperature, helping prevent scalding
  • Anti Calc thermostatic cartridge - advanced anti-debris technology that helps prevent blockage & limescale build-up for effortless temperature control
  • Ceramic disc technology prevents any unwanted leaks or drips
  • Interchangeable backplate design allows portrait or landscape orientation
  • Crafted from brass (valve body), stainless steel (backplate) & zinc alloy (handles)
  • Minimum water pressure required: 0.5 bar
  • WRAS approved
  • Complies with BSEN 1111
  • Covered by a 10 year manufacturer’s guarantee

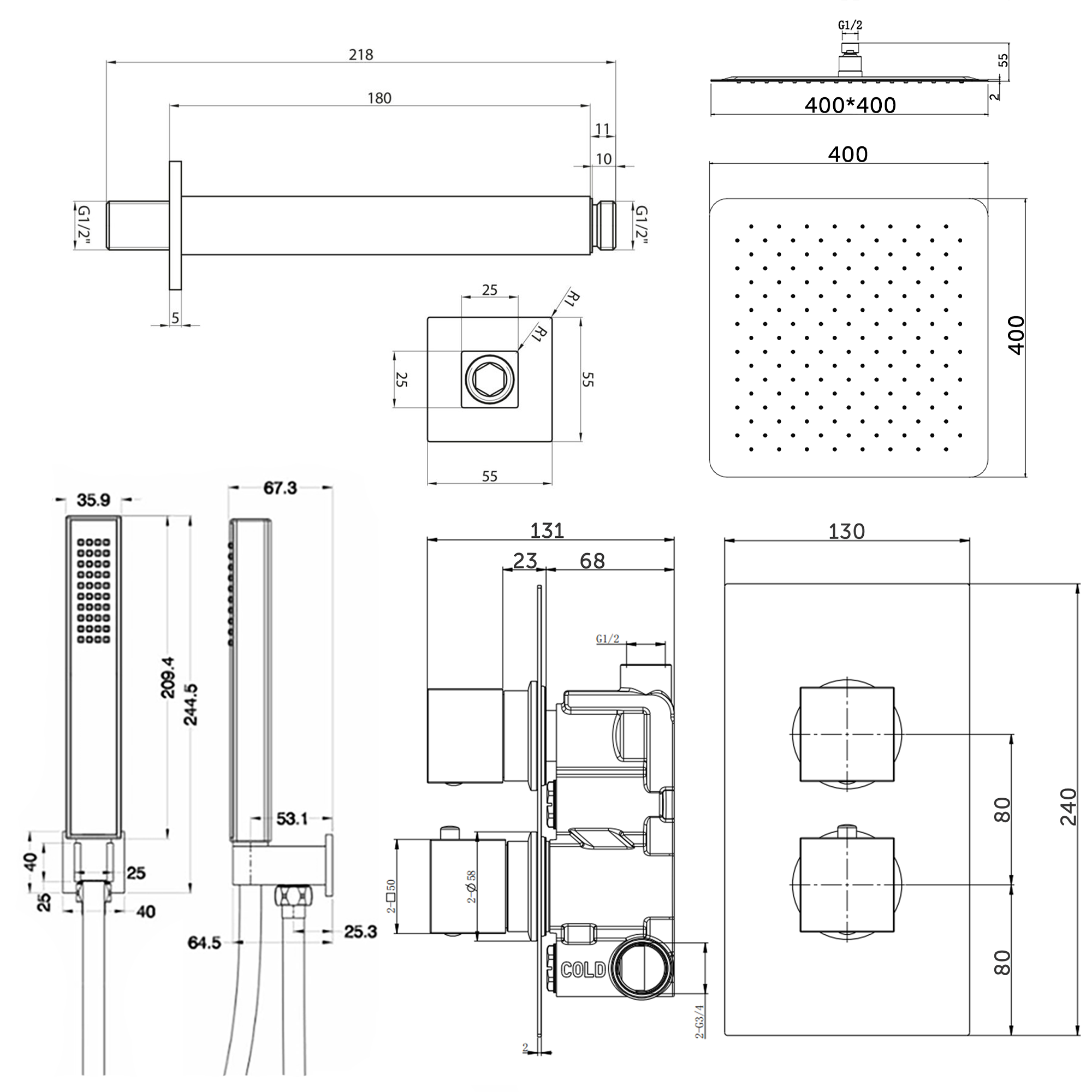

Dimensions:
  • Height: 240mm
  • Width: 130mm

Flow rates:
  • 0.5 bar (l/min): 9.7
  • 1.0 bar (l/min): 13.8
  • 1.5 bar (l/min): 16.8
  • 2.0 bar (l/min): 19.4
  • 3.0 bar (l/min): 23.5
  • 4.0 bar (l/min): 27.4
  • 5.0 bar (l/min): 30.6

Shower Head Features:
  • Slimline 400mm stainless steel shower head in a sleek Chrome finish
  • Swivel joint easily adjusts the angle of the head
  • Air Injection Technology - provides softer showering experience & reduces water usage by mixing air with water
  • Easy-clean rubber nozzles for easy cleaning
  • 1 year manufacturer's guarantee

Shower Handset with Wall Outlet & Hose Features:
  • Kit includes: shower handset with easy clean nozzles, 1.5m anti-rust shower hose & wall outlet elbow with integrated shower handset
  • Modern concealed design in a high-shine chrome finish
  • Constructed from brass (outlet elbow) and ABS plastic (handset) ensure that the handset is light and easy to manoeuvre
  • Covered by a 2 year manufacturer’s guarantee

Product Overview
Product Code dr-james-concealed-shower-kit
Type Concealed Shower Sets & Valves
Brand Drench
Brand Range Drench James
GuaranteeMore information Various

Guarantee

Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.

Features
Cartridge TypeMore information Ceramic Disc
Number of OutletsMore information 2 Outlets
Popular Features Easy Clean Nozzles
Material ABS Plastic, Brass, Stainless Steel
Temperature Control Thermostatic

Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.

This indicates how many water outlets you can pair with your shower valves. Choosing valves with more outlets will give you flexibility over the number of products you can add to your shower.

Each outlet from your shower valve will divert water to the section of your shower that needs it, so each extra outlet allows you to add another product. For example: with 1 outlet you could have just a fixed shower head. 2 outlets will allow you to have a fixed shower head and shower handset. 3 will allow both of these with the addition of a body jet.

Style
Shape Square
Finish Texture Polished
Finish Chrome
Style Modern
Orientation Landscape, Portrait
Handle Type Dual Control, Square
Mounting Type Select an option first
Flow Rate
Flow Rate at 0.5 Bar (l/min) 9.7
Flow Rate at 1 Bar (l/min) 13.8
Flow Rate at 1.5 Bar (l/min) 16.8
Flow Rate at 2 Bar (l/min) 19.4
Flow Rate at 3 Bar (l/min) 23.5
Flow Rate at 4 Bar (l/min) 27.4
Flow Rate at 5 Bar (l/min) 30.6
Minimum Water PressureMore information 0.5

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
