Jake Concealed Shower Valve, Fixed Shower Head & Overflow Bath Filler

Rated 5.00/5 from 1 customer review

RRP £588 save 65%

From £206.99 was £229.99

Please select an option
Please select an option

Loading delivery estimate...

Klarna
Pay 3 interest-free instalments of £68.99 with Klarna Learn more about Klarna
Clearpay
Pay 4 interest-free instalments of £51.75 with Clearpay Learn more about Clearpay

What's great about it?

  • Shower pack includes: 2 outlet concealed shower valve, overflow bath filler, shower head & arm
  • Choose between 3 shower heads & 4 shower arms to personalise your shower
  • Anti Calc thermostatic cartridge keeps your valve free from limescale and debris
  • WRAS approved valve with ceramic disc technology
  • 1 bar minimum water pressure required
  • Fantastic manufacturer's guarantee

Read full product description

Offer

Recommended extras

We've hand-picked these items because they are a great choice alongside the Jake Concealed Shower Valve, Fixed Shower Head & Overflow Bath Filler

Valve Features:
  • Modern 2 outlet concealed design with dual handle control
  • Sleek Chrome finish
  • Thermostatic valve with auto-shutoff mechanism protects you from sudden changes in temperature, helping prevent scalding
  • Anti Calc thermostatic cartridge - advanced anti-debris technology that helps prevent blockage & limescale build-up for effortless temperature control
  • Ceramic disc technology prevents any unwanted leaks or drips
  • Interchangeable backplate design allows portrait or landscape orientation
  • Crafted from brass (valve body), stainless steel (backplate) & zinc alloy (handles)
  • Minimum water pressure required: 0.5 bar
  • WRAS approved
  • Complies with BSEN 1111
  • Covered by a 10 year manufacturer’s guarantee

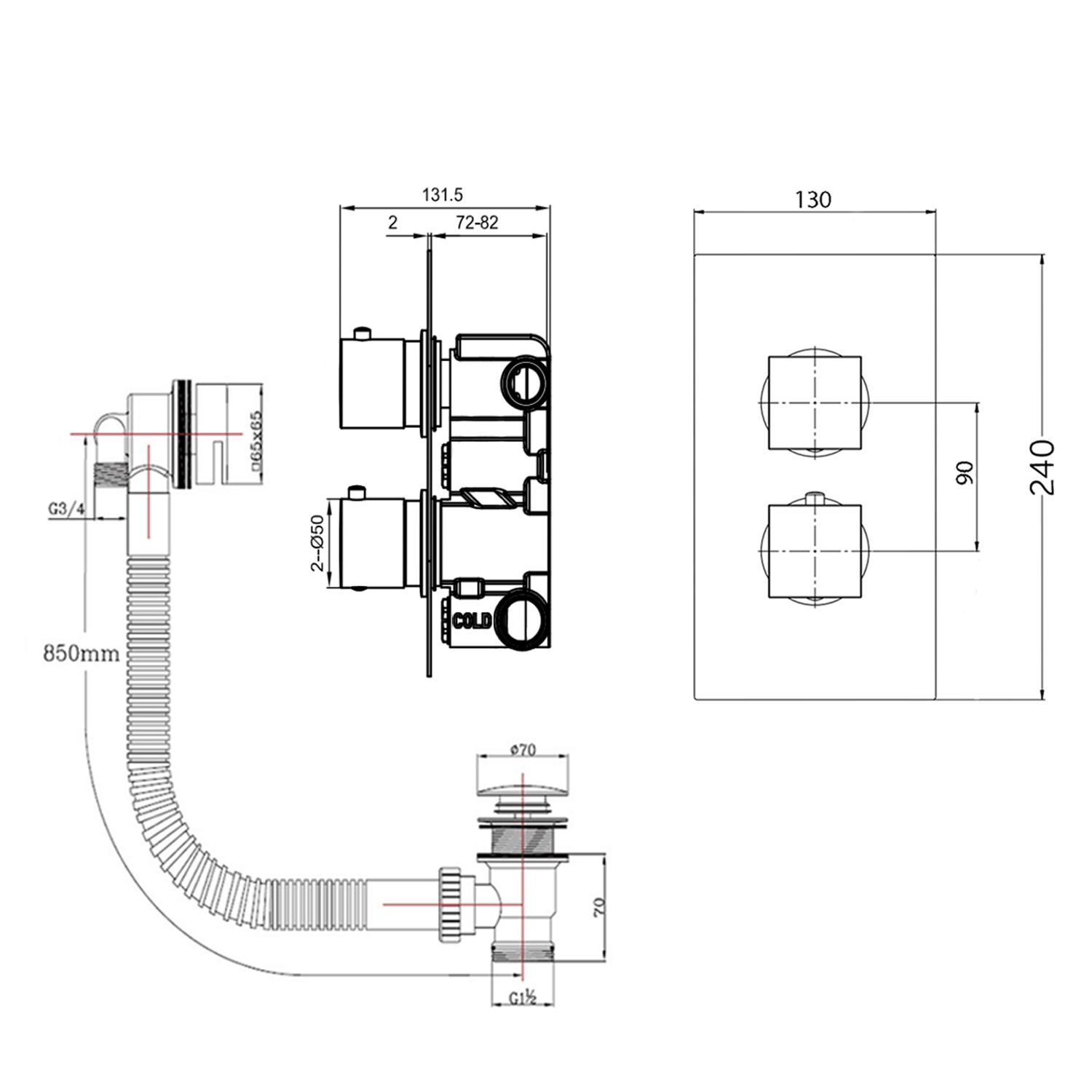

Dimensions:
  • Height: 240mm
  • Width: 130mm

Flow rates:
  • 1.0 bar (l/min): 13.8
  • 1.5 bar (l/min): 16.8
  • 2.0 bar (l/min): 19.4
  • 3.0 bar (l/min): 23.5
  • 4.0 bar (l/min): 27.4
  • 5.0 bar (l/min): 30.6

Shower Head Features:
  • Choose from 200, 300, or 400mm
  • Stainless steel shower head in a sleek Chrome finish
  • Swivel joint easily adjusts the angle of the head
  • Easy-clean rubber nozzles for easy cleaning
  • Lifetime manufacturer’s guarantee

Shower Arm Features
  • 2 orientations and 4 sizes to choose from
  • 180mm Ceiling Arm: lifetime guarantee
  • 360mm Ceiling Arm: 5 year guarantee
  • 300mm Wall Arm: 5 year guarantee
  • 380mm Wall Arm: 2 year guarantee

Overflow Bath Filler Features:
  • Chrome-plated overflow bath filler
  • Clicker waste included
  • Minimum water pressure required: 1 bar
  • 1 year manufacturer's guarantee

Product Overview
Product Code dr-jake-con-bath-shower-kit
Type Concealed Shower Bath Sets
Brand Drench
Brand Range Drench Jake
GuaranteeMore information Various

Guarantee

Please note that these guarantees are provided by the manufacturer, and will be subject to individual terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.

Features
Cartridge TypeMore information Ceramic Disc
Number of OutletsMore information 2 Outlets
Popular Features Easy Clean Nozzles
Material Brass, Stainless Steel
Temperature Control Thermostatic

Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.

This indicates how many water outlets you can pair with your shower valves. Choosing valves with more outlets will give you flexibility over the number of products you can add to your shower.

Each outlet from your shower valve will divert water to the section of your shower that needs it, so each extra outlet allows you to add another product. For example: with 1 outlet you could have just a fixed shower head. 2 outlets will allow you to have a fixed shower head and shower handset. 3 will allow both of these with the addition of a body jet.

Style
Shape Square
Finish Texture Polished
Finish Chrome
Style Modern
Orientation Portrait, Landscape
Handle Type Square, Dual Control
Spout TypeMore information Overflow Spout

Tap spouts are available in a variety of different styles which have an effect on both the look and function of your tap. Different spout types will have different heights and projections, so it’s important to choose one which will complement your basin or bath.

Flow Rate
Flow Rate at 1 Bar (l/min) 13.8
Flow Rate at 1.5 Bar (l/min) 16.8
Flow Rate at 2 Bar (l/min) 19.4
Flow Rate at 3 Bar (l/min) 23.5
Flow Rate at 4 Bar (l/min) 27.4
Flow Rate at 5 Bar (l/min) 30.6
