Features:
Looking for matching accessories or brassware? Shop Drench Isla & Drench Core ranges for some great options
Dimensions:
- Overflow Bath Filler with integrated valve and temperature controls, offering a sleek, modern design without the need for an additional bath/shower valve
- Click clack waste and overflow pipe included
- Made from reliable materials (brass, stainless steel & ABS plastic) and available in six stunning finishes: Chrome, Brushed Brass, Brushed Bronze, Gunmetal, Matt Black and Brushed Nickel
- Clever alternative to bath taps, preserves precious space to bathe
- Minimum recommended water pressure: 1 bar
- Covered by a lifetime manufacturer’s guarantee
Looking for matching accessories or brassware? Shop Drench Isla & Drench Core ranges for some great options

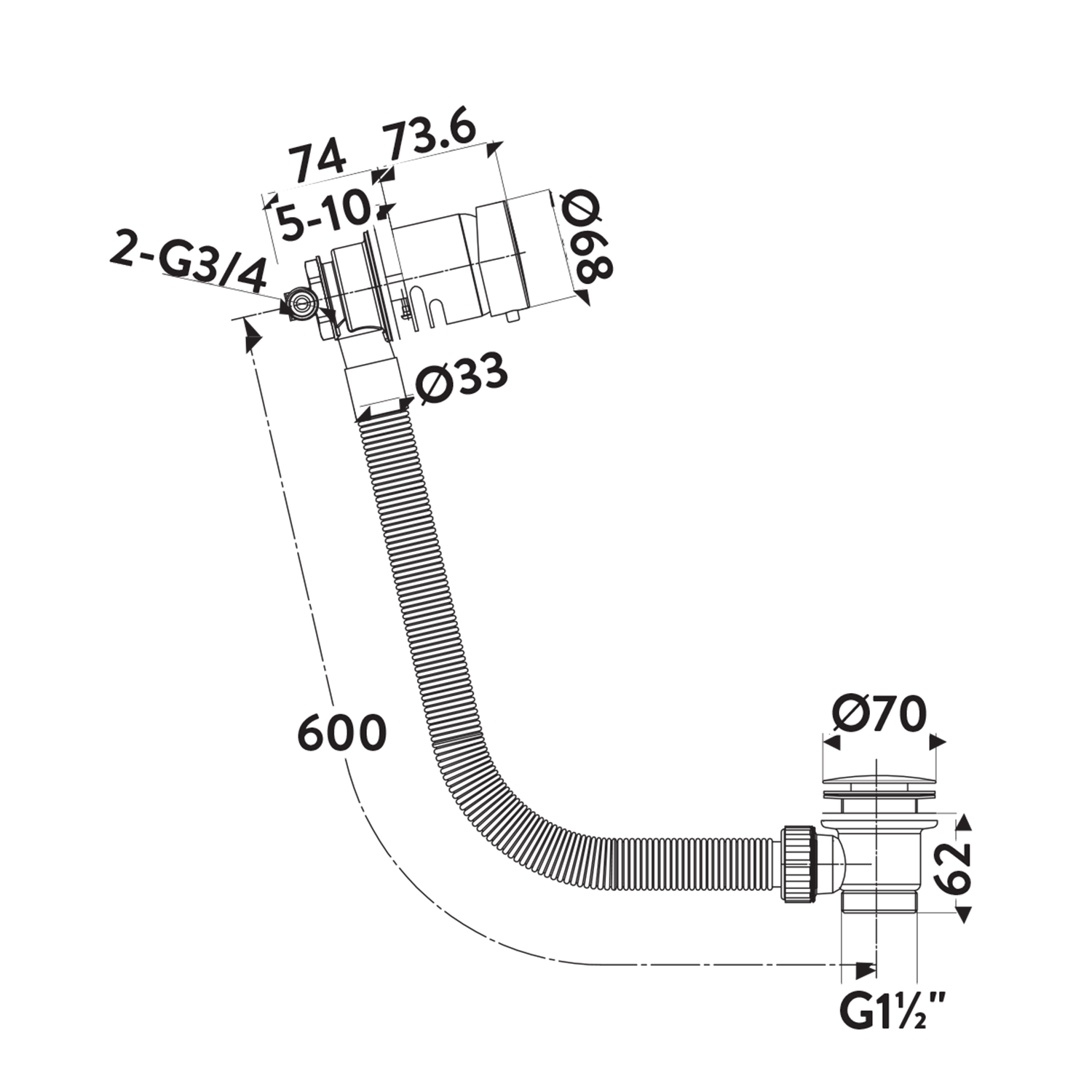

Dimensions:
- Length: 600mm
- Overflow diameter: 68mm
- Waste diameter: 70mm
 Cleaning Instructions
|
|---|
| Product Code | core-ovrfl-flr-wst-pv |
|---|---|
| Type | Overflow Bath Fillers |
| Brand | Drench |
| Brand Range | Drench Core |
| Guarantee |
Lifetime |
| Global Trade Item Number | Select an option first |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Number of Outlets |
1 Outlet |
|---|---|
| Material | ABS Plastic, Brass, Stainless Steel |
| Temperature Control | Manual |
This indicates how many water outlets you can pair with your shower valves. Choosing valves with more outlets will give you flexibility over the number of products you can add to your shower.
Each outlet from your shower valve will divert water to the section of your shower that needs it, so each extra outlet allows you to add another product. For example: with 1 outlet you could have just a fixed shower head. 2 outlets will allow you to have a fixed shower head and shower handset. 3 will allow both of these with the addition of a body jet.
| Shape | Round |
|---|---|
| Style | Modern |
| Handle Type | Lever |
| Spout Type |
Overflow Spout |
| Finish Texture | Select an option first |
| Finish | Select an option first |
Tap spouts are available in a variety of different styles which have an effect on both the look and function of your tap. Different spout types will have different heights and projections, so it’s important to choose one which will complement your basin or bath.
| Flow Rate at 0.2 Bar (l/min) | 3.2 |
|---|---|
| Flow Rate at 0.5 Bar (l/min) | 7 |
| Flow Rate at 1 Bar (l/min) | 12 |
| Flow Rate at 1.5 Bar (l/min) | 15 |
| Flow Rate at 2 Bar (l/min) | 17.7 |
| Flow Rate at 3 Bar (l/min) | 21.3 |
| Flow Rate at 4 Bar (l/min) | 25 |
| Flow Rate at 5 Bar (l/min) | 28 |
| Minimum Water Pressure |
1 |
Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.
- With a combi boiler you can usually expect between 1 and 2 bar
- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs
- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar
You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
