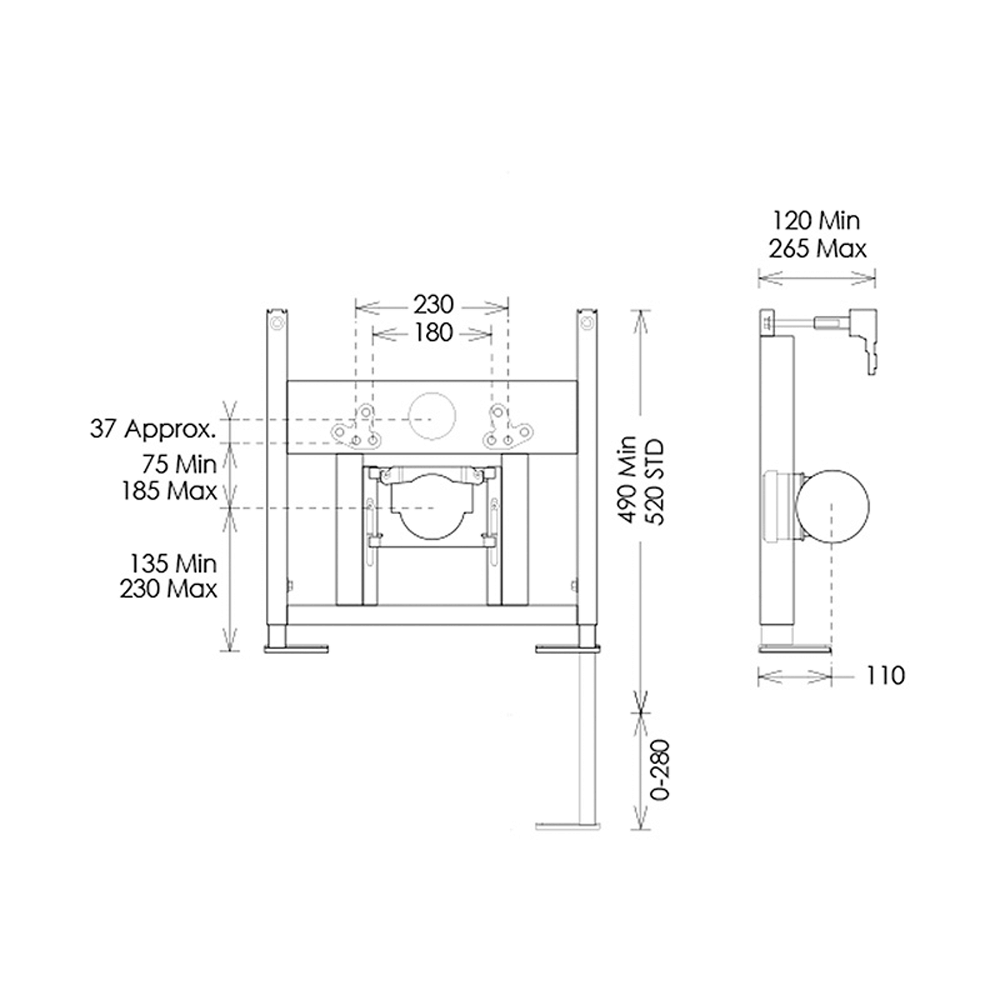

This premium quality toilet fixing frame is perfect for installing a wall-hung toilet where space and height is a little limited, such as underneath a bay window. Specifically made for British installation, the Abacus 520mm Low Height Pan Fixing Frame has easy-to-fit wall brackets suitable for either vertical or horizontal fixing. The full pre-wall installation bolt kit and quick fix nuts are included too so you won't be needing to pop down to your local plumbers merchant for any extra bits.
Features:
Features:
- Wall mounted WC frame
- Made for British installation
- For compatible Abacus concealed cisterns click here
- For compatible Abacus flush plates click here
- The full pre-wall installation bolt kit and quick fix nuts are included
- The wall brackets are easy to install for horizontal or vertical fixing
- At the top of the frame there are wall brackets which are designed for easy shelf installation
- Included also are sound deadening pads and adjustable feet 0 - 280mm height
- There is also large feet for easy rear fixing
- 15 year manufacturer's guarantee
Product Code | EPWC-20-0005 |
---|---|
Type | Concealed Frames |
Brand | Abacus |
GuaranteeMore information | 15 Years |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
Popular Features | Height Adjustable |
---|---|
Material | Plastic |
Shape | Square |
---|---|
Finish | Blue |
Style | Modern |
Width (mm) | 600 |
---|---|
Height (mm) | 520 |
Depth (mm) | 265 |
