Features:

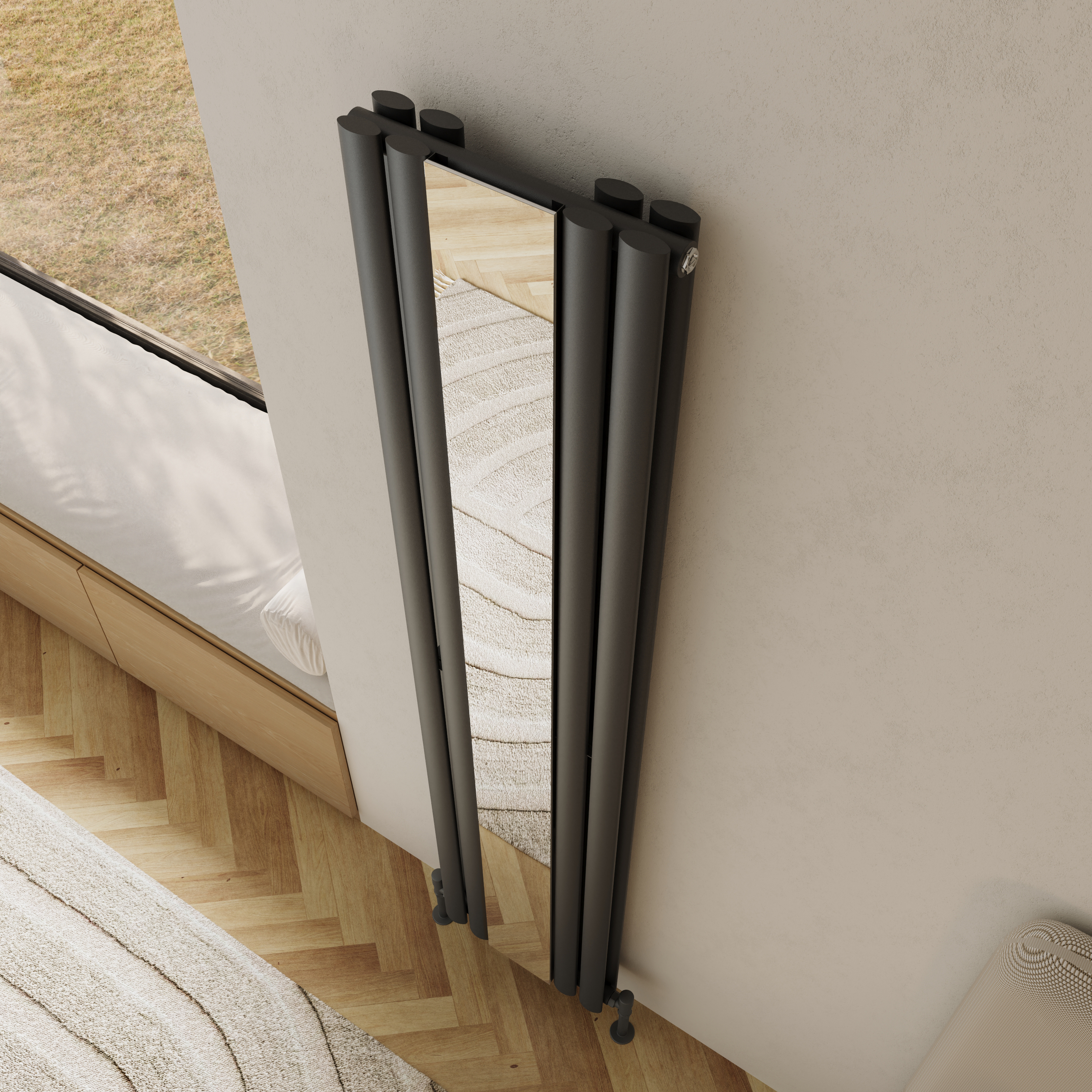

- Tall 1800mm x 380mm design featuring an integrated full-length mirror created to make the most of narrow wall spaces
- Double panel configuration uses two rows of tubes to deliver high heat output from a compact footprint
- Sculpted oval tubes frame the central glass with a soft rounded look that balances the mirror's modern lines
- Textured anthracite finish provides a premium, matt surface that is as durable as it is visually striking
- Crafted from high-grade mild steel to ensure excellent heat conductivity and reliability
- Radiator valves are sold separately, please see our recommended extras
- Fully EN 442 certified and CE/UKCA marked for verified safety and heat ratings you can trust
- Pressure tested at 1.3x to be more than a match for the demands of your home heating system
- Built in an ISO-certified factory with a focus on sustainable production and quality control
- 10 year guarantee
| Product Code | DES-163-AN |
|---|---|
| Type | Designer Radiators, Panel Radiators, Vertical Radiators |
| Brand | Toasty |
| Brand Range | Toasty Echo |
| GuaranteeMore information | 10 Years |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Number of SectionsMore information | 8 Sections |
|---|---|
| Number of Tubes | 8 Tubes |
| Material | Steel |
| Number of ColumnsMore information | Double Panel |
When looking straight on at your radiator, this is the number of individual sections with gaps in between you’ll be able to see. A section can have multiple columns within it, the number of sections relates to how many rows of columns your radiator has.
Columns are the hollow tubes arranged in rows which fill with water to generate heat. The number of columns indicates how many of these tubes your radiator has.
This figure is an indication of depth, not the number of visible columns. For example: a radiator which has 2 columns will have one column in front of the other across the whole radiator.
A higher number of columns means a radiator will have a larger depth measurement and give off more heat than a comparable radiator with fewer columns.
| RAL CodeMore information | 7016 |
|---|---|
| Shape | Oval Panel |
| Mounting Type | Wall Mounted |
| Finish Texture | Matt & Satin |
| Finish | Anthracite |
| Style | Modern |
| Orientation | Vertical |
RAL codes are used to define colours for paints & coatings. The codes are very specific, so two shades of blue will have a completely different RAL code. The codes can be useful if you want to ensure two different products will be a colour match.
Some of our heating products can be purchased in bespoke colours chosen from a selection of RAL codes. If you are interested in this service please contact our sales team here.

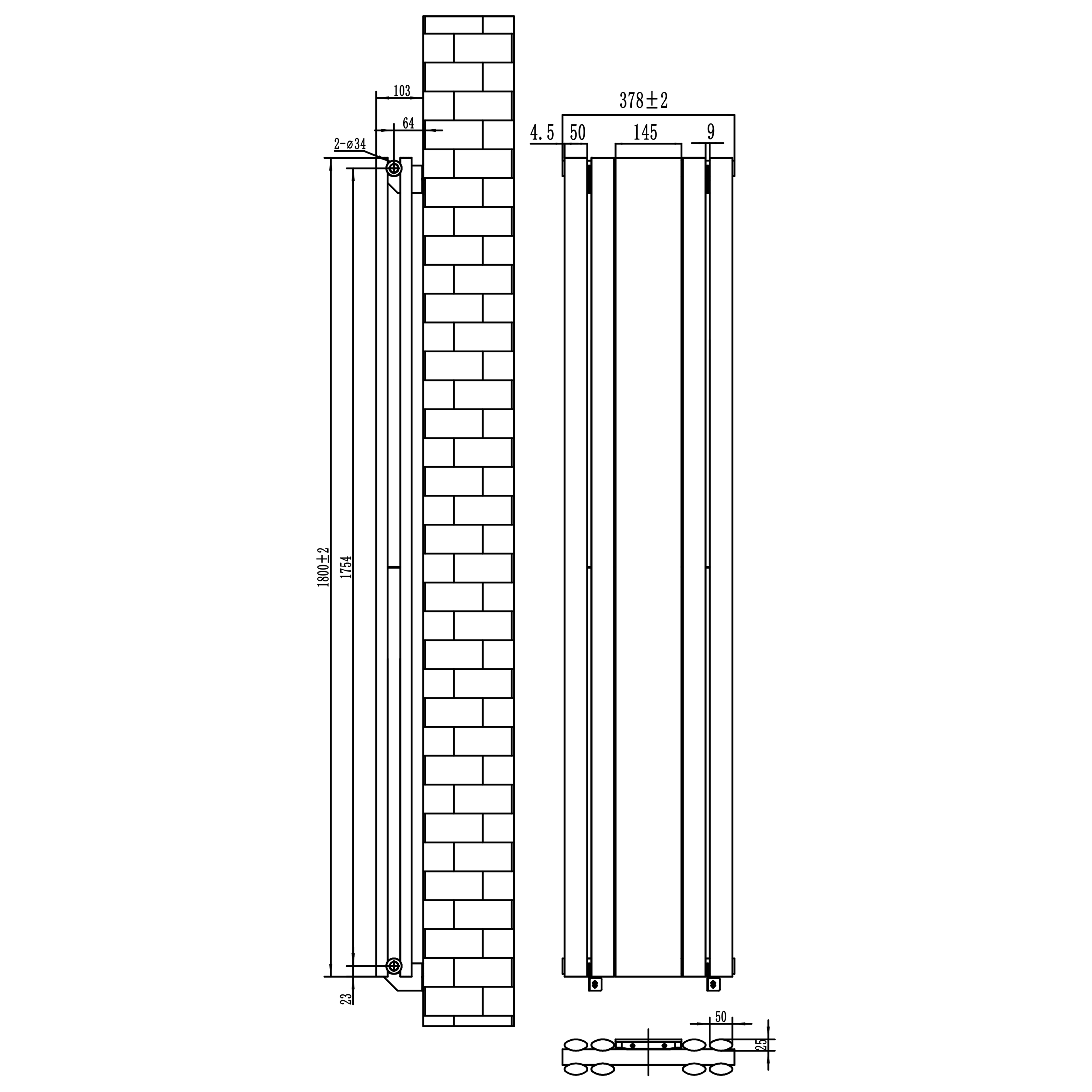

| Wall to Face (mm)More information | 103 |
|---|---|
| Wall to Pipe Centres (mm)More information | 64 |
| Wall Distance (mm)More information | 50 |
| Tube Diameter (mm) | 50 |
| Width (mm) | 378 |
| Height (mm) | 1800 |
| Depth (mm) | 103 |
| Projection (mm) | 103 |
| Pipe Centres (mm)More information | 378 |
Wall to face is the distance from the wall to the furthest point on the front of the radiator. This figure is an indicator of how far your product will protrude into the room.
This measurement will show you how far from the wall the centre of the pipes for your radiator will need to be. It is an indication of how far away the pipe inlets for the radiator need to be from the wall which is useful if you are looking to install a radiator using your existing pipework.
This is a measure of the gap between the back of the radiator and the wall. Wall distance is an indication of how much space there will be behind your radiator.
This is the distance between the centre of the two pipe inlets on your radiator or towel rail. This figure is an indication of where the two pipes for your radiator will need to go and can be helpful if you want to install a radiator using your existing pipes.
| Fuel SourceMore information | Central Heating |
|---|---|
| Heat Output (BTU∆t 50ºC)More information | 2962 |
| Heat Output (Watts∆t 50ºC)More information | 868 |
This is the source of fuel your radiator or towel rail will use to provide heat. Radiators will generate heat through central heating systems, electricity, or a combination of both with dual fuel.
Central Heating:
These radiators will generate heat through the water pumped round your central heating system.
Electric:
Electric radiators contain fluid heated by an electrical element. They plug into a socket or are wired directly into the mains.
Dual Fuel:
Dual fuel radiators are able to run on both central heating and electric power. They contain a ‘summer’ heating element which will allow you to use your radiator in warmer months without needing to turn on your entire central heating system.
BTU (British Thermal Units) is a measure of the heat output of radiators. ∆t 50ºC is the standard output of boilers in the UK & Europe, so this figure is an indication of the heat output (BTU) your radiator will give you at this standard temperature. To find out the BTU you need for rooms in your home, take a look at our BTU Calculator.
Watts is a measure of heat output used for electric radiators, with a higher watt figure meaning a higher heat output. Purchasing a radiator that has the correct wattage will ensure your room will be at a comfortable temperature without wasting energy.
By using our BTU Calculator,you can calculate the number of watts your radiator needs to adequately heat your room.
