The Carisa Elvino mirror radiator is perfect for anyone wanting to save space without compromise. It heats your room quickly while doubling as a full-length mirror, making it ideal for bathrooms, dressing rooms, and other spaces where every inch counts. The integrated bar offers practicality when you need it and a clean, stylish accent when you don’t. Built from premium aluminium, it’s as energy efficient as it is eye-catching.
Features:
Mirror dimensions:
Features:
- A striking radiator with an integrated full-length mirror, perfect for bathrooms, dressing rooms, and other areas where maximising space matters
- Made from premium aluminium for fast, energy-efficient heating, reduced water content, and simpler installation thanks to its lightweight design
- Delivers a high heat output to comfortably heat medium-sized rooms, use our BTU Calculator to check the heat requirement for your space
- Features a practical front bar with matching side trims in textured white or textured black, perfect for hanging towels or clothing
- Crafted from rust-resistant aluminium, this material offers exceptional longevity and strength while remaining 100% recyclable at the end of its lifespan
- Tested to BS EN 442 (ΔT70) standards for certified quality, performance, and safety
- Compatible with all standard central heating systems
- Supplied with wall brackets and fixings for straightforward installation
- Radiator valves sold separately, please see recommended extras
- 5 year manufacturer’s guarantee
Mirror dimensions:
- Height: 1800
- Width: 370mm
 Technical Specifications
|
|---|
| Product Code | carisa-elvino-mirror-towel-rad |
|---|---|
| Type | Vertical Radiators |
| Brand | Carisa |
| Brand Range | Carisa Elvino |
| Guarantee |
5 Years |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Material | Aluminium |
|---|
| Shape | Flat Panel |
|---|---|
| Mounting Type | Wall Mounted |
| Style | Modern |
| Orientation | Vertical |
| RAL Code | Select an option first |
| Finish Texture | Select an option first |
| Finish | Select an option first |

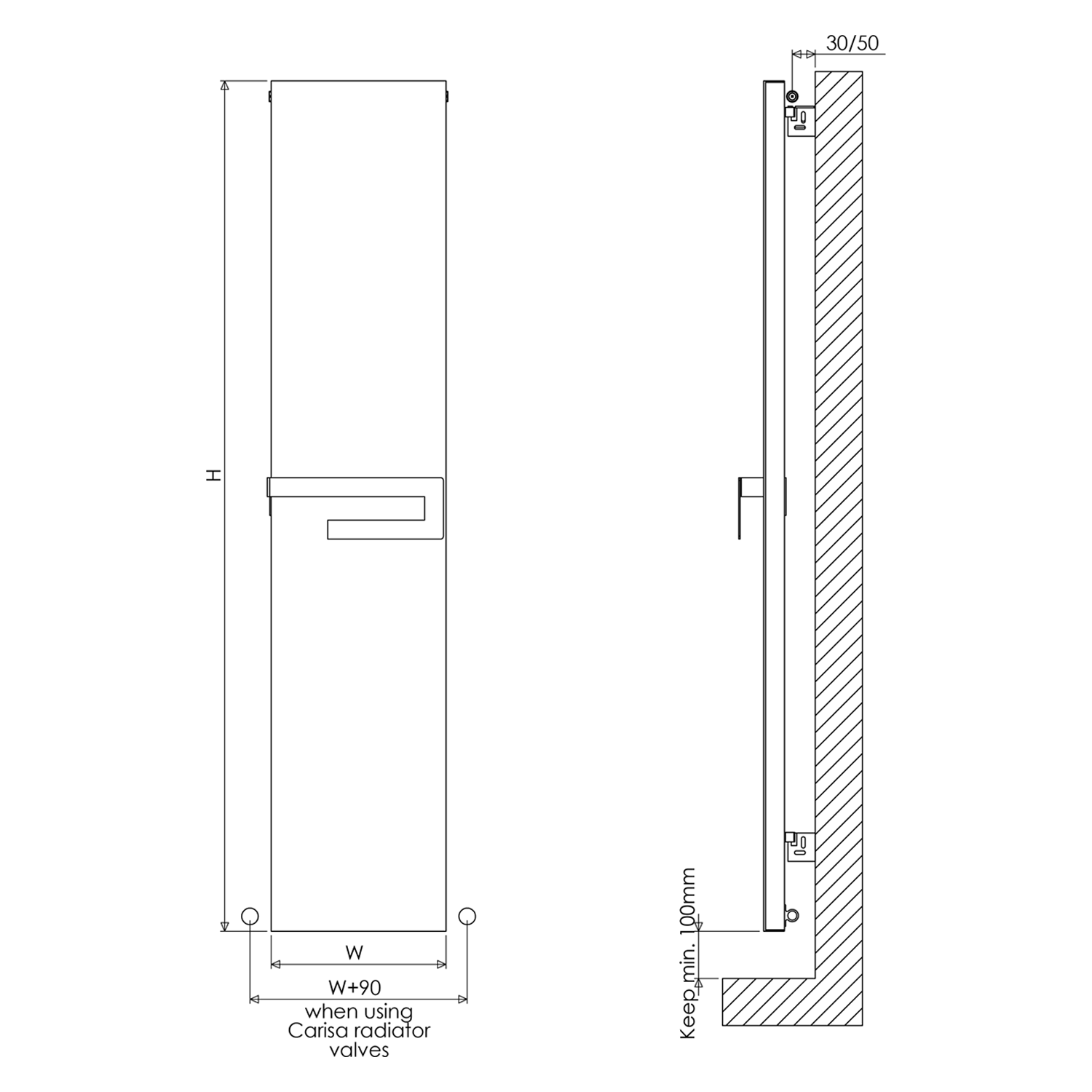

| Pipe Centres (mm) |
370 + valves |
|---|---|
| Wall to Face (mm) |
142 |
| Wall to Pipe Centres (mm) |
30 |
| Wall Distance (mm) |
9 |
| Width (mm) | 370 |
| Height (mm) | 1800 |
| Depth (mm) | 142 |
| Projection (mm) | 142 |
| Inlet Location | Side |
Pipe centres are measured between the centres of the two heating pipes connecting to your radiator valves. For side connection radiators, valve dimensions vary by model and can affect the final distance required. Please account for your chosen valve measurements when planning installation.
Wall to face is the distance from the wall to the furthest point on the front of the radiator. This figure is an indicator of how far your product will protrude into the room.
This measurement will show you how far from the wall the centre of the pipes for your radiator will need to be. It is an indication of how far away the pipe inlets for the radiator need to be from the wall which is useful if you are looking to install a radiator using your existing pipework.
This is a measure of the gap between the back of the radiator and the wall. Wall distance is an indication of how much space there will be behind your radiator.
| Fuel Source |
Central Heating |
|---|---|
| Heat Output (BTU∆t 50ºC) | Select an option first |
| Heat Output (Watts∆t 50ºC) | Select an option first |
| Heat Output (BTU∆t 30ºC) | Select an option first |
| Heat Output (Watts∆t 30ºC) | Select an option first |
This is the source of fuel your radiator or towel rail will use to provide heat. Radiators will generate heat through central heating systems, electricity, or a combination of both with dual fuel.
Central Heating:
These radiators will generate heat through the water pumped round your central heating system.
Electric:
Electric radiators contain fluid heated by an electrical element. They plug into a socket or are wired directly into the mains.
Dual Fuel:
Dual fuel radiators are able to run on both central heating and electric power. They contain a ‘summer’ heating element which will allow you to use your radiator in warmer months without needing to turn on your entire central heating system.
